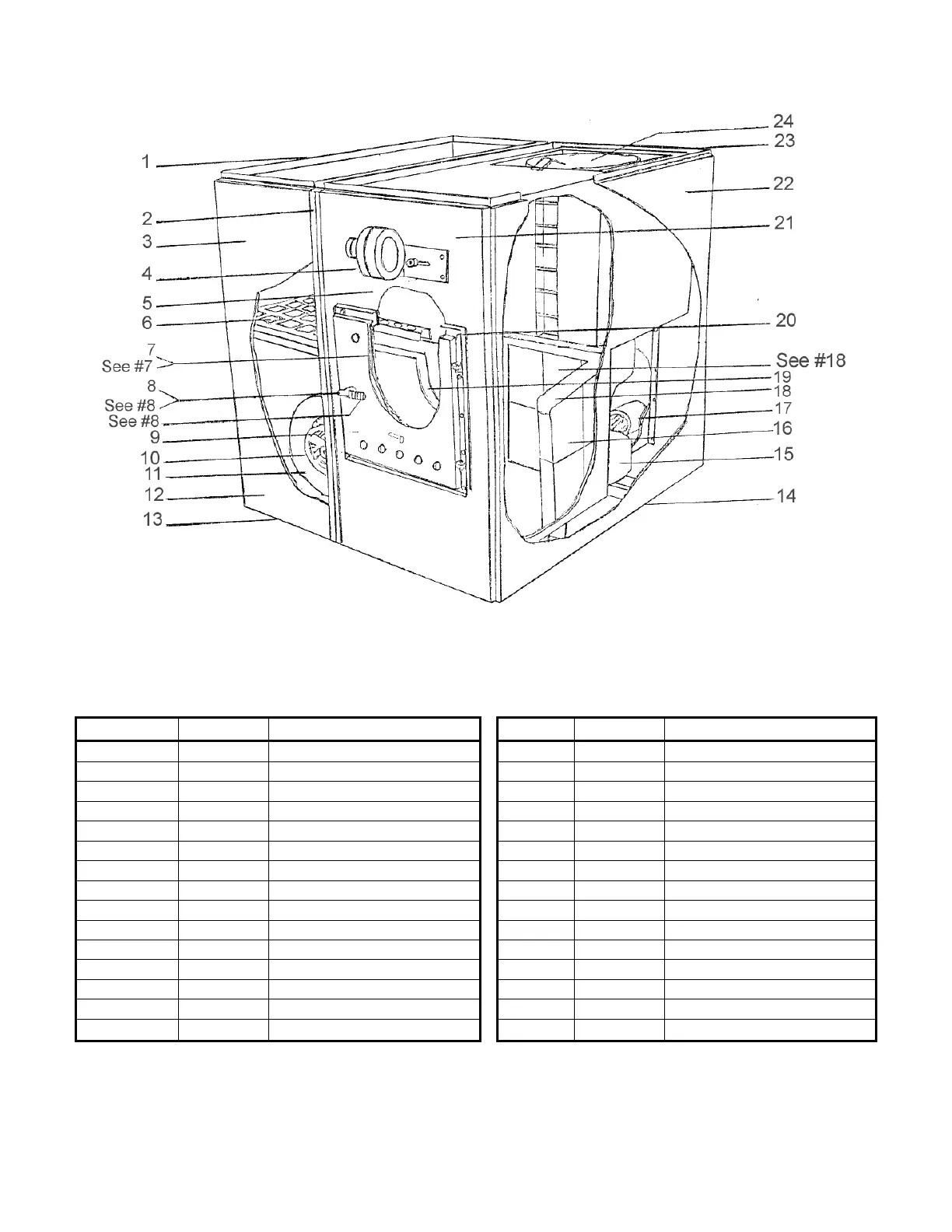

FIG. 17-1A - CL115-170C WOOD/OIL COMBINATION FURNACE ASSEMBLY
FIG. 17-1B - PARTS LIST – CL115-170C
ITEM NO PART NO DESCRIPTION ITEM NO PART NO DESCRIPTION
1 4120202 Blower Section Side Panel 16 5110003 Straight Brick 2 ½” X 4 ½” X 9” (Box of 10)
2 4120312 Fan Partition Panel 17 5400047 Aero Burner
3 4120305 Blower Section Small Panel 17 2110128 Beckett Burner
4 2040001 50 CFM Draft Fan 18 4060101 Brick Loc
5 5300012 Slide Plate Assembly 19 4060114 Firedoor Air Chute
6 2180003 Filter 20" X 25" X 1" 20 2080009 Front Gasket
7 5300007 Firedoor Gasket Set 21 4120116 Furnace Section Front Panel
8 5300009 Firedoor Handle Complete 22 4120213 Furnace Section Side Panel
9 5300002 Firedoor Set Complete 23 4120103 Furnace Section Back Panel
10 2240003 Blower Pulley 8” X ¾” 24 4060134 Heat Exchanger
11 2040104 10” Air Circulating Twin Blower
12 4120322 Blower Section Access Panel
13 4120402 Blower Section Base Panel
14 4120409 Furnace Section Base Panel
15 2030001 Corbel Combustion Chamber
