30

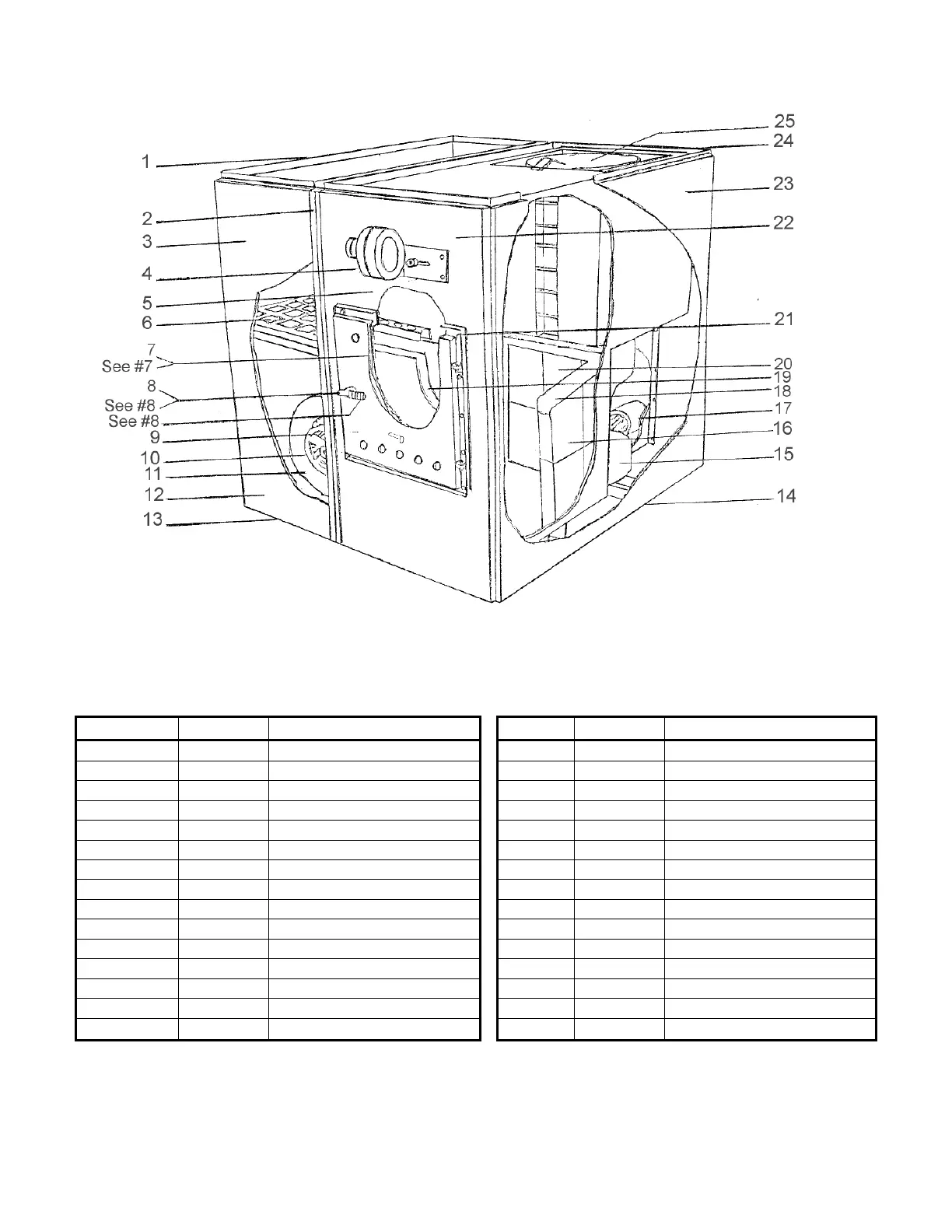

FIG. 17-2A - CL86-96C WOOD/OIL COMBINATION FURNACE ASSEMBLY
FIG. 17-2B - PARTS LIST – CL86-96C
ITEM NO PART NO DESCRIPTION ITEM NO PART NO DESCRIPTION
1 4120203 Blower Section Side Panel 16 5110003 Straight Brick 2 ½” X 4 ½” X 9” (Box of 10)
2 4120314 Fan Partition Panel 17 5400048 Aero Burner
3 4120315 Blower Section Small Panel 17 2110126 Beckett Burner
4 2040001 50 CFM Draft Fan 18 4060106 Brick Loc
5 5300012 Slide Plate Assembly 19 4060171 Firedoor Air Chute
6 2180002 Filter 16" X 25" X 1" 20 5110006 Split Brick 1 ¼” X 4 ½” X 9” (Box of 6)
7 5300005 Firedoor Gasket Set 21 2080001 Front Gasket
8 5300009 Firedoor Handle Complete 22 4120120 Furnace Section Front Panel
9 5300001 Firedoor Set Complete 23 4120218 Furnace Section Side Panel
10 2240003 Blower Pulley 8” X ¾” 24 4120104 Furnace Section Back Panel
11 2040105 9” Air Circulating Twin Blower 25 4060143 Heat Exchanger
12 4120323 Blower Section Access Panel
13 4120403 Blower Section Base Panel
14 4120414 Furnace Section Base Panel
15 2030004 Corbel Combustion Chamber
