31

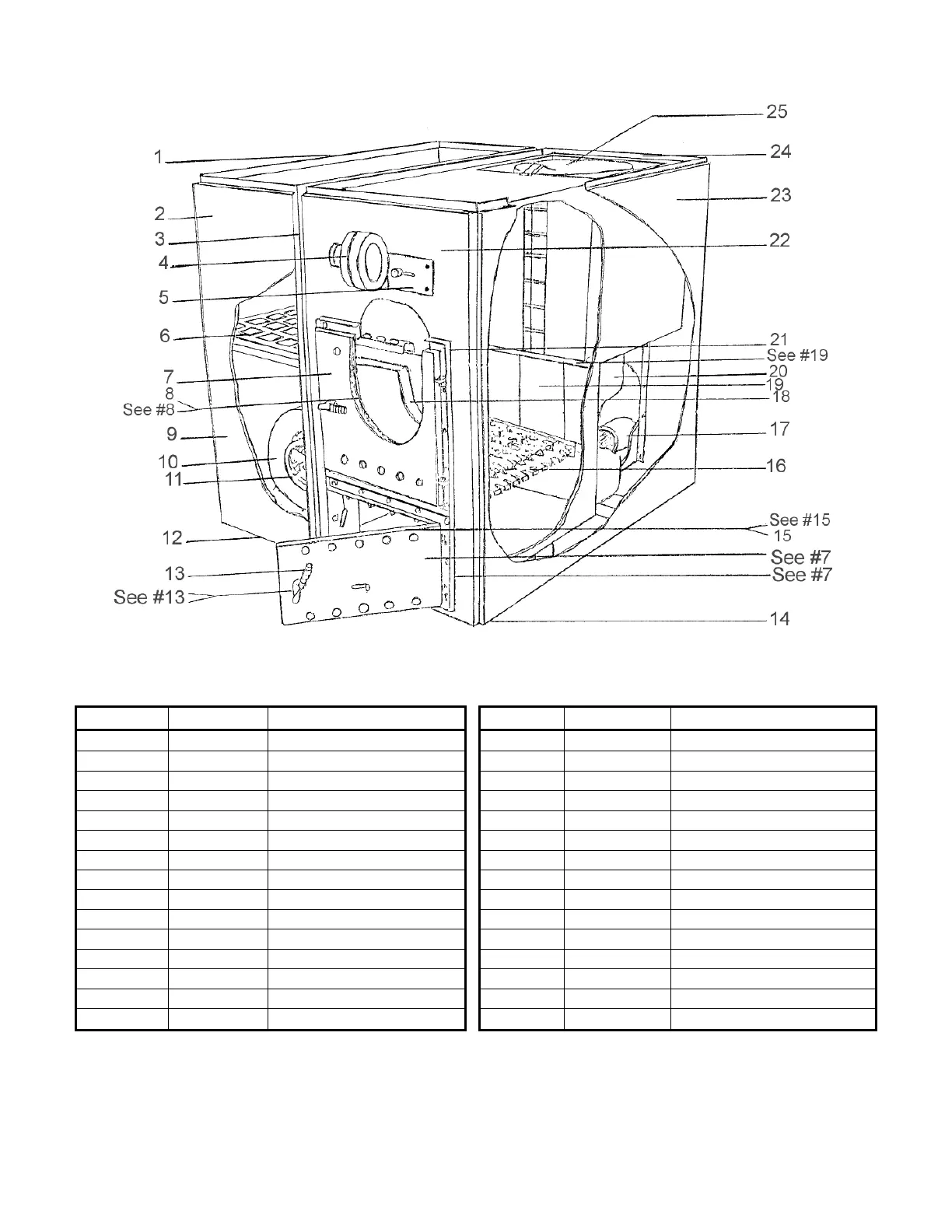

FIG. 17-3A - CL115-170G WOOD/OIL COMBINATION FURNACE ASSEMBLY
FIG. 17-3B - PARTS LIST – CL115-170G
ITEM NO PART NO DESCRIPTION ITEM NO PART NO DESCRIPTION
1 4120202 Blower Section Side Panel 16 2170007 Cast Grate
2 4120305 Blower Section Small Panel 17 5400047 Aero Burner
3 4120312 Fan Partition Panel 17 2110128 Beckett Burner
4 2040002 100 CFM Draft Fan 18 4060116 Firedoor Air Chute
5 5300012 Slide Plate Assembly 19 2170009 Cast Liner
6 2180003 Filter 20" X 25" X 1" 20 2030001 Corbel Combustion Chamber
7 5300003 Firedoor/Ashdoor Set Complete 21 2080020 Front Gasket
8 5300007 Firedoor Gasket Set Complete 22 4120117 Furnace Section Front Panel
9 4120322 Blower Section Access Panel 23 4120213 Furnace Section Side Panel
10 2040104 10” Air Circulating Twin Blower 24 4120103 Furnace Section Back Panel
11 2240003 Blower Pulley 8” X ¾” 25 4060138 Heat Exchanger
12 4120402 Blower Section Base Panel 4060128 Ash Pan
13 5300009 Firedoor Handle Complete 3090183 Grate Plate
14 4120409 Furnace Section Base Panel
15 5300008 Ashdoor Gasket Set Complete
