32

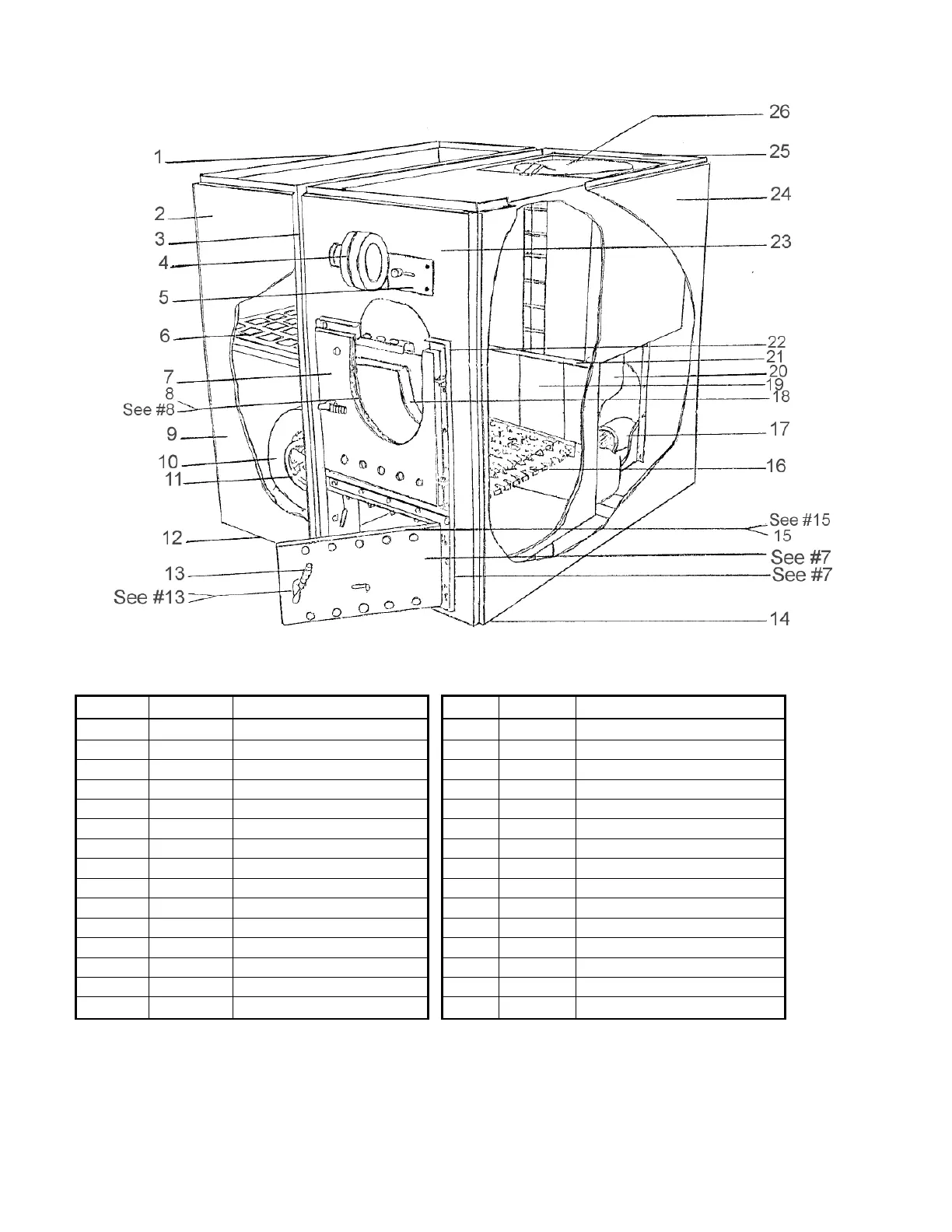

FIG. 17-4A - CL86-96G WOOD/OIL COMBINATION FURNACE ASSEMBLY
FIG. 17-4B - PARTS LIST – CL86-96G
ITEM NO PART NO DESCRIPTION ITEM NO PART NO DESCRIPTION
1 4120203 Blower Section Side Panel 16 2170007 Cast Grate
2 4120315 Blower Section Small Panel 17 5400048 Aero Burner
3 4120314 Fan Partition Panel 17 2110126 Beckett Burner
4 2040001 50 CFM Draft Fan 18 4060118 Firedoor Air Chute
5 5300012 Slide Plate Assembly 19 5110006 Split Brick 1 ¼" X 4 ½" X 9" (Box of 6)
6 2180002 Filter 16" X 25" X 1" 20 2030004 Corbel Combustion Chamber
7 5300004 Firedoor/Ashdoor Set Complete 21 4060106 Brick Loc
8 5300005 Firedoor Gasket Set Complete 22 2080016 Front Gasket
9 4120323 Blower Section Access Panel 23 4120119 Furnace Section Front Panel
10 2040105 9” Air Circulating Twin Blower 24 4120218 Furnace Section Side Panel
11 2240003 Blower Pulley 8” X ¾” 25 4120104 Furnace Section Back Panel
12 4120403 Blower Section Base Panel 26 4060142 Heat Exchanger
13 5300009 Firedoor Handle Complete 4060127 Ash Pan
14 4120414 Furnace Section Base Panel 5110003 Straight Brick 2 ½” X 4 ½” X 9” (Box of 10)
15 5300006 Ashdoor Gasket Set Complete 3090182 Grate Plate
