5 CONFIGURABLE DIRECTIVITY DEVICE
The GEO Wavesource controls dispersion of acoustic energy using a hyperboloid acoustical reflector in
the “coupling plane” (the vertical plane of a curved vertical tangent array) and a diffraction slot in the “non-
coupling plane” (the horizontal plane of a curved vertical tangent array). The patented Configurable
Directivity Device consists of flanges that alter the diffraction slot’s exit flare rate.

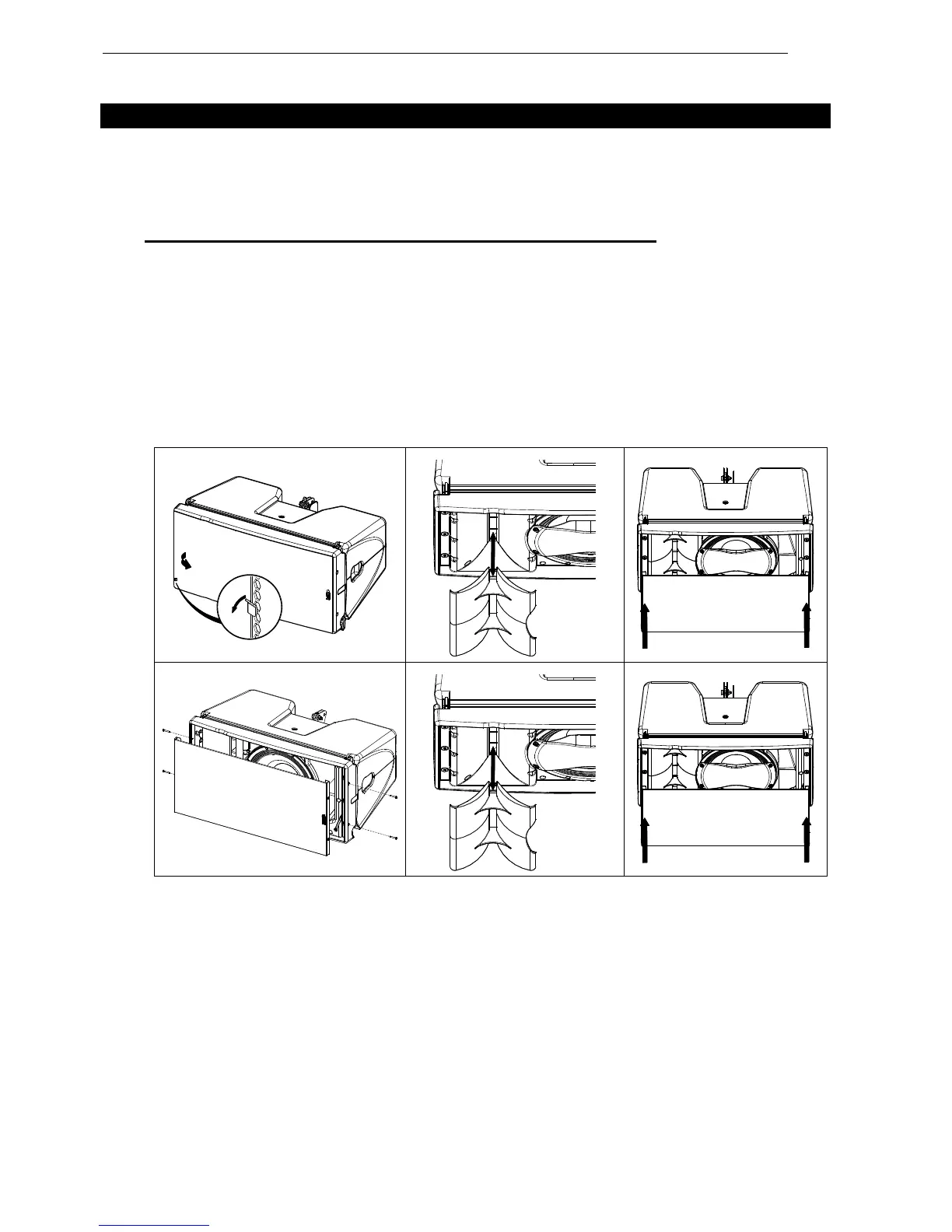

5.1 Installing & removing GEO’s Configurable Directivity Devices
GEO M12 are shipped in the 80° dispersion configuration, 120° CDD
TM
flanges are an optional accessory
(GMT-FLGM12).
To change horizontal dispersion from 80° to 120° and vice-versa:
- Pull the lever to remove the grille on the side on touring version
- Or unscrew the 4 Tx25 to remove the grille on installation version
- Position the CDD
TM
flanges on (or remove them from) the waveguide output magnetic clips;
- Reinstall the grille and lock it with the lever (touring version) or the screws (installation version)
