GEO M12 HARDWARE SETUP PROCEDURE Page 41/90

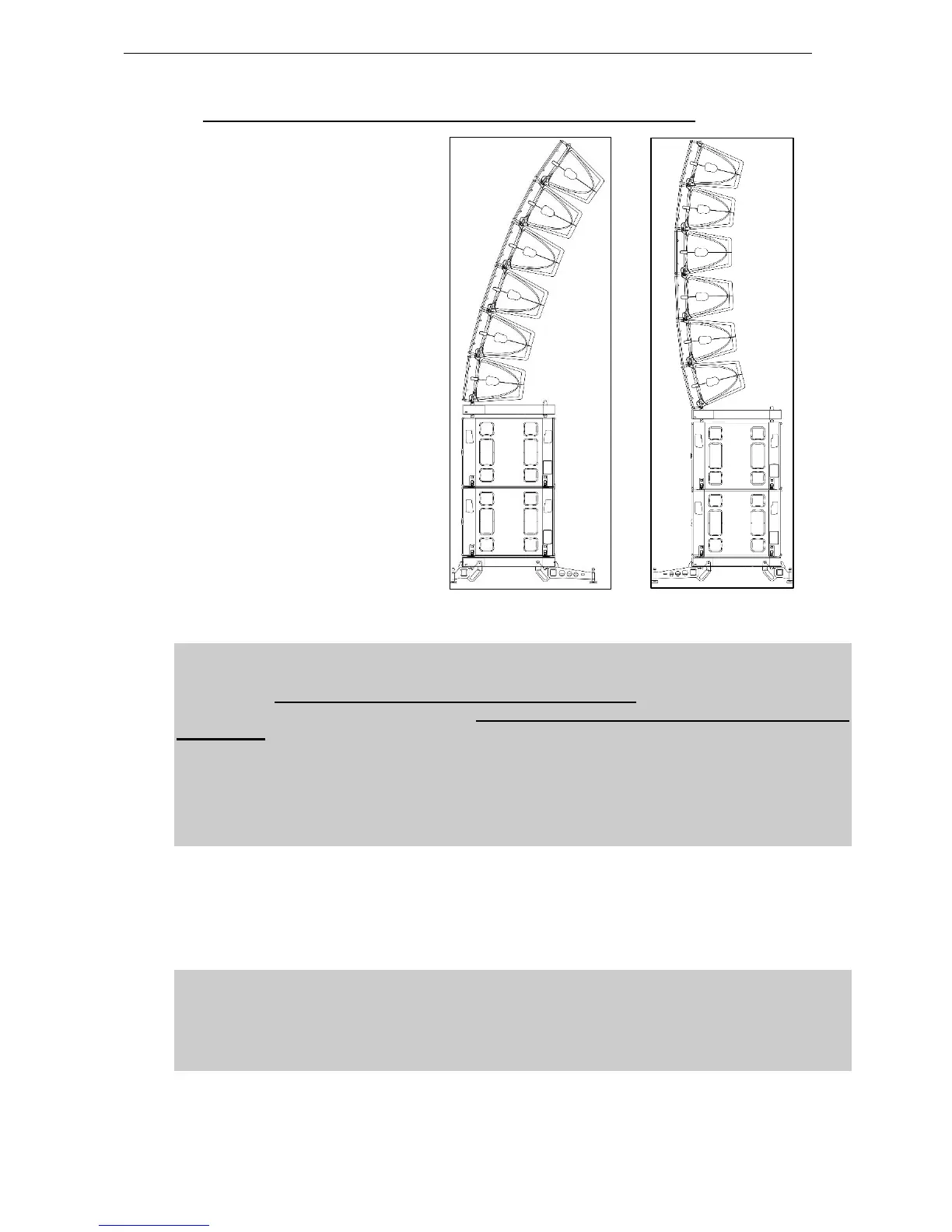

6.3.5 MSUB18 and GEO M12 on Touring Bumper with stacking extensions
Required item
- 2 x VNT-BUMPM12
- 1 x VNT-GSTKM10M12S
- 1 x VNT-GSTKM10M12L
IMPORTANT
Ground stack assembly VNT-BUMPM12 + VNT-GSTKM10M12S + VNT-GSTKM10M12L is
rated for a maximum of 2 x MSUB18 + 6 x GEO M12 in any inter cabinet angle
configuration with +/-12° initial angle, provided this device is assembled according to
below rules:
- VNT-BUMPM12 must be adjusted to be horizontal
- Public is not allowed within a safety area which radius is equal or higher than
assembly height.
- It is highly recommended to secure the system to a fix point located at the back of the
stack.
Procedure
- Set the bumper on the ground so that front with front direction indicated by side arrows
- Insert VNT-GSTKM10M12L and/or VNT-GSTKM10M12S guides into bumper front and rear center
slots
IMPORTANT
- If bottom GEO M12 initial angle is negative, VNT-GSTKM10M12L must be connected
at the front and VNT-GSTKM10M12S at the back
- If bottom GEO M12 initial angle is positive, VNT-GSTKM10M12S must be connected
at the front and VNT-GSTKM10M12L at the back
To Next Page
