Page 42/90 GEO M12 HARDWARE SETUP PROCEDURE

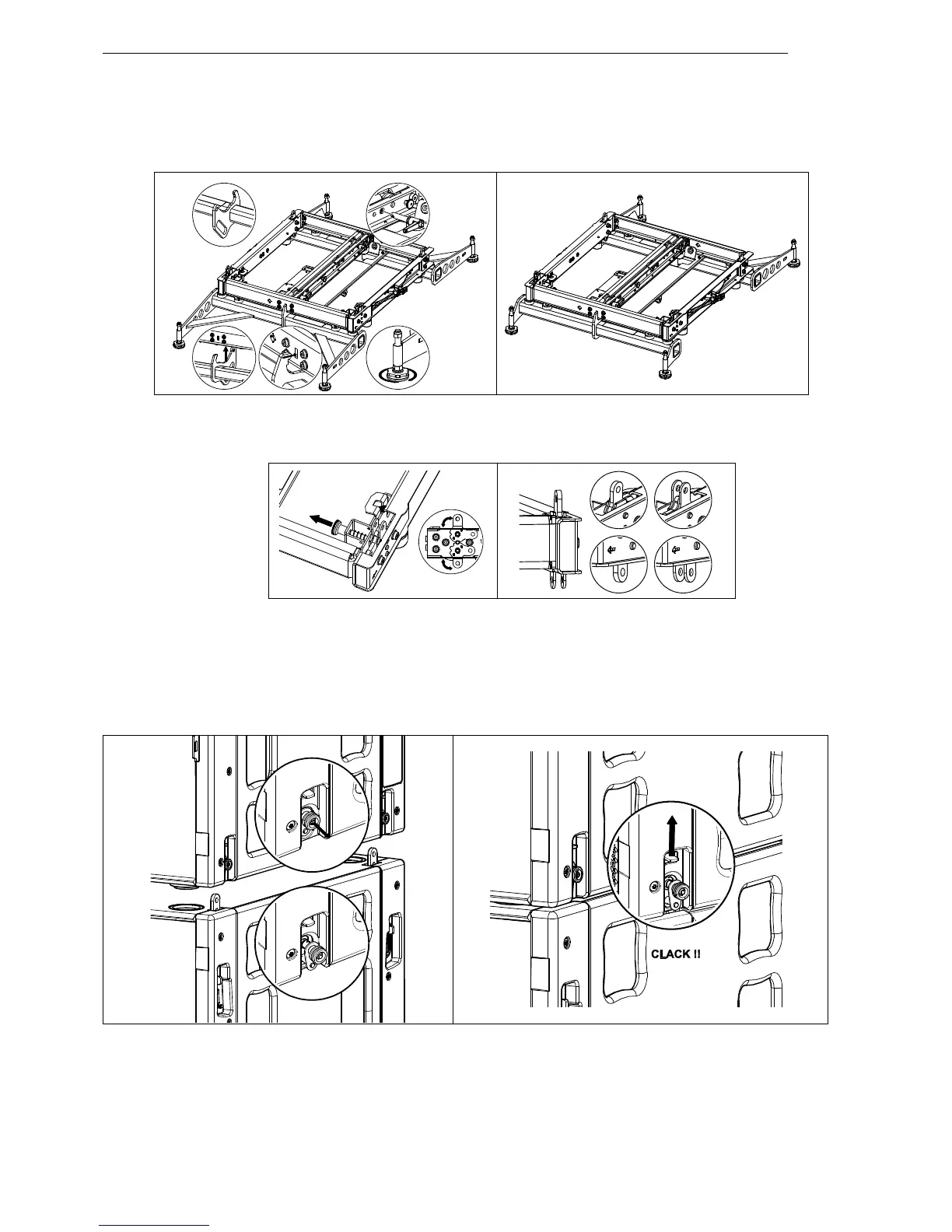

- Lock VNT-GSTKM10M12L and/or VNT-GSTKM10M12S into bumper with VNT-BUMPM12 quick
release pin 1240.
- Adjust feet height so that bumper is horizontal
- Pull the bumper front latches, rotate the upper links so that connection points are single leg and
release the latches.
- Align first MSUB18 on top of VNT-BUMPM12, and lock them by releasing front and rear MSUB18
bottom latches connecting points
- Unlock the 4 MSUB18 upper connecting points
- Align second MSUB18 on top of first, and lock them by releasing front and rear upper MSUB18
latches connecting points
