GEO M12 HARDWARE SETUP PROCEDURE Page 37/90

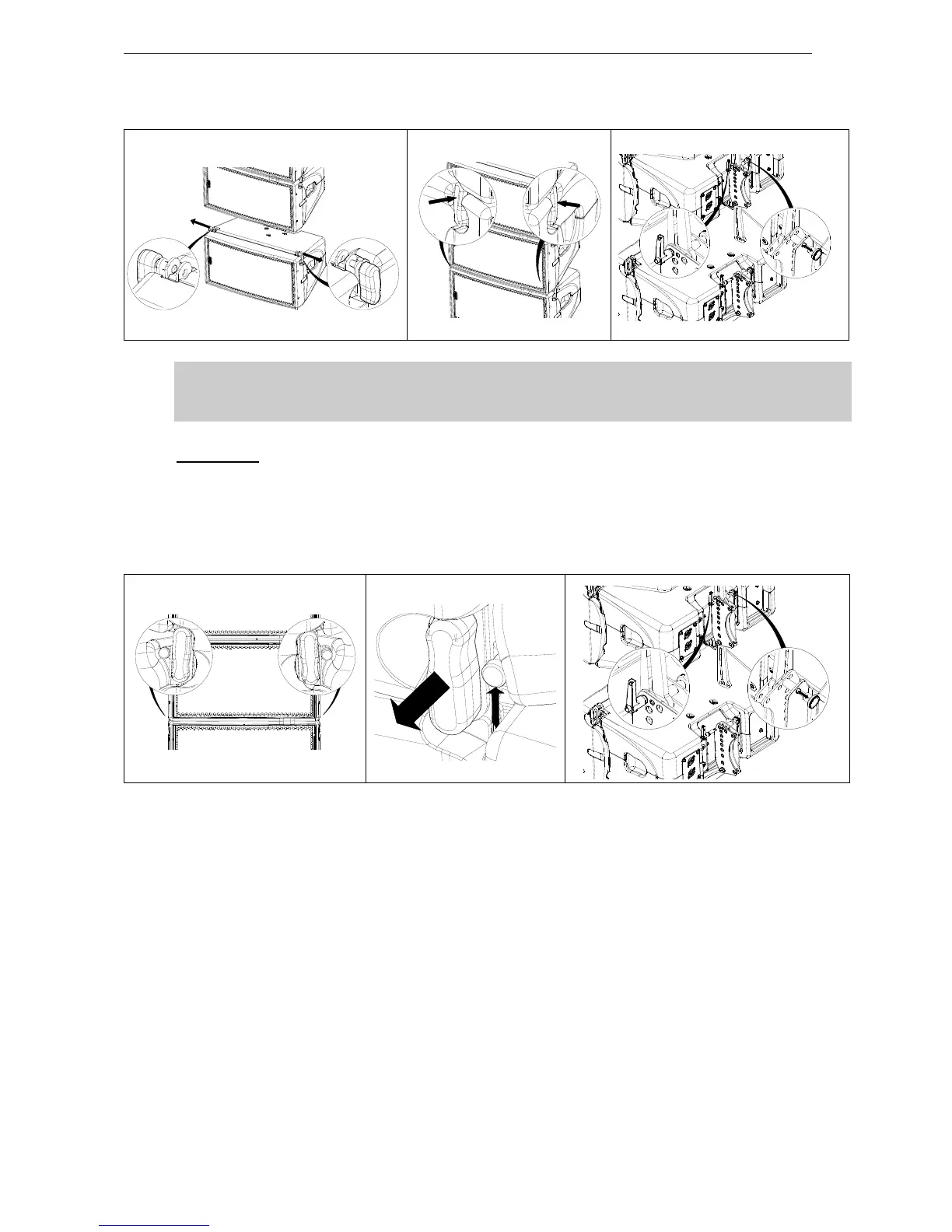

- Connect subsequent GEO M12 cabinets as with second.
IMPORTANT
Ensure that bumper quick release pins are properly locked into GEO M12, and that all
AutoRig
TM
and rear pins are locked
Disassembly
- On both side, pull AutoRig
TM
and hold the side knob (AutoRig
TM
remains in the open position).
- Remove the rear quick release pin BL820
- Unlock the GEO M12 link bar by pulling the latch.
- Disassemble GEO M12s
