GEO S12 HARDWARE SETUP PROCEDURE
Page 32 / 95 System Manual GEOS12 LS18

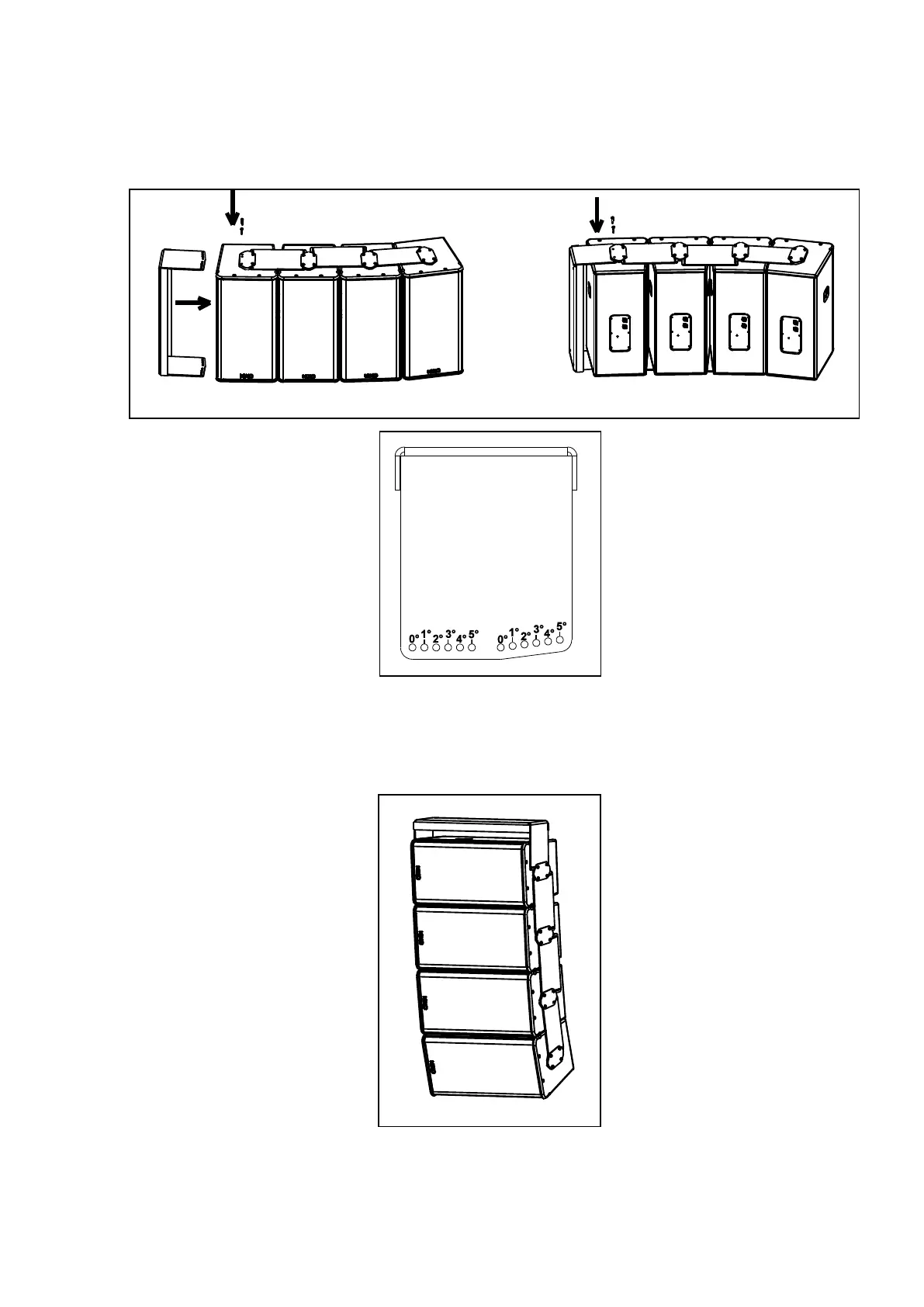

- Use thread lock coated screws (or if not apply Loctite 243 or equivalent to four shoulder screws) from the last GPI-ANPL
kit
- Position the GPI-BUMPER bumper to required angle position and use the four shoulder screws to connect it the bumper to
the top cabinet
- Flip GEO S12 cluster by 90° so that it is ready to be positioned under the ceiling
- Four screws 12mm diameter (not provided) are required to secure the bumper under the ceiling
