GEO S12 HARDWARE SETUP PROCEDURE
System Manual GEOS12 LS18 Page 55 / 95
6.4.9 Ground stacked LS18 and GEO S12
Required items
- M x pairs of LS rigging plates (LST-XBOW) for M x LS18 cabinets
- N x Pair of Rigging Plates (GPT-XBOW) for N GEO S12 cabinets
- 1 x ground stack device (GPT-GSTK)
- 4 x N Quick release pins (VXT-BL820) for N cabinets
IMPORTANT
Ground stack device GPT-GSTK is rated for a maximum of:
6 x GEO S1210 or 2 x LS18 + 4 x GEO S1210 or 4 x LS18
in any inter cabinet angle configuration, provided this device is assembled according to below rules:
- Ground stack device GPT-GSTK must always be installed on a horizontal surface
- Bottom GEO S12 tilt angle must be limited to +/-10°
Ensure that public is not allowed within a safety area which radius is equal or higher than assembly height.
It is highly recommended to secure the system to a fix point located at the back of the stack.
Procedure

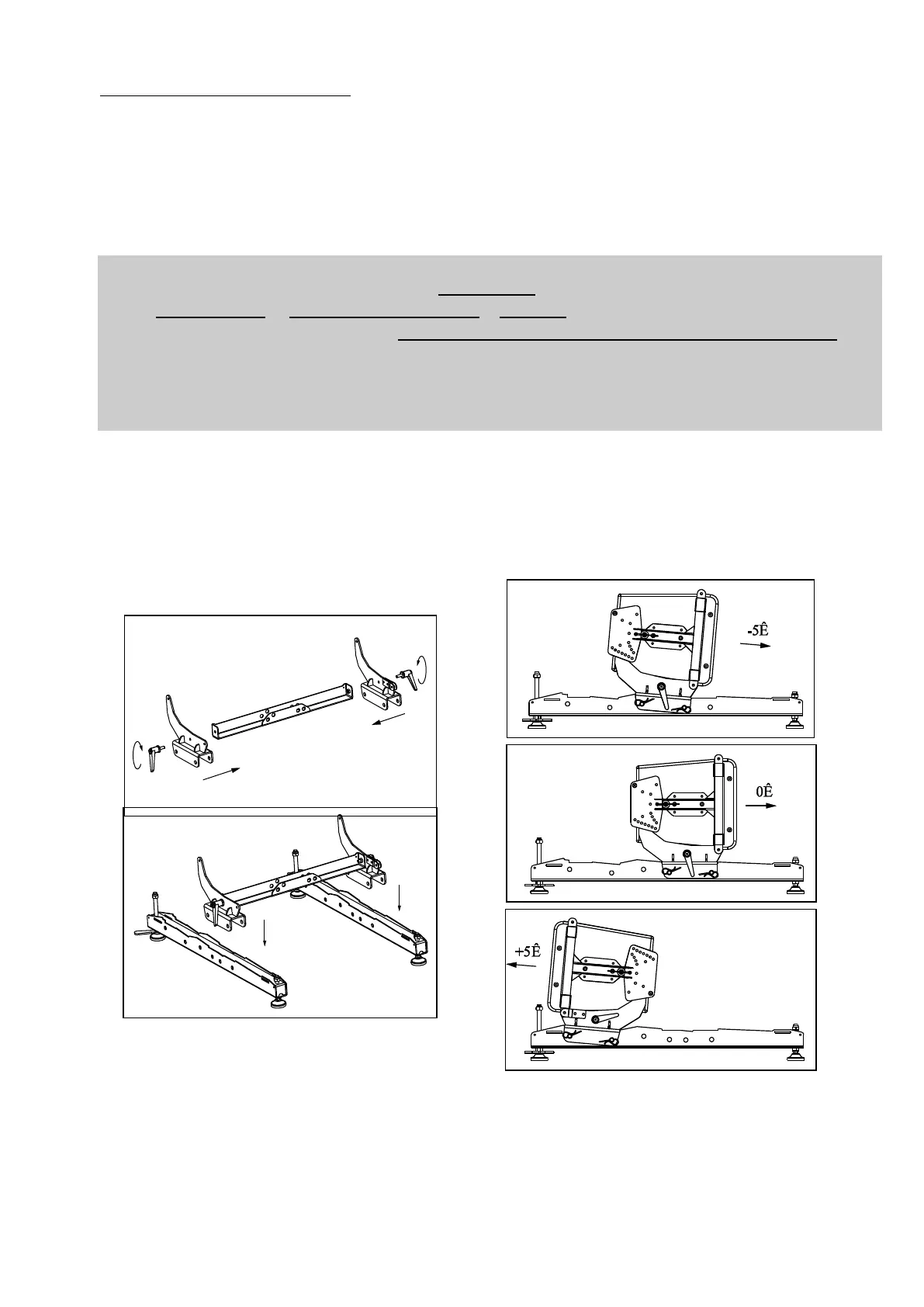

- Assemble the two connecting beam and the reinforcement beam with the handles
- Depending on tilt angle – negative, null or positive - to be achieved, there are three positions to connect above assembly
to the supporting beams; below drawings detail these configurations:
To Next Page
