GEO S12 HARDWARE SETUP PROCEDURE
Page 56 / 95 System Manual GEOS12 LS18

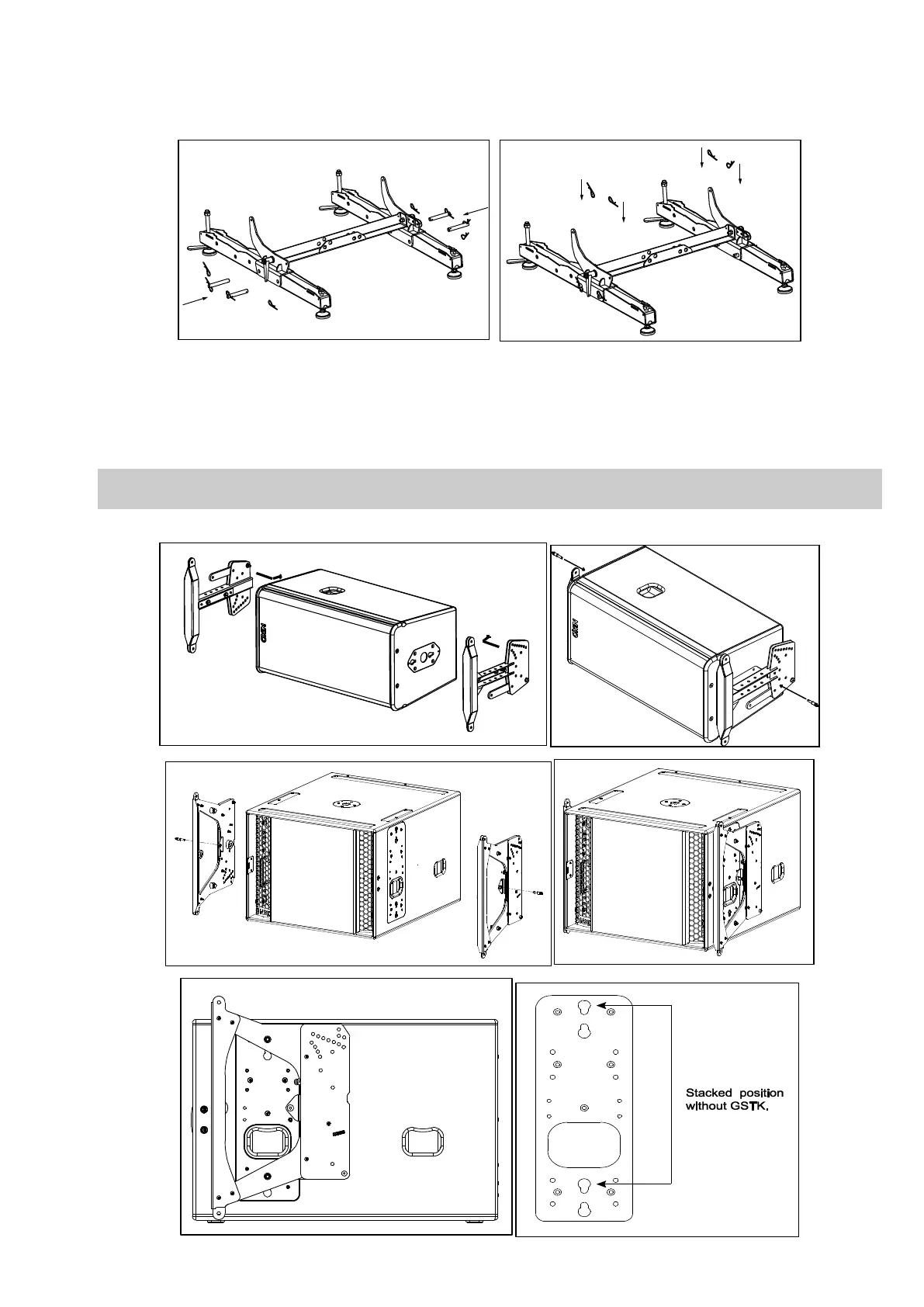

- Connect the reinforcement bar to the supporting beams according to required tilt angle configuration using 2 axis per side;
secure the axis with provided “R” clips
- Insert GPT-XBOW into connecting plates of both sides GEO S12s
- Insert LST-XBOW into connecting plates of LS18s
- Lock safety pins into LS18s and GEO S12s connecting plate
IMPORTANT
Ensure that safety pins are properly locked into LS18s and GEO S12s connecting panels.
