GEO S12 HARDWARE SETUP PROCEDURE
Page 36 / 95 System Manual GEOS12 LS18
6.3.7 GEO S12 horizontal array rigidly mounted on a ceiling
Required items
- 2 x VNI-ABRK (allows rigid ceiling suspension for horizontal arrays)
- (N-1) x GPI-ANPL for a N x GEO S12 array (ANPL1 ranges from 0.2° to 3.15°, ANPL2 ranges from 5° to 10°, ANPL3 ranges
from 16° to 30°)
- 4 x 12mm diameter screws (not provided)
IMPORTANT
Ensure that the ceiling is strong enough to hold 4 times GEO S12 cluster weight and that the four screws
12mm diameter and corresponding plugs required to fix the “L” brackets under the ceiling are properly
dimensioned.

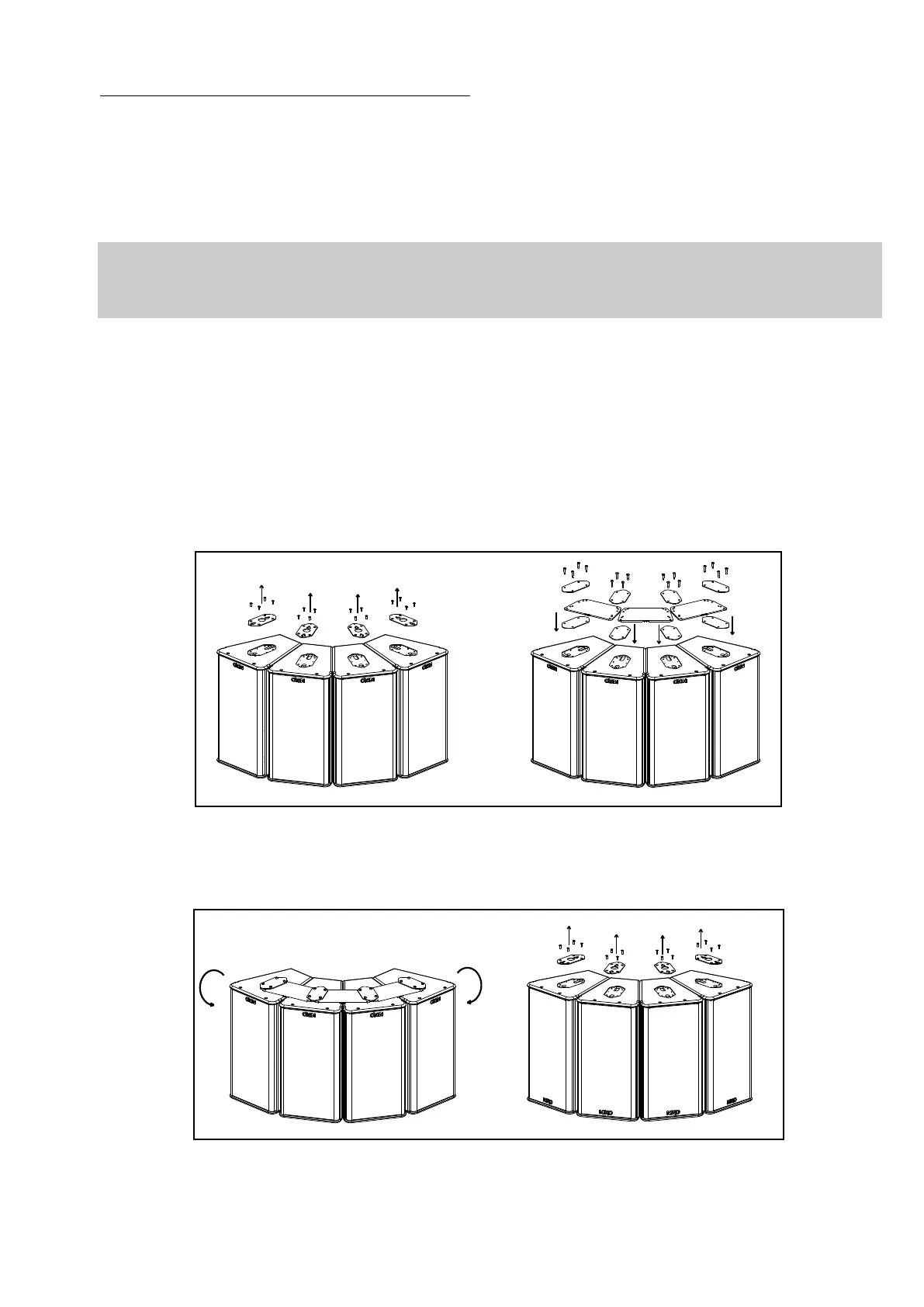

Procedure
- Set all GEO S12 side by side
- Remove the four TORX screws holding connector plates on upper side of all GEO S12’s
- Remove the connector plates from all Geo S12’s
- Position bottom external plates, angle plates and top external plate from GPI-ANPL kits to required inter-cabinet angle value
between cabinets upper sides
- Use thread lock coated screws (if not apply Loctite 243 or equivalent to shoulder screws) from GPI-ANPL kits
- Screw all shoulder screws so that all plates and cabinets are tightened together
- Flip the cluster upside down to access connector plates located on the down side
- Repeat all above steps
