GEO S12 HARDWARE SETUP PROCEDURE
Page 38 / 95 System Manual GEOS12 LS18

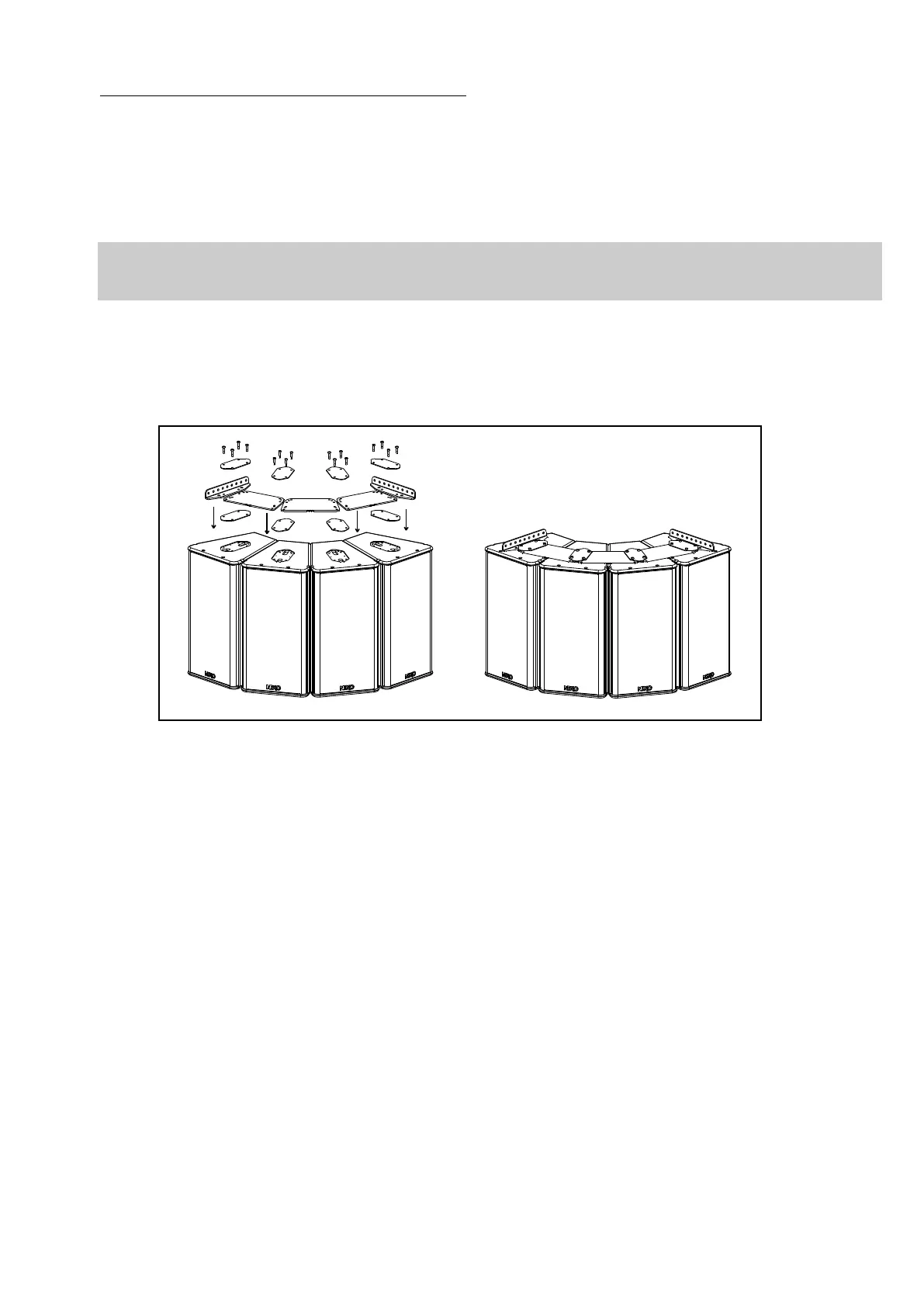

6.3.8 GEO S12 horizontal array cable mounted on a ceiling
Required items
- 2 x VNI-ABRK (allows cable suspension for horizontal arrays, holes for cable suspension are 10mm diameter)
- (N-1) x GPI-ANPL for a N x GEO S12 array (ANPL1 ranges from 0.2° to 3.15°, ANPL2 ranges from 5° to 10°, ANPL3 ranges
from 16° to 30°)
- 4 x slings and 4 shackles (not provided)
IMPORTANT
Ensure that the ceiling is strong enough to hold 4 times GEO S12 cluster weight and that that the cables
suspension system required to fix the cluster under the ceiling is properly dimensioned.
Procedure
- Proceed as in above section, VNI-LBRK being positioned on the outer cabinets instead of VNI-ABRK
- 4 slings and 4 shackles (not provided) are required to secure the cluster under the ceiling
