GEO S12 HARDWARE SETUP PROCEDURE
System Manual GEOS12 LS18 Page 51 / 95
6.4.8 LS18 and three or more GEO S12 flown vertically
Required items
- 1 x Bumper (GPT-BUMPER)
- M x pairs of LS rigging plates (LST-XBOW) for M x LS18 cabinets
- N x Pair of Rigging Plates (GPT-XBOW) for N GEO S12 cabinets
- 4 x (N+M) Quick release pins (VXT-BL820) for (N+M) cabinets
- 1 hoist (not provided)
IMPORTANT
Maximum GEO S12 quantity for flown vertical cluster is 12 (and eventually less).
Maximum LS18 quantity for flown vertical cluster is 6 (and eventually less)
Please check NS-1 for mechanical Safety Working Load computations.
IMPORTANT
Please check configuration in NS-1 for proper motor hoist rating
Procedure

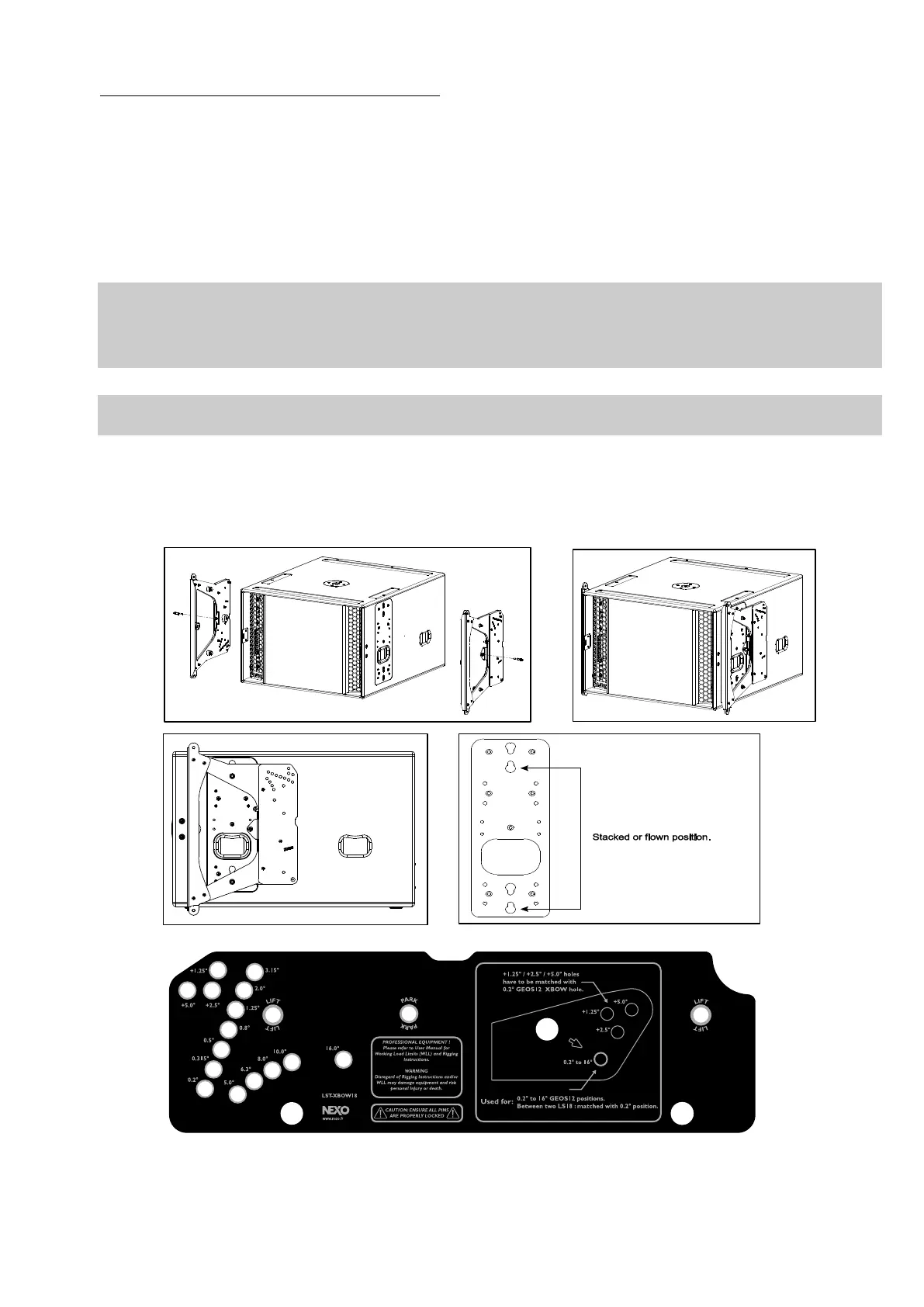

- Insert LST-XBOW into connecting plates of both sides of LS18s
LS18 XBOW ANGLE SETTINGS PLATE
To Next Page
