GEO S12 HARDWARE SETUP PROCEDURE
System Manual GEOS12 LS18 Page 57 / 95

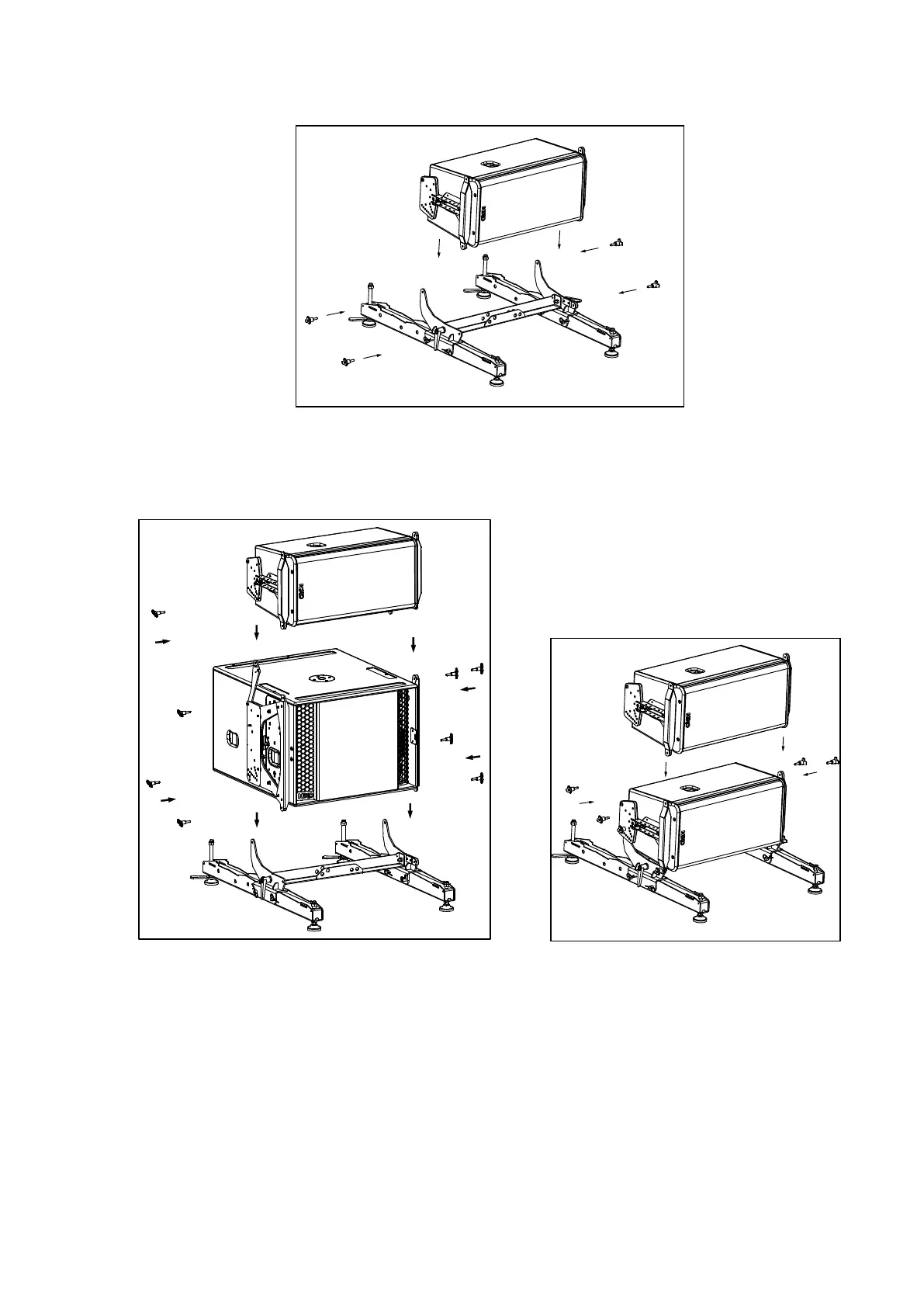

- Connect bottom LS18 or GEO S12 to GPT-GSTK Ground stacking device with 4 VXT-BL820 quick release pins
- Connect second LS18 or Geo S12 with X-Bow front articulation holes and rear link bars and ensure quick release pins are
properly locked
- Repeat above steps for subsequent cabinets
- Once the assembly is completed, rotate rear or front GEO S12 ground stack device adjustable legs to definitive tilt angle,
ensuring that +/-10° is never exceeded on bottom GEO S12
