GEO S12 HARDWARE SETUP PROCEDURE
Page 54 / 95 System Manual GEOS12 LS18
Optional GPT-TLB link bar for GPT- XBOW
GPT-XBOWs are delivered with standard link bars which allow both stacked and flown setups. However, these link bars require
perfect alignment of angle setting holes when adding cabinets.

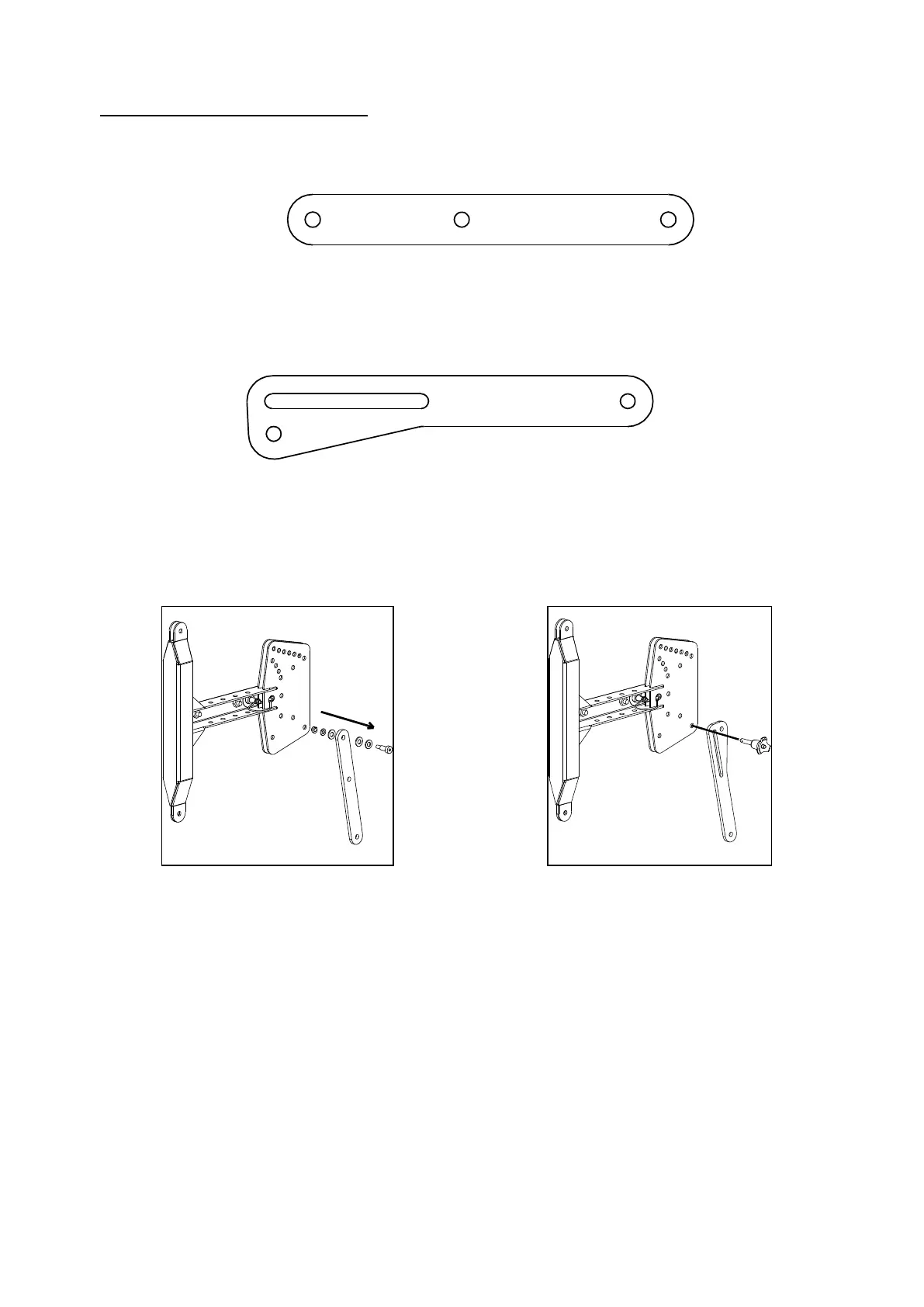

GPT-XBOW standard link bar
To facilitate flying operation, an optional link bar with oblong holes (GPT-TLB, pair of link bars provided with two 8x20 quick
release pin) is available in the GEO S12 accessory range.
GPT-TLB, GPT- XBOW OPTIONAL link bar
To install GPT-TLB, remove the standard link as well as nut, screw and washers.
When using GPT-XBOW for flown setups, insert pins in the oblong hole and opposite circular hole.
REMOVING STANDARD LINK BAR INSERTING PIN - FLOWN SETUPS
