GEO S12 HARDWARE SETUP PROCEDURE
System Manual GEOS12 LS18 Page 49 / 95

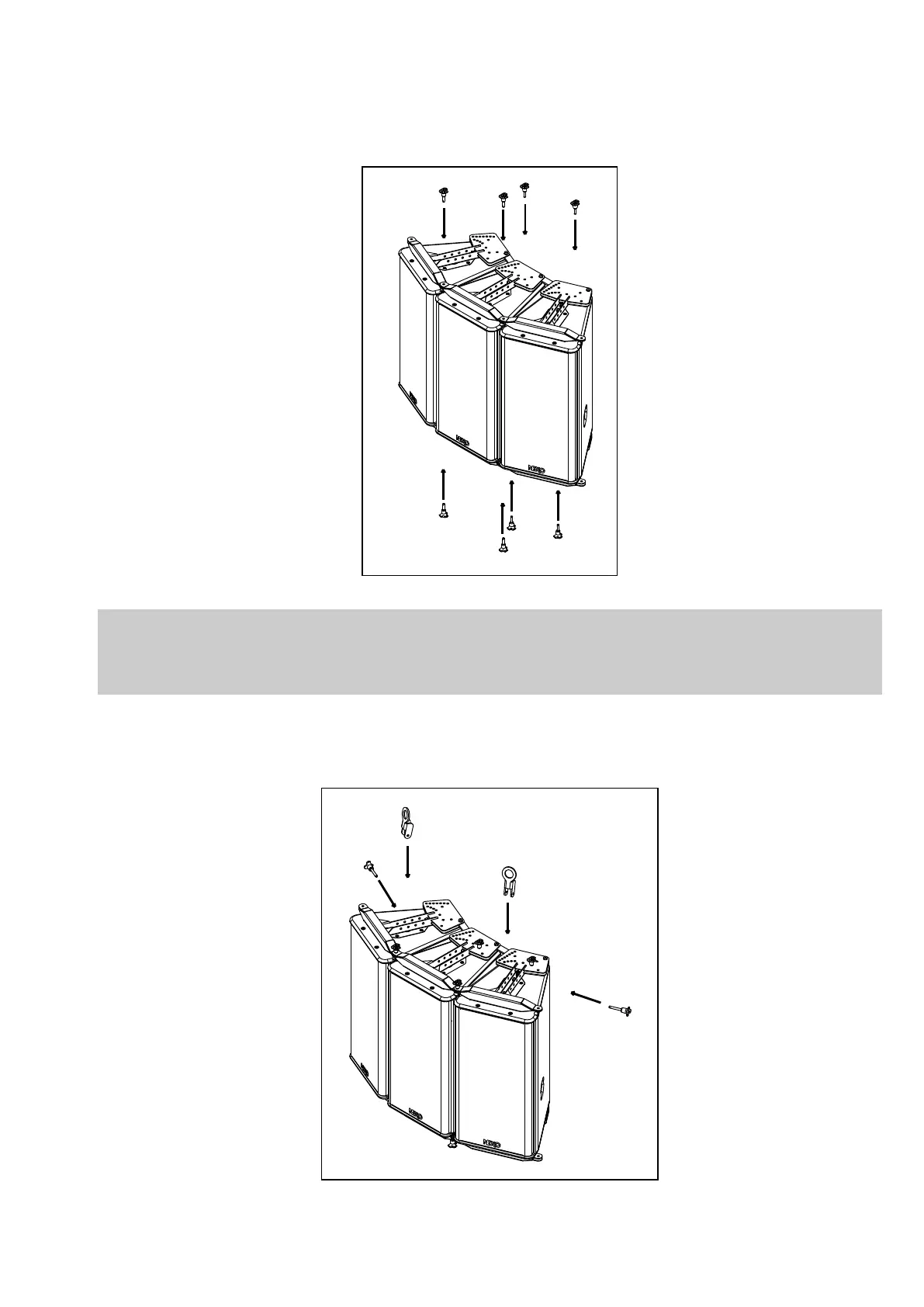

- Connect second GEO S12 with X-Bow front articulation holes and rear link bars and ensure quick release pins are properly
locked
- Repeat above steps for subsequent GEO S12’s
IMPORTANT
Ensure angle settings are identical on upper and lower side of the cabinets
Ensure that safety pins are properly locked into GEO S12s connecting panels.
Ensure that all quick release pins are properly locked into their position.
- Connect lifting rings to “U” bracket with 8x45 quick release pins supplied with VNT-XHBRK
- Ensure quick release pin is properly locked
