4.5 XFADER operation
IInn tthhiiss ooppeerraattiioonnaall wwaayy tthhee iinniittiiaall ppoossiittiioonn ooff tthhee 2244 ffaaddeerrss iiss aatt tthhee mmaaxxiimmuumm((110000%%));;
aanndd oonnllyy oonnee rreeggiisstteerr ooff mmeemmoorryy aatt aa ttiimmee iiss aaccttiivvee iinn oouuttppuutt..
For activate one of the 24 registers of memory you must verify that the cursor
is to the maximum (100%) and select the correspondent
FFLLAASSHH
key (Fig.9) that
in this case acts from key of selection of the register in output.
The time of passage between two registers is adjustable from the
FFAADDEE
TTIIMMEE
knob (Fig.10); during the passage the
XXFFAADDEERR
red light flashes.
If you want to dissolve the register of memory currently active in output,
press again the correspondent key of activation.
Pressing the
SSCCEENNEE
key, on the outputs monitor you see the number of the
register currently active, for return to visualize the levels of output press it
again.
In
WWIIDDEE
operation the outputs monitor visualizes through the
PPRREESSEETT AA
key
the channels 1/24; through the
PPRREESSEETT BB
key the channels 25/48
..
IInn tthhiiss ooppeerraattiioonnaall wwaayy tthhee iinniittiiaall ppoossiittiioonn ooff tthhee 2244 ffaaddeerrss iiss zzeerroo..
Each register of memory (lower faders 1/24 fig.9) command a memory in
output; it is possible add more memories simply moving the corresponding
fader.
The 24
FFLLAASSHH
keys under the lower faders (fig.9) keep the value of the reg-
ister of memory 1/24 to the maximum value.
in
WWIIDDEE
operation the outputs monitor visualizes through the
PPRREESSEETT AA
key
the channels 1/24; through the
PPRREESSEETT BB
key the channels 25/48
..
The
SSOOLLOO
operation is the same to the
FFLLAASSHH
operation except that for the
function of the
FFLLAASSHH
keys.
The 24
FFLLAASSHH
keys under the lower faders (fig.9) keep the value of the register of mem-
ory 1/24 to the maximum excluding all the other registers of active memory, therefore
you have in output
OONNLLYY
that memory till that you hold pressed the
FFLLAASSHH
key
..
4.3 FLASH operation
4.4 SOLO operation
Fig. 10
MIN
1
2
4
8
16
0
2
4
8
16
32
FADE
TIME
SEC
GB
BB
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
13 14 15 16 17 18 19 20 21 22 23 24121110987654321
CHASE 1 CHASE 2 CHASE 3 CHASE 4

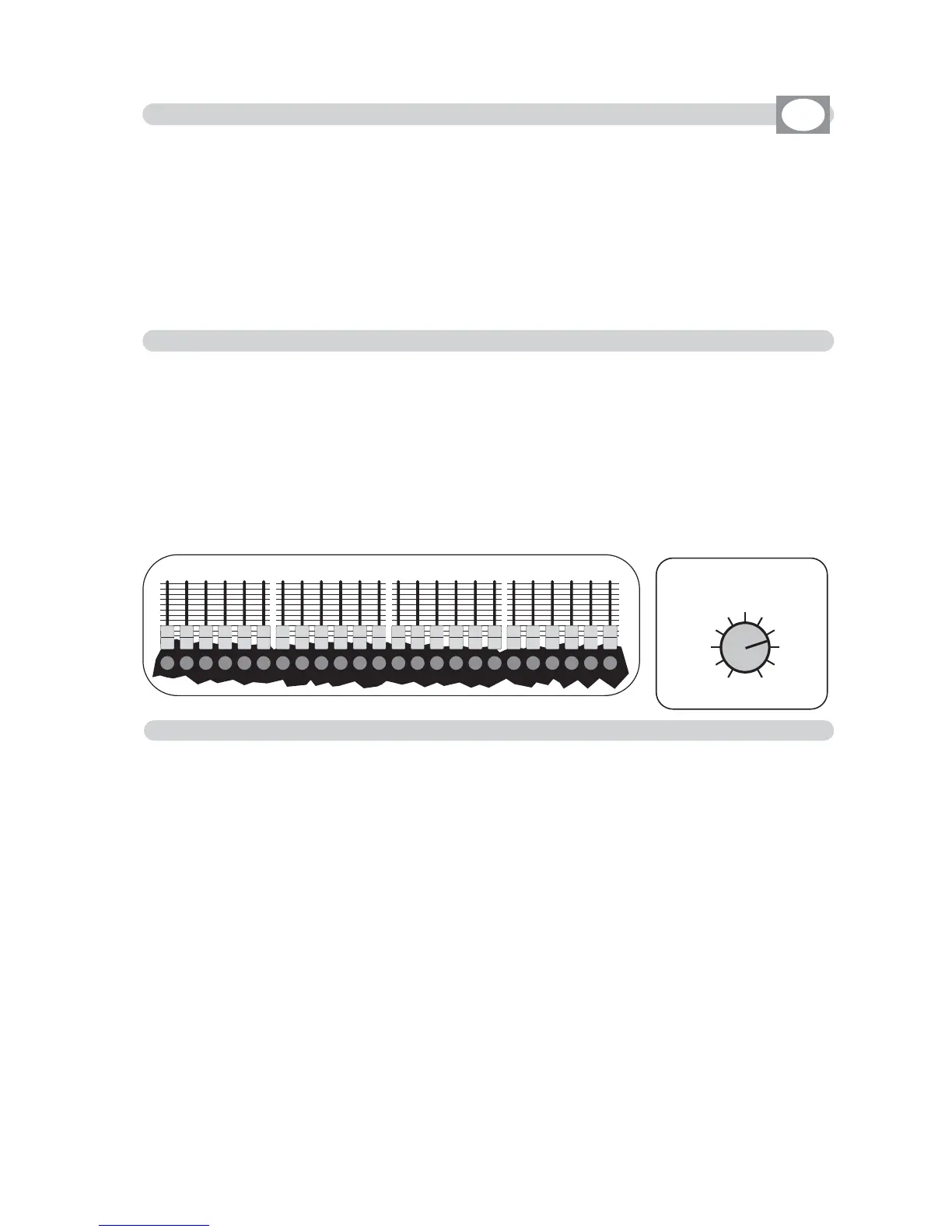

Fig. 9
