Note: It is highly recommended to apply stress relief to the end of the cables right before connecting
to the MegaFi. Typically, this is done by making a loop of the cables and then attaching them to the
designated SMA connectors of the device as shown below.
Connect the Power:

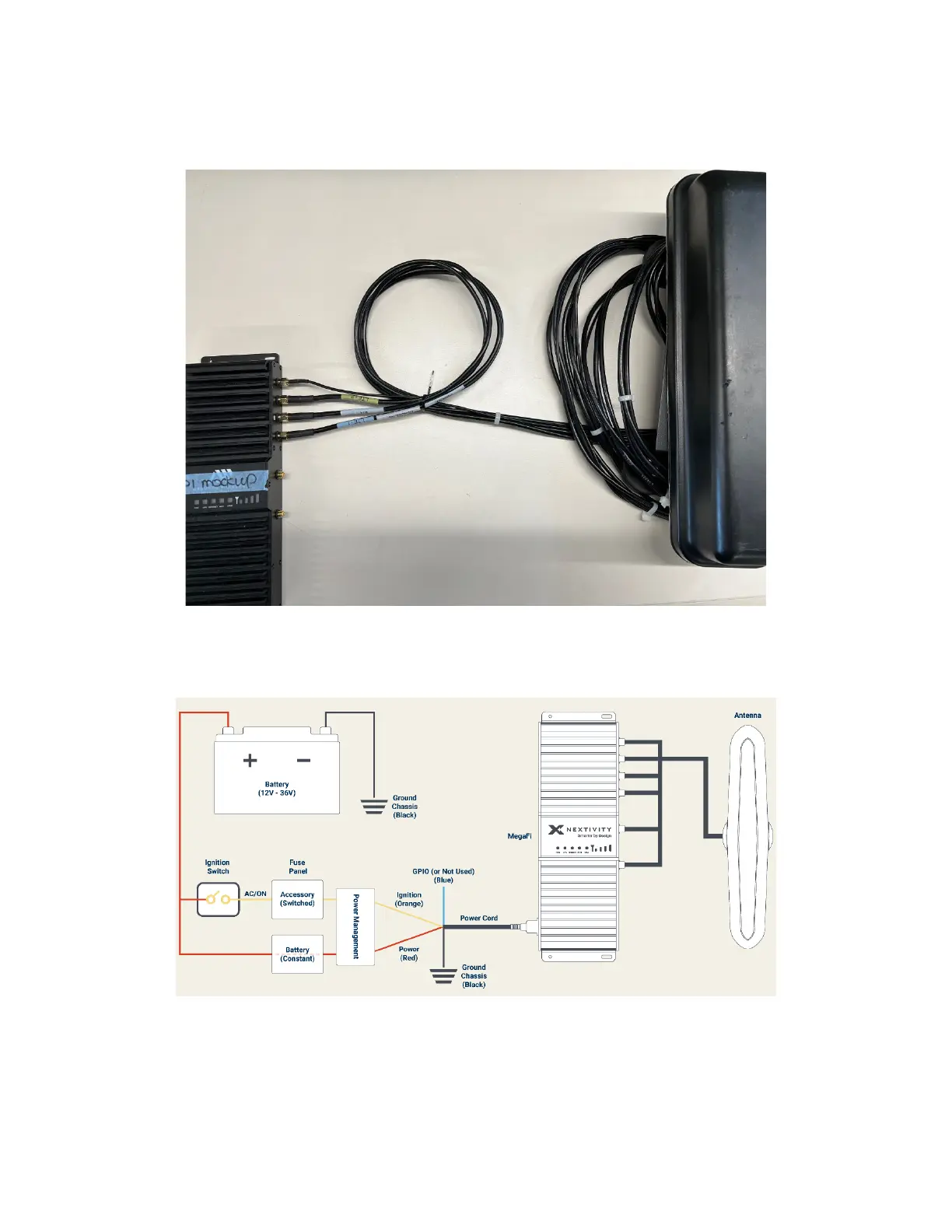

Wiring Diagram – Example Installation
1) Connect the DC power cable to the port labeled PWR on the side of the device.
2) Connect the DC power cable to your DC power source.
