Overview:
Please review assembly instructions before beginning assembly. It will be necessary to have at
least two people to assemble this game.
Step 1:

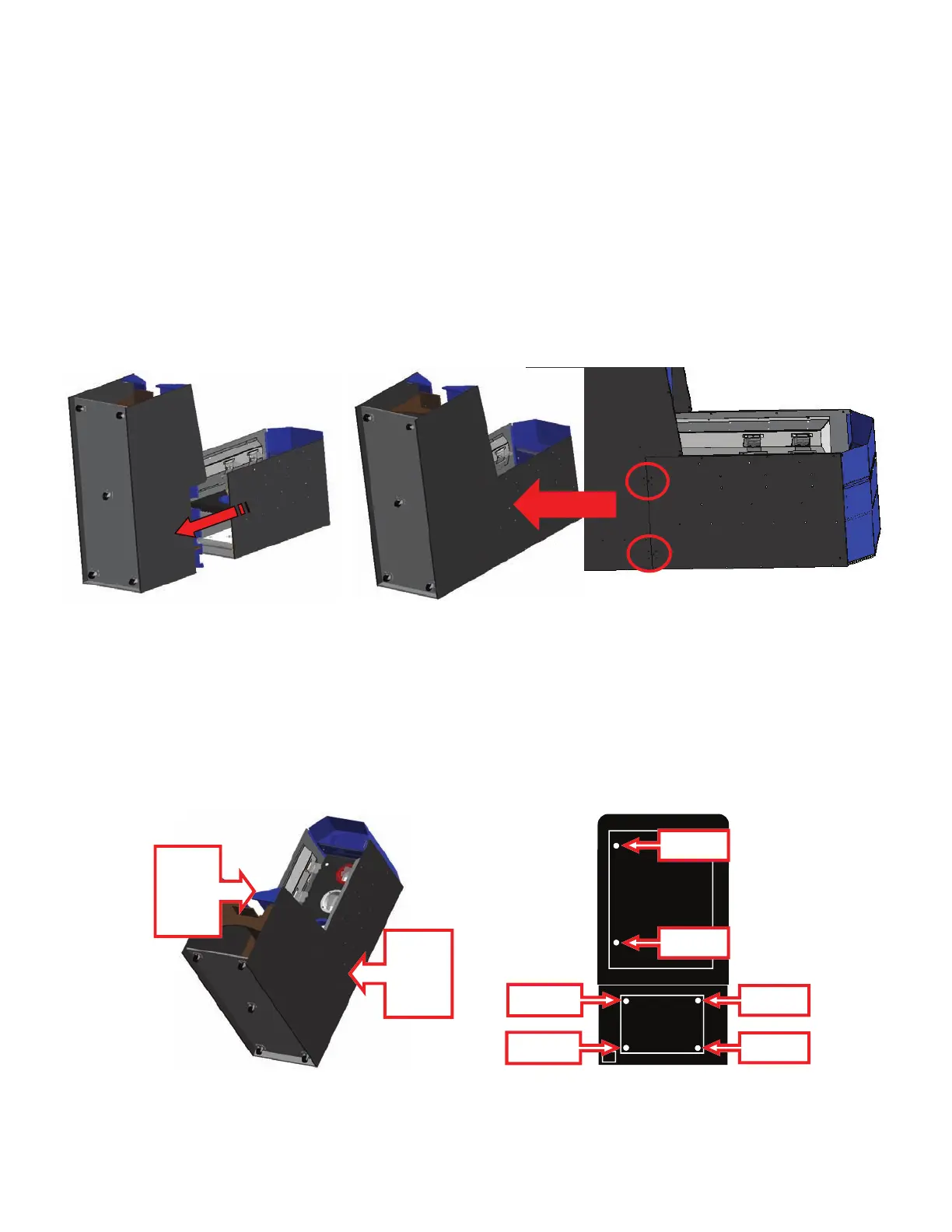

With two people position the upper rear and conveyer base as shown in below. Slide
the two halves together and latch the halves with the provided tool found in the cash
box. Be careful not to catch any harness or connectors while sliding the two halves
together.
Step 2:
Two people are required to lift the two halves to their up right position, see below.
Remove the lower back panel by remove the four mounting bolts and open the upper
rear section to access the wire harnesses. See drawing below for the location of the
bolts.
One
person
stands
here.
One
person
stands
here.
Remove
Remove
Remove
Remove
Remove
Remove
Latch these
with latch tool
To Next Page
