3

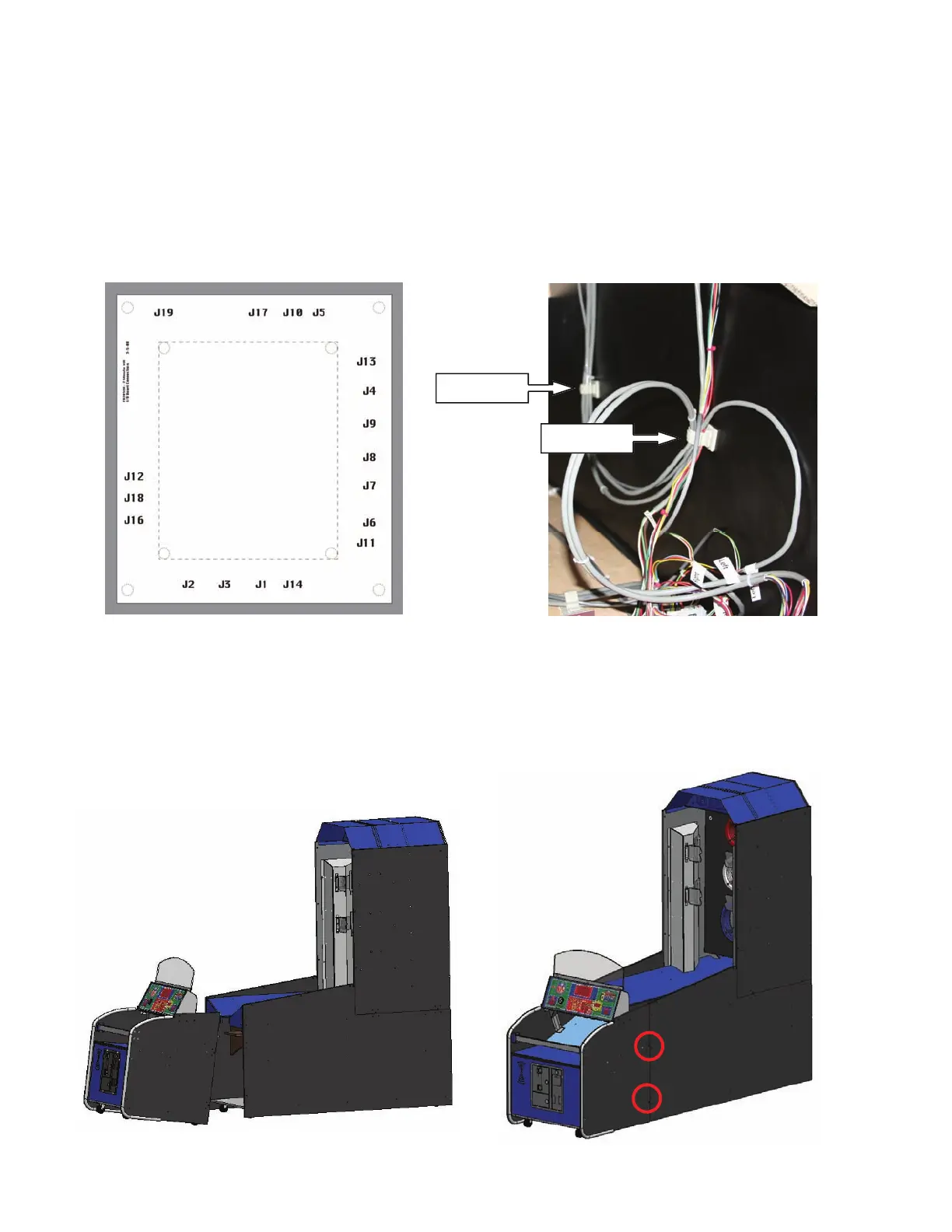

Step 3:
Connect the upper rear section harnesses to the main board. All wire connectors are
labeled and connect to the same labeled connections found along the side of the
main board. See example of label below. Attach the excess cabling into the two ca-
ble straps mounted on the right side of the cabinet. See the picture below.
Step 4:
Position the front half so you can attach the wire harnesses together. Angle the front
as shown below and push the front half forward until flush with other cabinet. Be
careful not to pinch any harnesses and latch with supplied latch tool.
Cable Strap
Cable Strap
Latch these with
latch tool.
To Next Page
