Step 5:
Loosen the 3 hat nuts mounting the control panel shown on step 7 before positioning the cages.

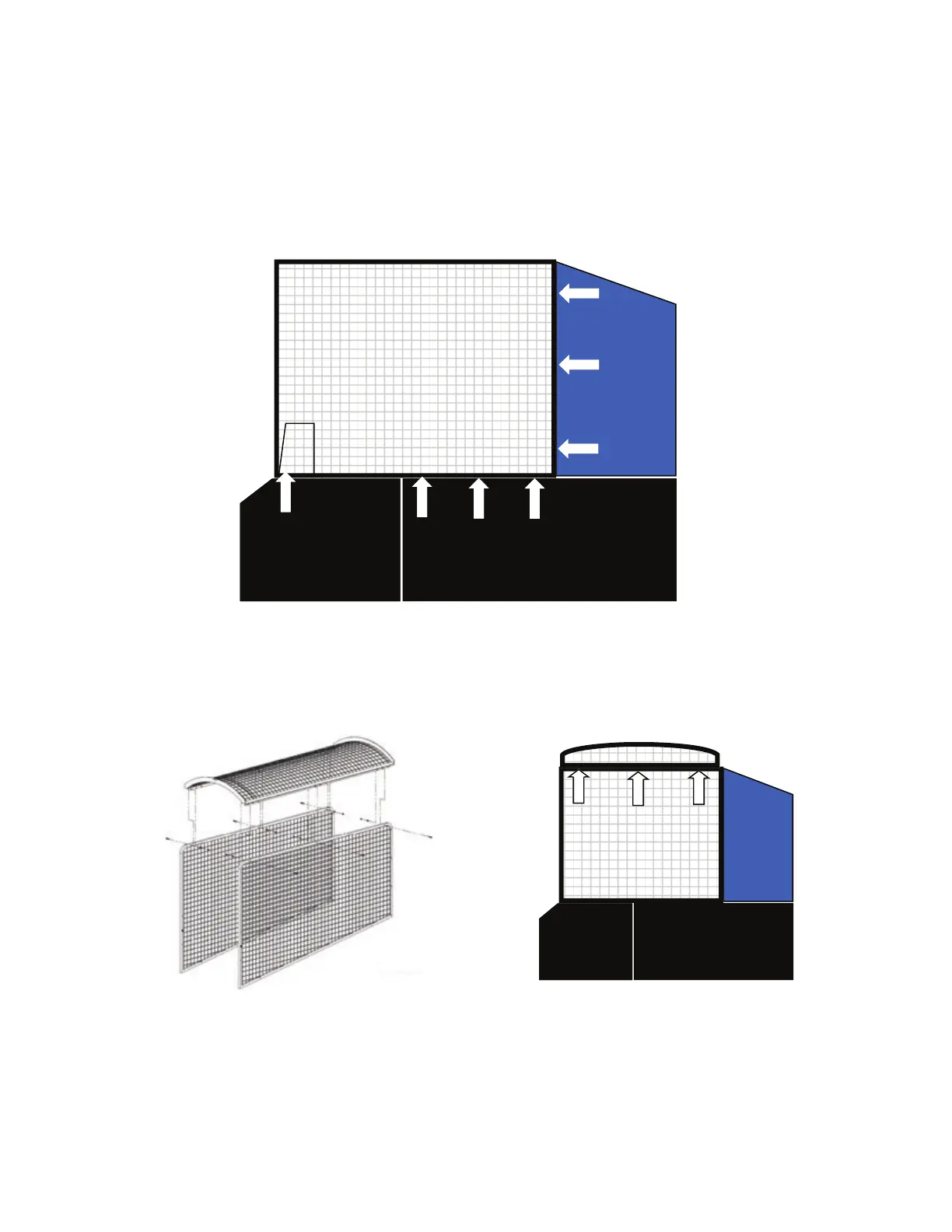

Position the side cages onto the cabinet and install (7) 1/4-20 bolts (use 5/32 Allen) and (7) 1/4-20
inserts (use 3/16 Allen) as shown in picture 4a and arrow drawing below. You will have to climb
into the cabinet to install the side cages. The cages will slide down and back. Be sure to tighten
the cage bolts before proceeding.
Step 6:
Install the top cage being careful not to bend the sides out as the top will be unstable. Attach using
(6) 1/4-20 bolts (use the 5/32 Allen) and (6) 1/4-20 inserts (use the 3/4 Allen), three per side. See
picture 5a and diagram for bolt locations.
