NI C Series User Manual

NI 9795 User Guide and Specifications 2 ni.com

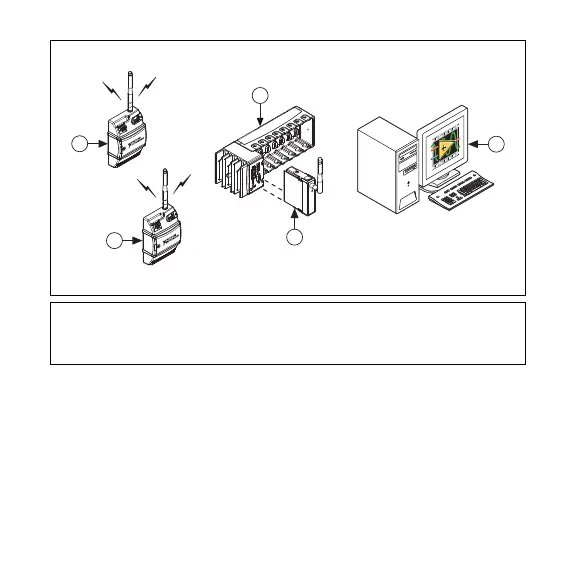

Figure 2. NI WSN System Components
Figure 2 shows the components of the NI WSN system. A NI WSN
system consists of one NI WSN gateway, up to 36 NI WSN-32xx
nodes per gateway, and multiple PCs or Programmable
Automation Controllers (PACs) to receive and analyze the
distributed sensor data. When you connect the NI WSN gateway,
1NI WSN-32xx Nodes
2 NI CompactRIO Chassis
3 NI 9795 WSN Gateway
4 PC or NI Real-Time Hardware
Running Application Software
5 Ethernet Network (not pictured)
1
1
2
4
3
