RTSI Connector Pinout

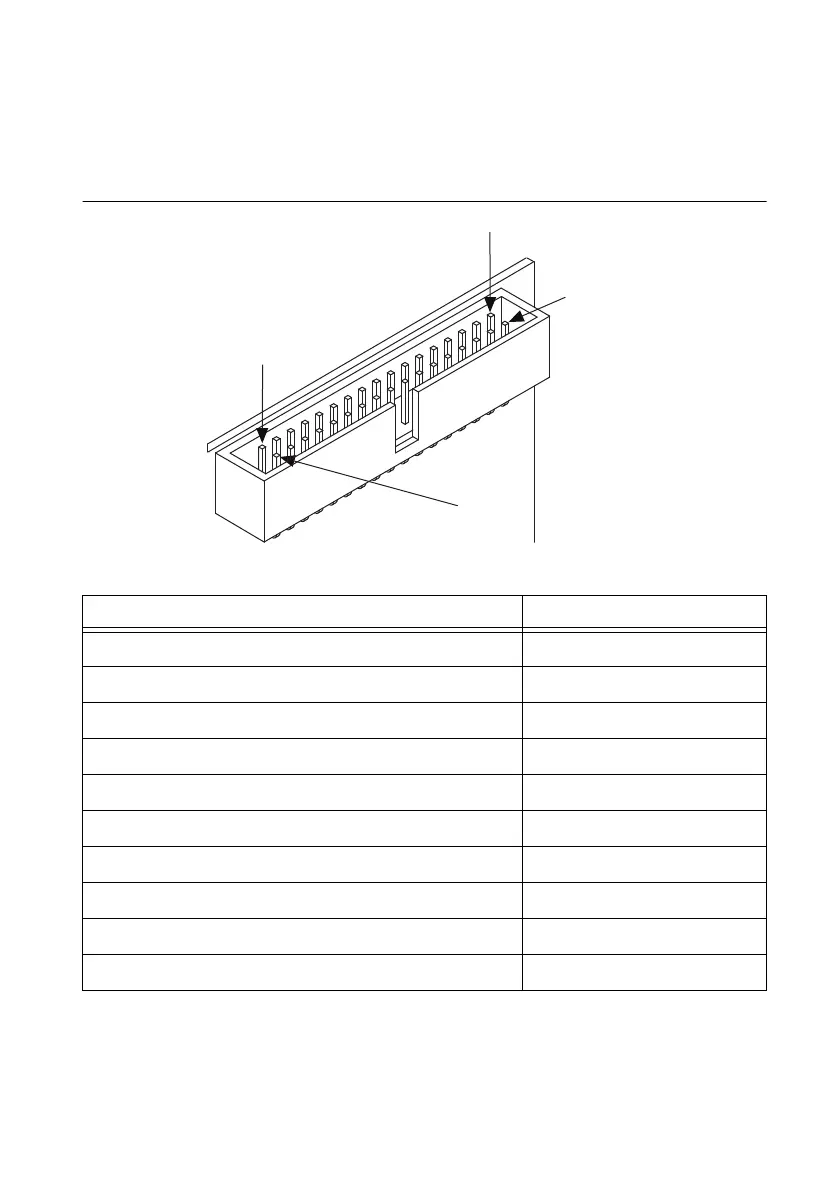

(NI PCI Express Devices) Figure 9-2 shows the RTSI connector pinout and Table 9-1
describes the RTSI signals.
Figure 9-2. PCI Express RTSI Pinout
Table 9-1. RTSI Signals
RTSI Bus Signal Terminal
RTSI 7 34
RTSI 6 32
RTSI 5 30
RTSI 4 28
RTSI 3 26
RTSI 2 24
RTSI 1 22
RTSI 0 20
Not Connected. Do not connect signals to these terminals. 1 through 18
D GND 19, 21, 23, 25, 27, 29, 31, 33
Terminal 1
Te r m i nal 2
Terminal 34
Terminal 33
To Next Page
