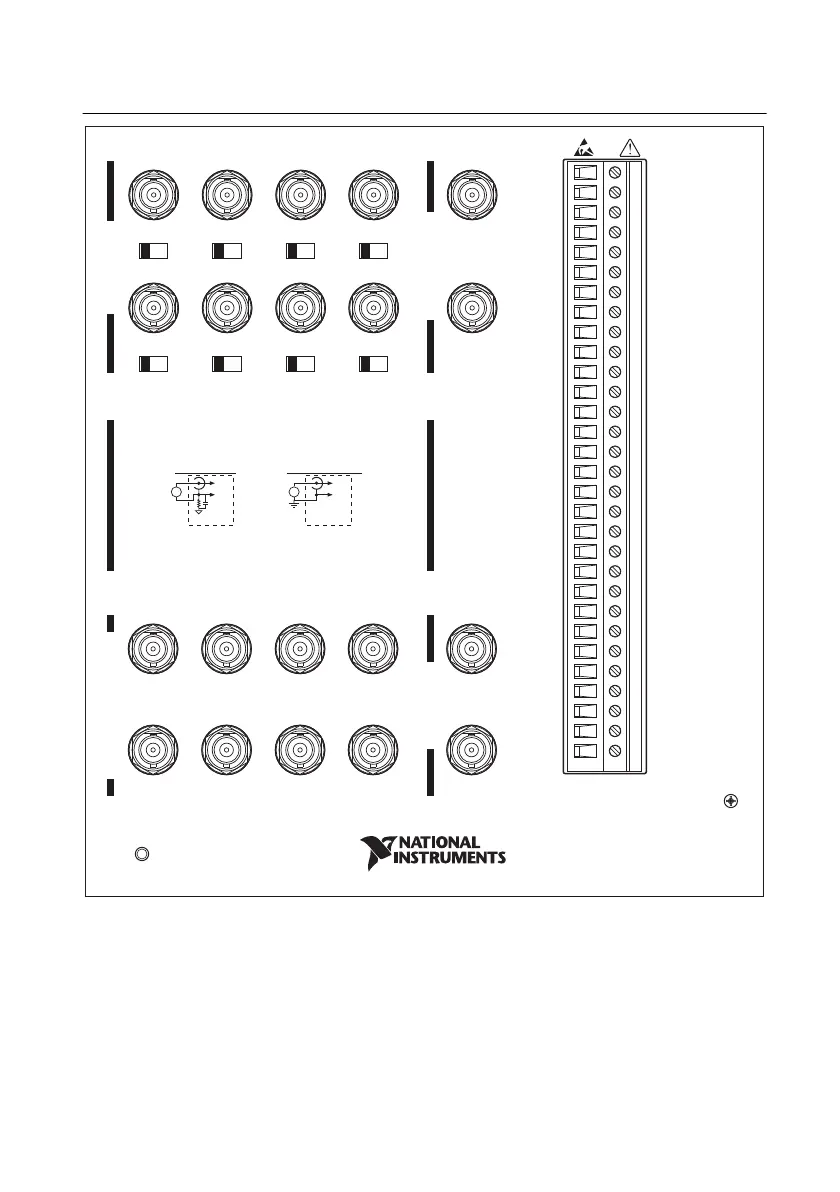

Figure A-17. NI USB-6361 BNC Pinout
Refer to Table 7-9, X Series PCI Express/PXI Express/USB Mass Termination/USB BNC Device
Default NI-DAQmx Counter/Timer Pins, for a list of the default NI-DAQmx counter/timer pins
for this device. For more information about default NI-DAQmx counter inputs, refer to
Connecting Counter Signals in the NI-DAQmx Help or the LabVIEW Help.
ANALOG INPUT
DIGITAL AND TIMING I/O
ANALOG OUTPUT
AI 0
FS GS
AI 1
FS GS
AI 2
FS GS
AI 3
FS GS
AO 0
D GND
P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
D GND
D GND
D GND
D GND
D GND
AI GND
AI SENSE
NC
APFI 0
CHS GND
CHS GND
8 Inputs, 16-Bit, 2.0 MS/s
X Series Multifunction DAQ
+5 V
USER 1
USER 2
PFI 8/P2.0
PFI 9/P2.1
PFI 10/P2.2
PFI 11/P2.3
PFI 12/P2.4
PFI 13/P2.5
PFI 14/P2.6
PFI 15/P2.7
PFI 0/P1.0
PFI 1/P1.1 PFI 2/P1.2 PFI 3/P1.3 USER 1
PFI 4/P1.4
POWER
PFI 5/P1.5
PFI 6/P1.6 PFI 7/P1.7 USER 2
AI 4
FS GS
AI 5
FS GS
AI 6
FS GS
AI 7
FS GS
AO 1
USER ACCESS
NI USB-6361
Floating Source (FS)
AI GND
AI
+
AI –
+
–
USB 6361
Ground Ref. Source (GS)
AI
+
AI –
+
–
USB 6361
