NI PXIe-4322 User Manual

© National Instruments | 2-7
NI PXIe-4322 User Manual
NI PXIe-4322 Block Diagram

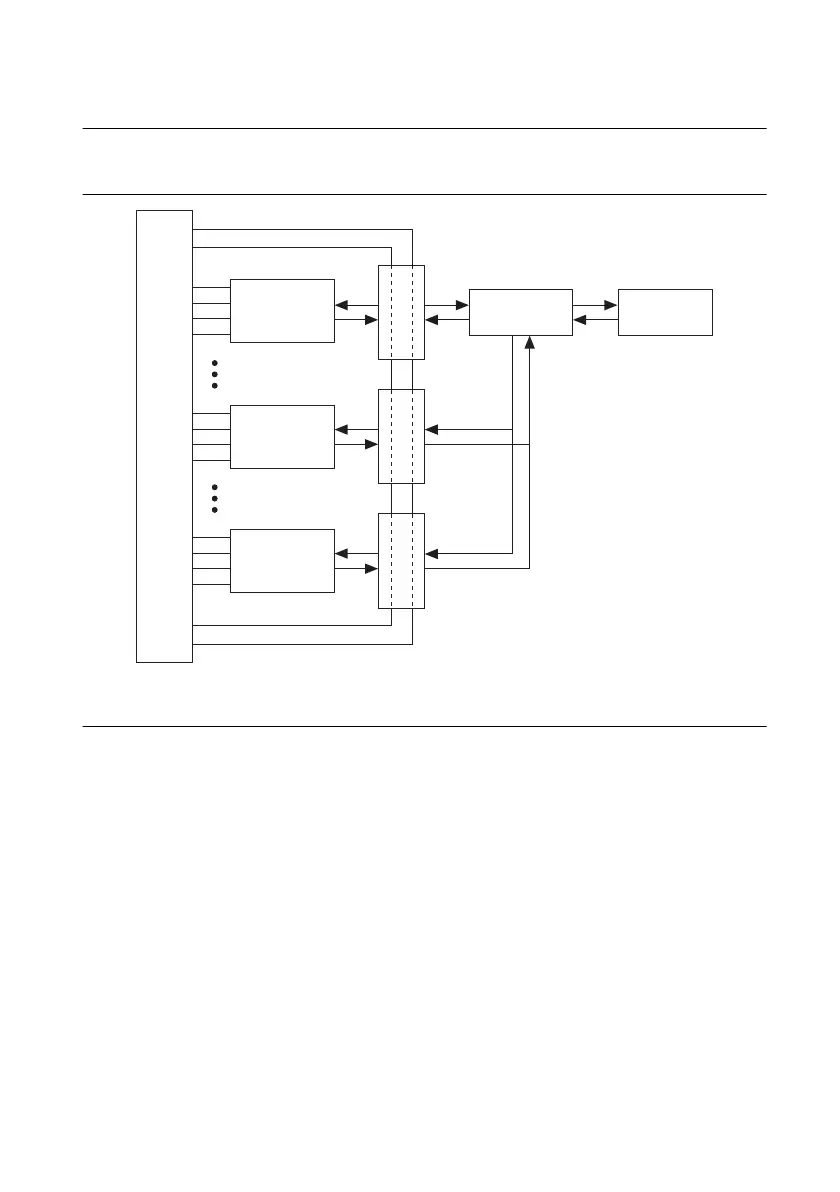

Figure 2-6 shows the block diagram of the NI PXIe-4322 module.
Figure 2-6. NI PXIe-4322 Block Diagram
Analog Output Data Generation Methods
When performing an analog output operation, you can perform software-timed or
hardware-timed generations.
Software-Timed Generations
With a software-timed generation, software controls the rate at which data is generated. Software
sends a separate command to the hardware to initiate each DAC conversion. In NI-DAQmx,
software-timed generations are referred to as on-demand timing. Software-timed generations are
also referred to as immediate or static operations. They are typically used for writing a single
value out, such as a constant DC voltage.
AO0+
AOS0+
AOS0–
AO0–
AO6+
AOS6+
AOS6–
AO6–
AO7+
AOS7+
AOS7–
AO7–
PXIe
Bus Interface
PXIe Bus
Analog Output
Circuit 6
300 V
rms
Isolation
300 V
rms
Isolation
IsolatorIsolator
300 V
rms
Isolation
300 V
rms
Isolation
Isolator
Analog Output
Circuit 7
Analog Output
Circuit 0
