NI SCC Series User Manual

SCC Quick Start Guide 16 ni.com

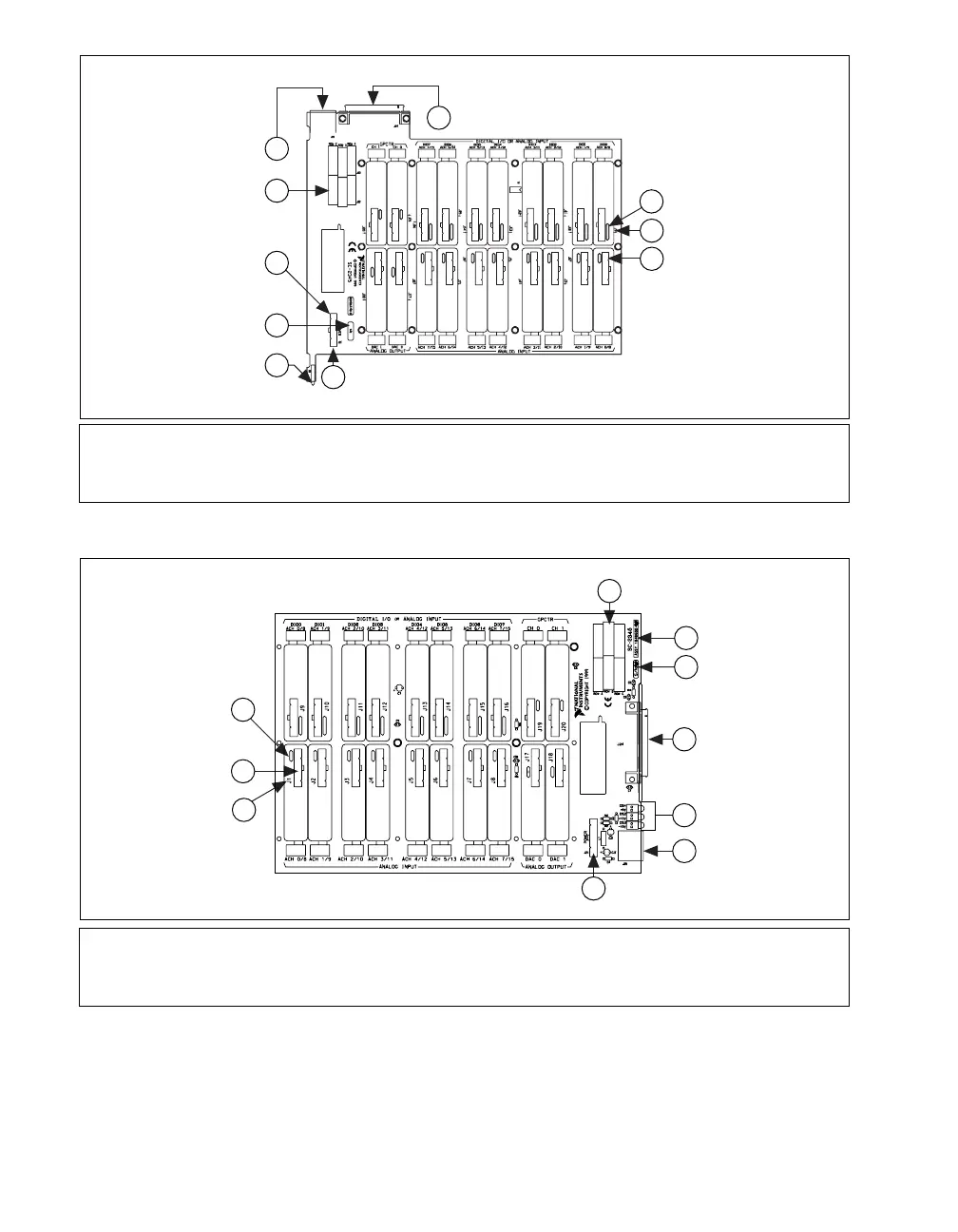

Figure 13. SC-2345 with Configurable Connectors (Rear Cabled) Carrier Diagram
Figure 14. SC-2345 with Configurable Connectors (Side Cabled) Carrier Diagram
1 Power LEDs
2J21
3 Serial Number
4 Assembly Number
5 Screw-Terminal Block
6J25
7J24
8SCC Key Slot
9 SCC Socket Reference Designator
10 SCC Socket
1 SCC Socket Reference Designator
2 SCC Socket
3 SCC Key Slot
4 Screw-Terminal Block
5 Assembly Number
6 Serial Number
7J24
8 Power LEDs
9J25
10 J21
6
7
4
3
1
5
10
9
8
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
General Purpose
Counter/Timer
Channel 0
General Purpose
Counter/Timer
Channel 1
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Analog Output
DAC 0
Analog Output
DAC 1
2
1
2
3
4
5
6
7
9
10
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
General Purpose
Counter/Timer
Channel 0
General Purpose
Counter/Timer
Channel 1
Analog Output
DAC 1
Analog Output
DAC 0
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
8
