SC-2350 Carrier Considerations
The SC-2350 has integrated software support for Transducer Electronic
Data Sheet (TEDS) sensors. For more information about using TEDS with
SCC modules, refer to the SC-2345/2350 Carrier User Manual.
The SC-2350 carrier has 16 channels of analog input sockets, J1 to J8, in
one row of eight sockets. You can use any analog input SCC module in a
single-stage analog input configuration. In addition, it contains two analog
output sockets, J17 and J18, for outputting up to two channels of data with
the appropriate SCC modules inserted.
The SC-2350 does not support dual-stage configuration or digital signals,
so you cannot use the SC-2350 carrier with the SCC-DI01, SCC-DO01, or
SCC-RLY01 or SCC-CTR01 modules. Figure 15 shows the locations of the
SCC module sockets, screw-terminal block, and other parts on the SC-2350
carrier.

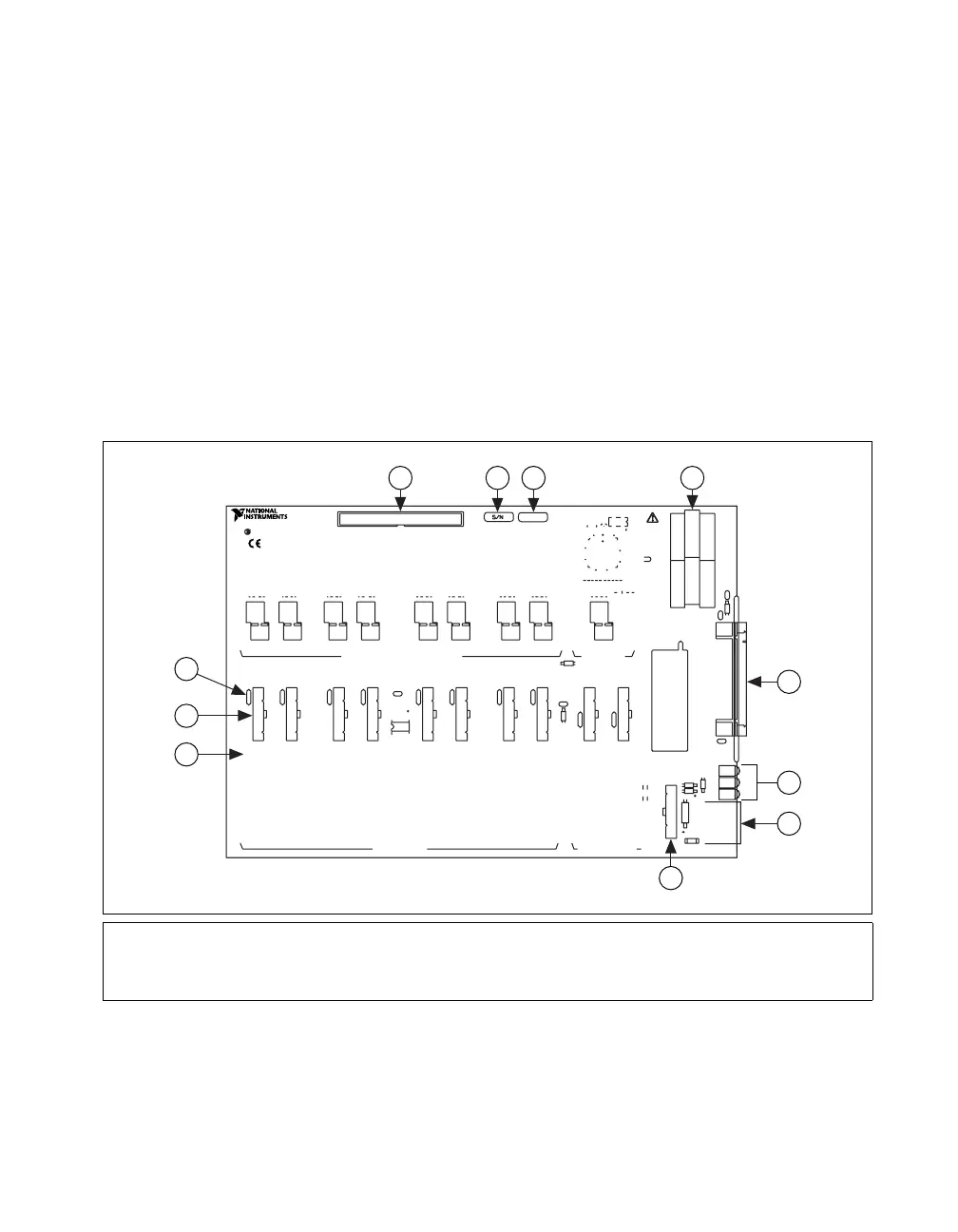

Figure 15. SC-2350 Carrier with TEDS
1 SCC Socket Reference Designator
2 SCC Socket
3 SCC Key Slot
4 50-Pin Test Header
5 Serial Number
6 Assembly Number
7 Screw-Terminal Block
8J24
9 Power LEDs
10 J25
11 J21
COPYRIGHT 2003
DATA+ 0/8
RETURN 0/8
DATA+ 1/9
RETURN 1/9
DATA+ 2/10
RETURN 2/10
DATA+ 3/11
RETURN 3/11
DATA+ 4/12
RETURN 4/12
DATA+ 5/13
RETURN 5/13
DATA+ 6/14
RETURN 6/14
DATA+ 7/15
RETURN 7/15
DATA+ 0/1
RETURN 0/1
TEDS CONNECTIONS FOR ANALOG INPUT
TEDS ANALOG
OUTPUT
J33 J30 J27 J31 J29 J28 J34 J26 J32
AI 0/8 AI 1/9 AI 2/10 AI 3/11 AI 4/12 AI 5/13 AI 6/14 AI 7/15 AO 0 AO 1
J21
J25
J24
4 5 6 7
8
10
9
11
1
2
3
Analog Input
AI 0/8
Analog Input
AI 1/9
Analog Input
AI 2/10
Analog Input
AI 3/11
Analog Input
AI 4/12
Analog Input
AI 5/13
Analog Input
AI 6/14
Analog Input
AI 7/15
Analog Output
AO 0
Analog Output
AO 1
©
