SC-2345 Carrier Diagrams
Figures 12, 13, and 14 show diagrams of the three types of SC-2345
carriers.

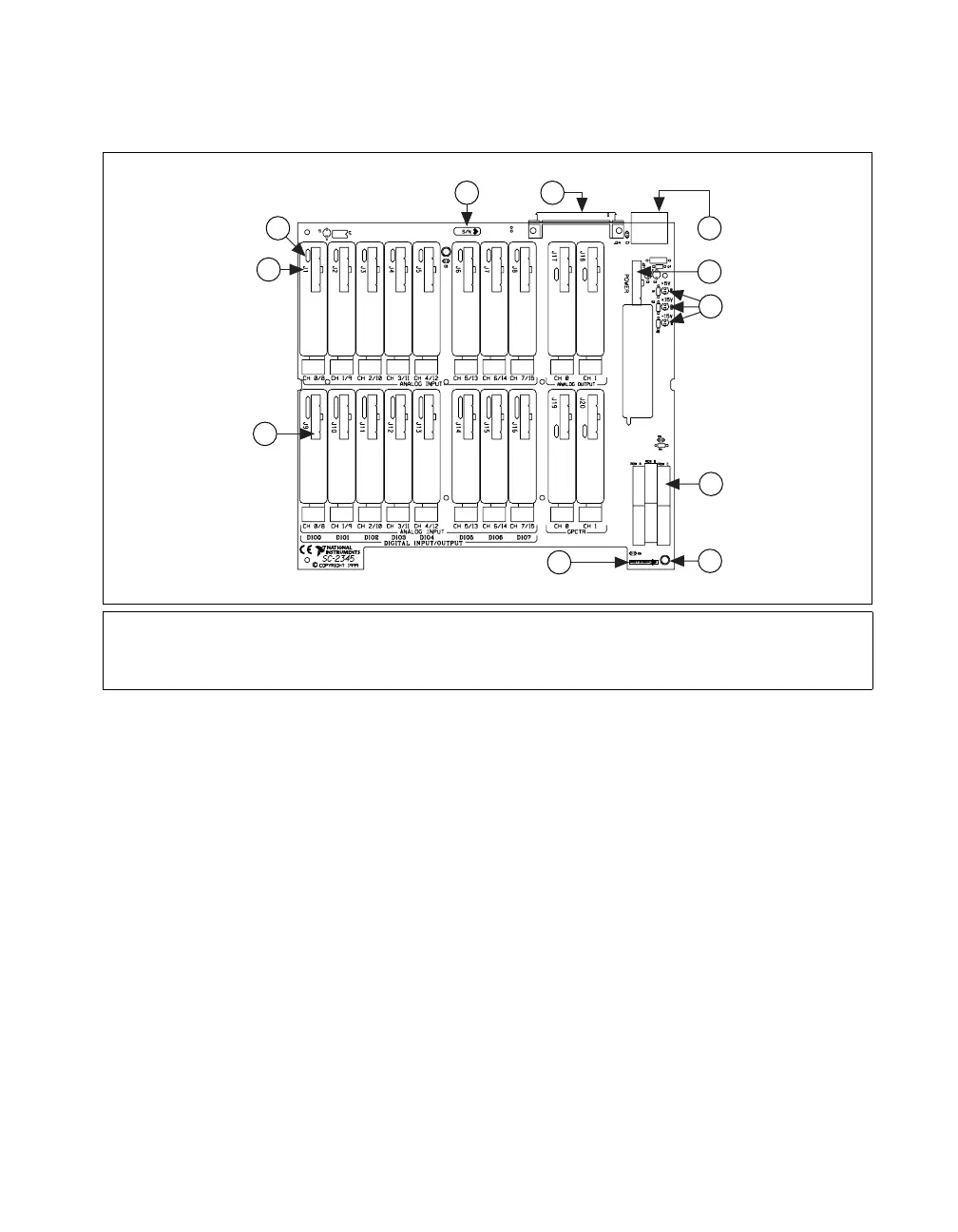

Figure 12. SC-2345 Carrier Diagram
1 SCC Socket
2 SCC Socket Reference Designator
3 SCC Key Slot
4 Serial Number
5J24
6J25
7J21
8 Power LEDs
9 Screw-Terminal Block
10 Grounding Terminal Lug
11 Assembly Number
1
2
3
4 5
6
7
9
10
11
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
Digital I/O
or 1st Stage
of a Dual Stage
AI Configuration
General Purpose
Counter/Timer
Channel 1
General Purpose
Counter/Timer
Channel 0
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Single Stage AI
or 2nd Stage
of a Dual Stage
AI Configuration
Analog Output
DAC 1
Analog Output
DAC 0
8
