Nibe AMS 10-8 Service Manual

Electrical connection
NOTE
All electrical connections must be carried out
by an authorised electrician.

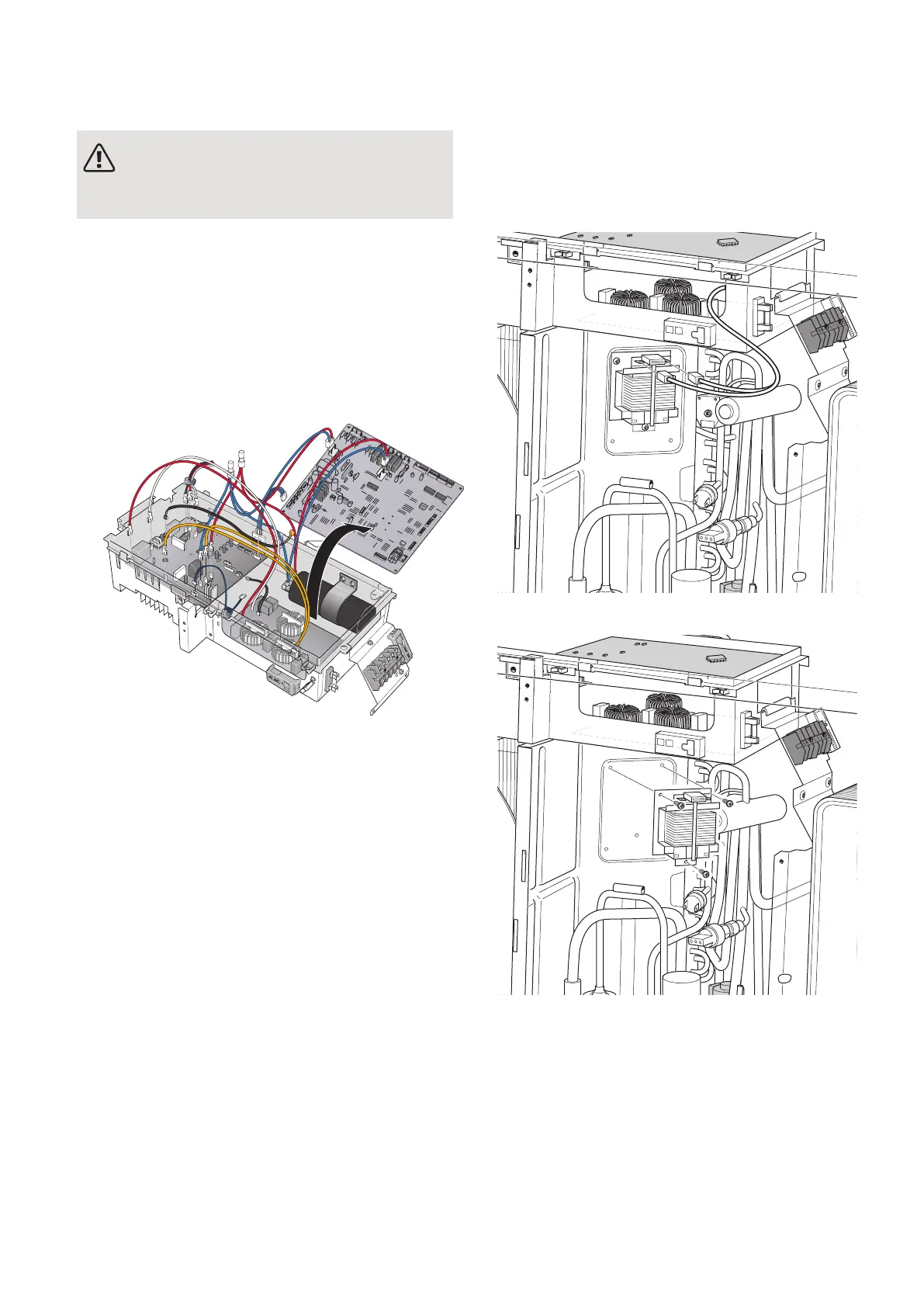

DO AS FOLLOWS:
1.
Disconnect the power to
AMS 10-8 / F2040-8 / VVM / SMO.
2.
Wait for at least one minute for the capacitors to
discharge.
3.
Connect an ESD bracelet.
4.
Remove the control board PWB1. Release PWB1
by unscrewing the four screws.
LEK
5.
Disconnect the connectors from PWB1 step by step,
as you get to them. (They are colour-coded to make
reinstallation easier.)
6.
Disconnect the cables from the inverter board
PWB2. Open the cable mounts (3 pcs) on the sides
and continue to disconnect the cables.
7.
The yellow cables T24 and T25 must be removed
completely. (They will not need to be reinstalled.)
8.
Dismantle the reactor that is located on the panel
below the distribution box.
| GB12
