Use a water trap for installations where air circulation
may occur in the condensation water pipe.
The insulation must seal against the bottom of the
condensation water trough.

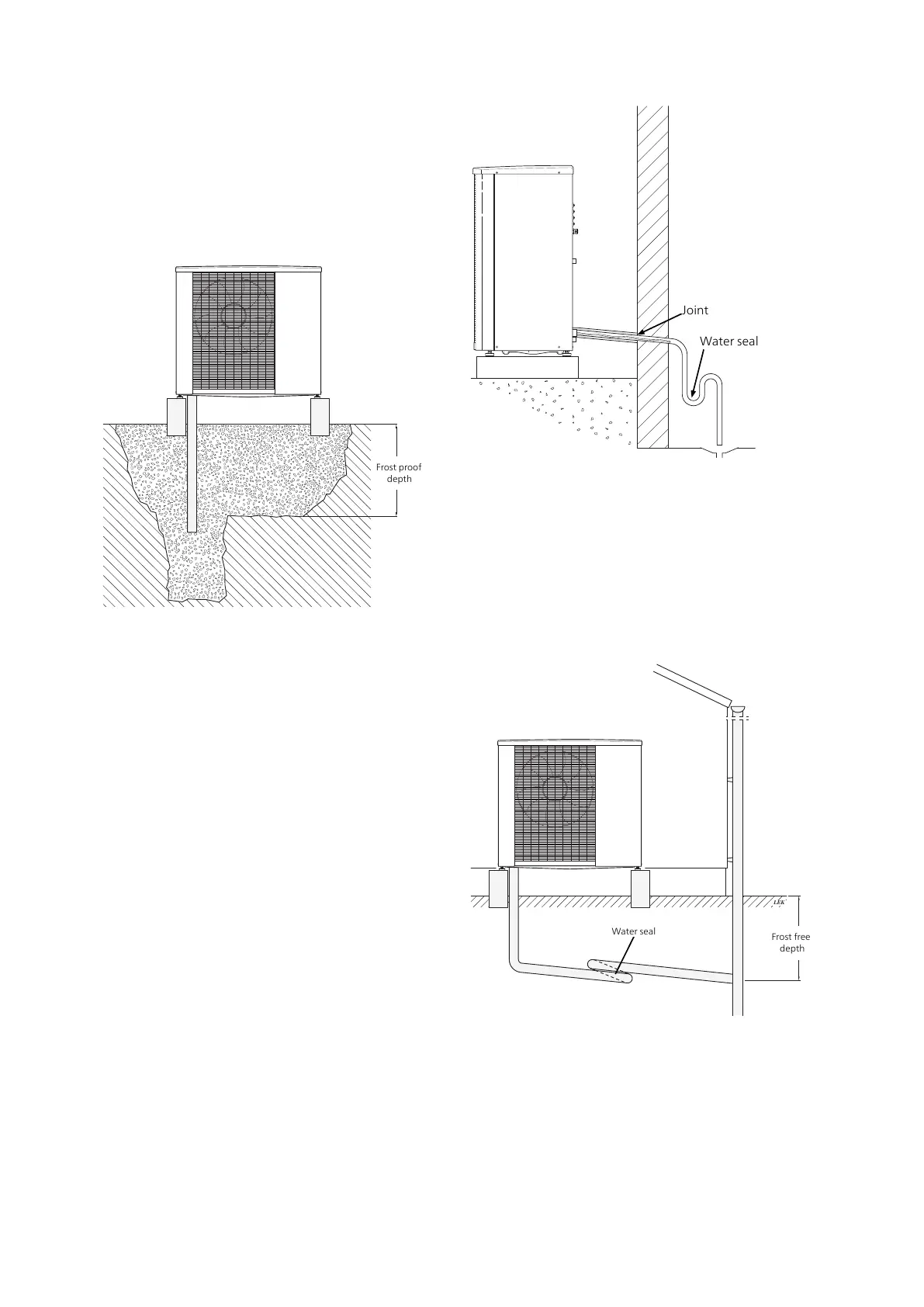

RECOMMENDED ALTERNATIVE FOR
LEADING OFF CONDENSATION WATER
Stone caisson
LEK
Frostfritt djup
F2120
Frost proof
depth
If the house has a cellar the stone caisson must be po-
sitioned so that condensation water does not affect the
house. Otherwise the stone caisson can be positioned
directly under the heat pump.
The outlet of the condensation water pipe must be at
frost free depth.
Drain indoors
Water seal
Joint
The condensation water is lead to an indoor drain (sub-
ject to local rules and regulations).
Route the pipe downward from F2120.
The condensation water pipe must have a water seal to
prevent air circulation in the pipe.
KVR 10 spliced as illustrated. Pipe routing inside house
not included.
Gutter drainage
LEK
F2120
Frostfritt
djup
Frost free
depth
Water seal
The outlet of the condensation water pipe must be at
frost free depth.
Route the pipe downward from F2120.
The condensation water pipe must have a water seal to
prevent air circulation in the pipe.
11Chapter 2 | Delivery and handlingNIBE F2120
