Nibe F2120 Series User Manual

Connections
Caution
To prevent interference, unscreened commu-
nication and/or sensor cables to external con-
nections must not be laid closer than 20 cm
from high voltage cables.
POWER CONNECTION
LEK
Data
Serie.nr.
Art.nr. 711453
OUT
I
N
LEK

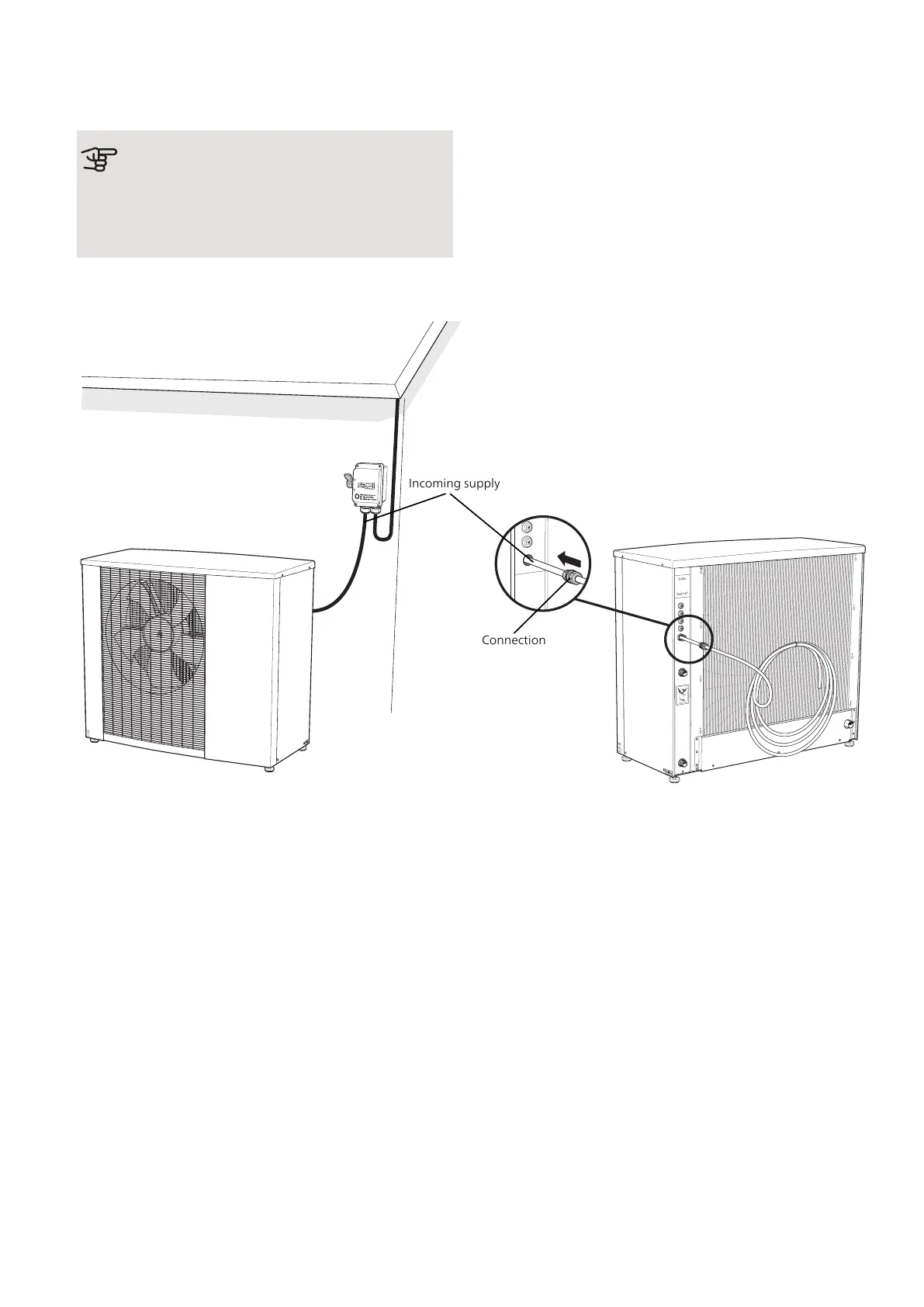

Incoming supply
Connection
Incoming supply cable is enclosed and factory connected
to terminal block X1. Outside the heat pump there is
approx. 1.8 m of cable available.
At installation, install the screwed connection on the
rear of the heat pump. The part of the screwed joint that
tensions the cable must be tightened to a tightening
torque above 3.5Nm.
25Chapter 5 | Electrical connectionsNIBE F2120

Nibe F2120 Series Specifications

General

Type	Air/Water Heat Pump
Operating Temperature Range	-25°C to +45°C
Refrigerant	R410A
Max. Flow Temperature	65°C
Heating Capacity	8-20 kW
Power Supply	3-phase, 400V
SCOP	5.0 (Model dependent, refers to average climate, low temperature application)
