Nibe F2120 Series User Manual

Cable routing

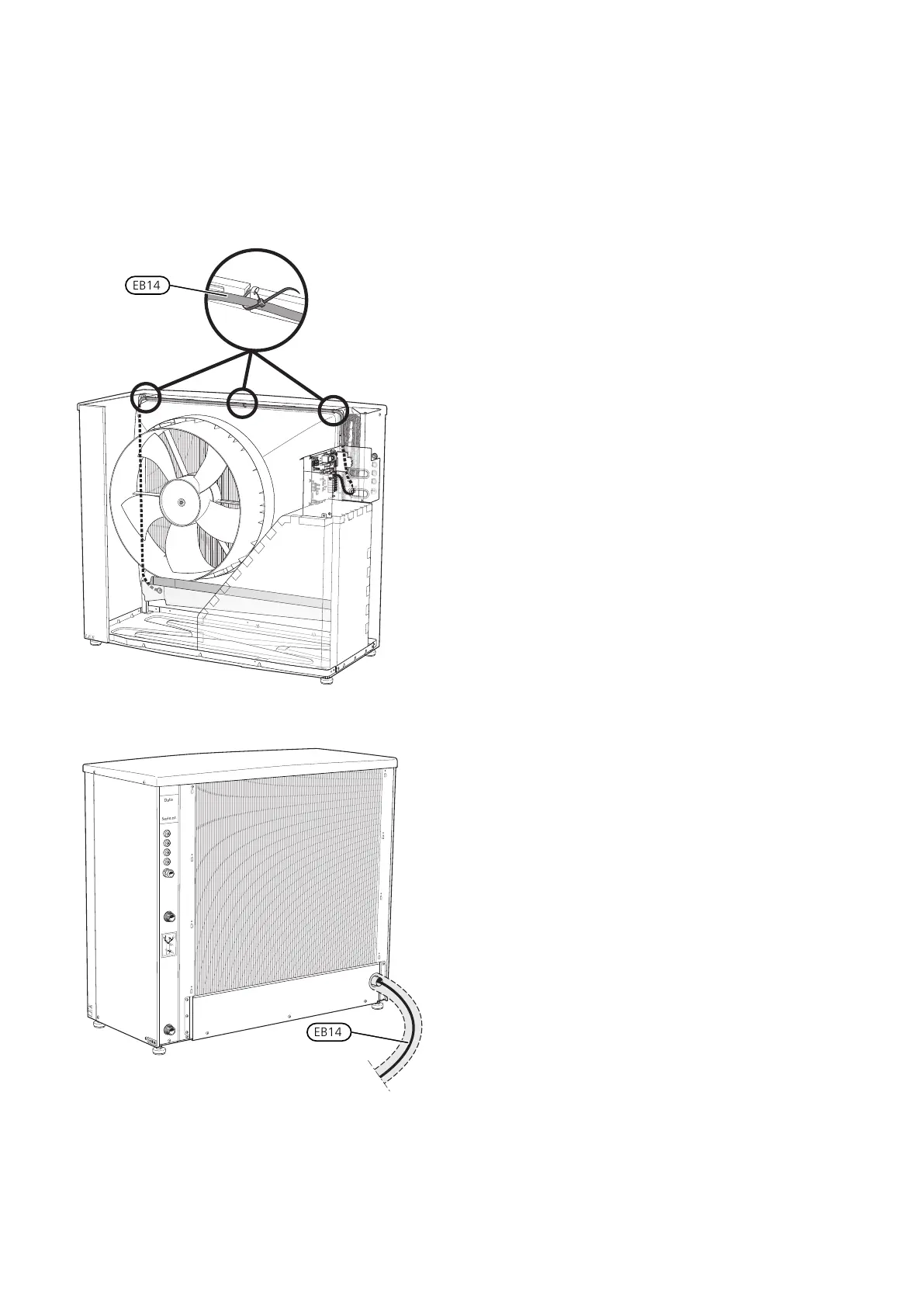

The following image shows recommended cable routing
from the distribution box to the condensation water
trough on the inside of F2120. Transition between the
electrical cable and the heating cable must occur after
the lead-in to the condensation water trough. The dis-
tance between the distribution box and the lead-in to
the condensation water trough is approx. 1,600 mm.
LEK
LE
K
Data
Serie.nr.
Ar
t.nr. 7
1145
3
O
U
T
IN
EB14
LEK
LE
K
Data
Serie.nr.
Ar
t.nr. 7
1145
3
O
U
T
IN
EB14
27Chapter 5 | Electrical connectionsNIBE F2120

Nibe F2120 Series Specifications

General

Type	Air/Water Heat Pump
Operating Temperature Range	-25°C to +45°C
Refrigerant	R410A
Max. Flow Temperature	65°C
Heating Capacity	8-20 kW
Power Supply	3-phase, 400V
SCOP	5.0 (Model dependent, refers to average climate, low temperature application)
