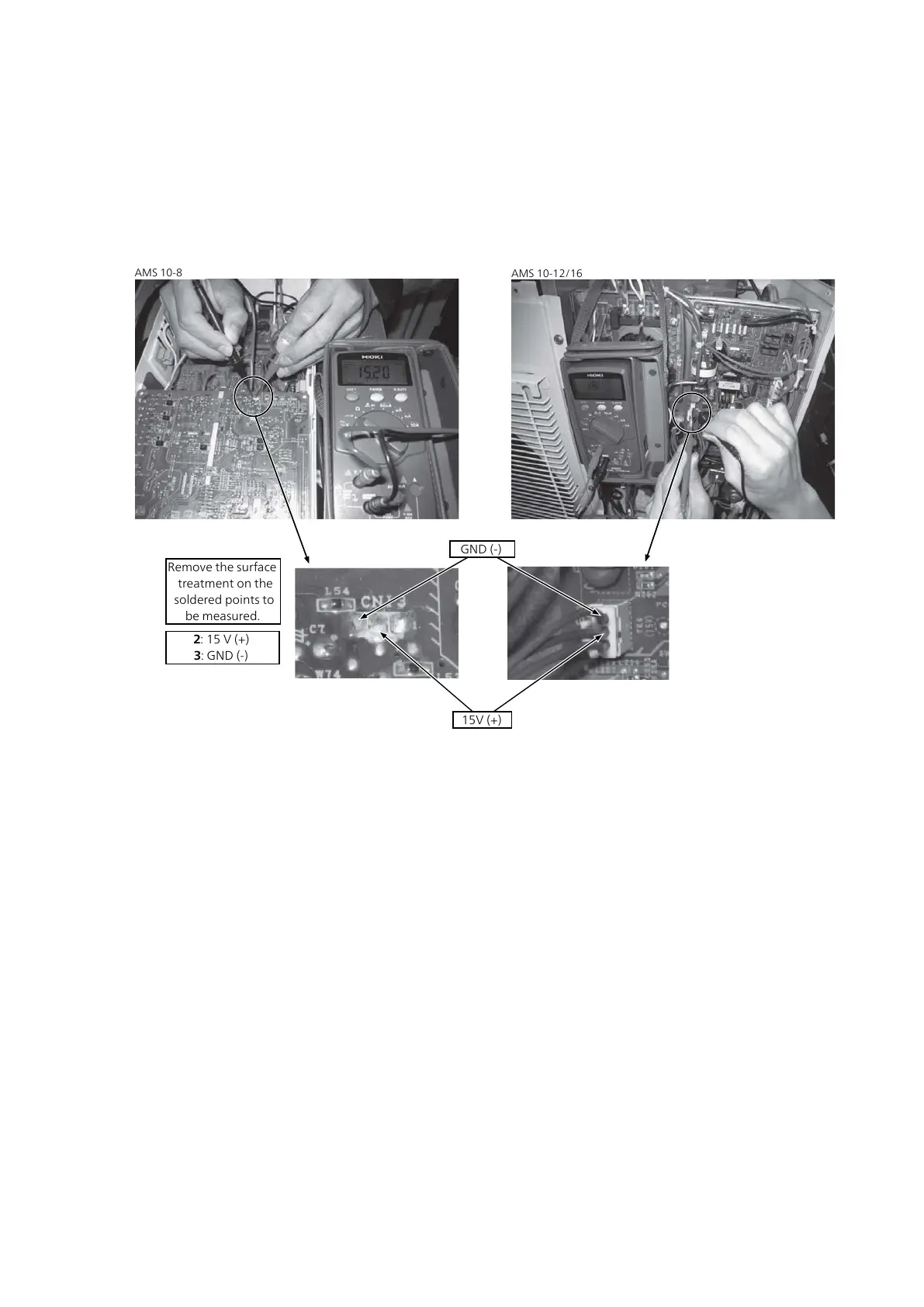

Measurement between CNI3:2-3 on the inverter board:
Remove the surface
treatment on the
soldered points to
be measured.
2: 15 V (+)
3: GND (-)
AMS 10-8
AMS 10-12/16
15V (+)
GND (-)
