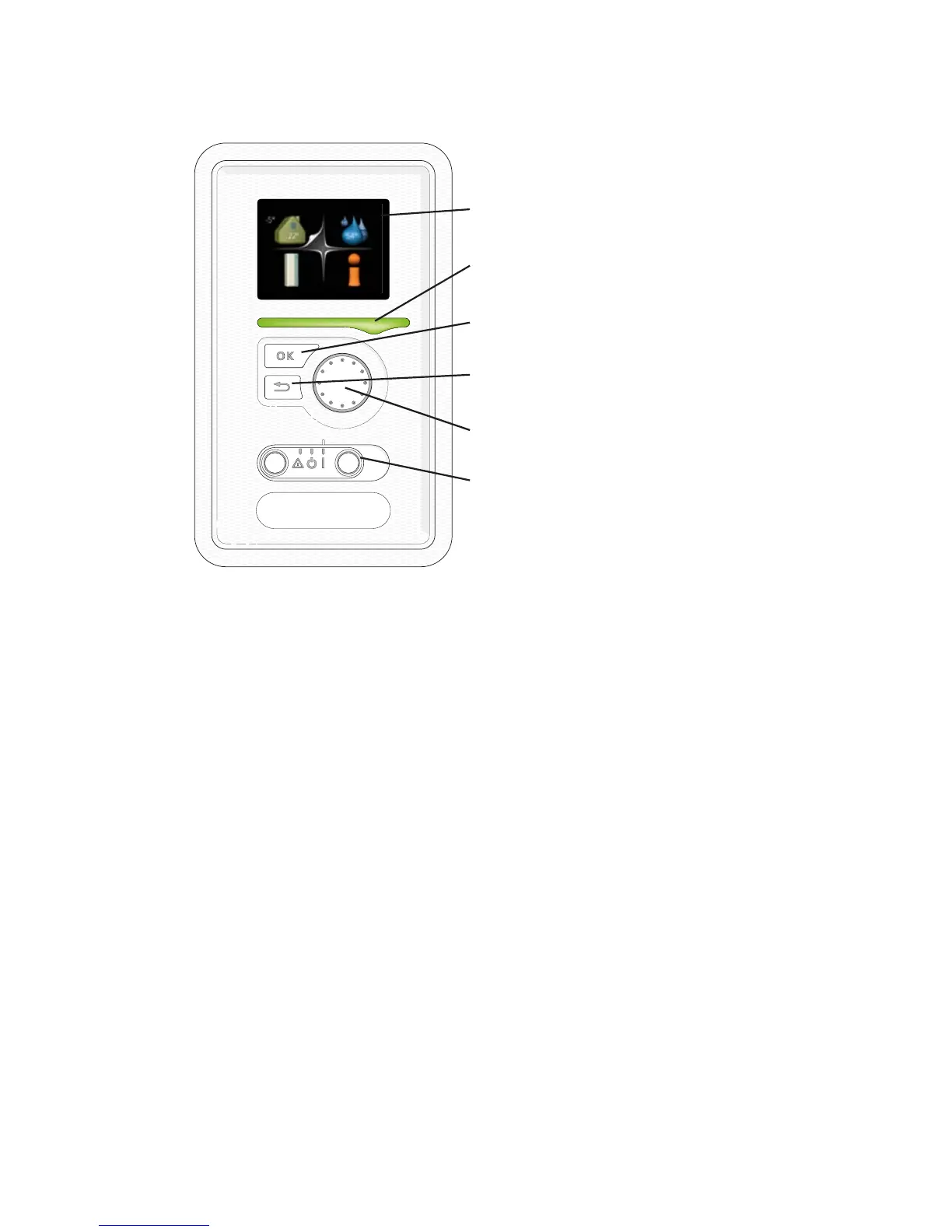

Display unit
$
%
&
'
(
)
'LVSOD\
6WDWXV ODPS
2. EXWWRQ
%DFN EXWWRQ
&RQWURO NQRE
6ZLWFK
,1'225 &/,0$7(
0< 6<67(0 ,1)2
+27 :$7(5
990 
There is a display unit behind the indoor module door, which is used to
communicate with VVM 310. Here you:
switch on, switch off or set the installation to emergency mode.
set the indoor climate and hot water as well as adjust the installation to
your needs.
receive information about settings, status and events.
see different types of alarms and receive instructions about how they
are to be rectified.
Display
Instructions, settings and operational information are shown on
the display. The easy-to-read display and menu system, facilitates
navigation between the different menus and options to set the
comfort or obtain the information you require.
A
Status lamp
The status lamp indicates the status of the indoor module. It:
lights green during normal operation.
lights yellow in emergency mode.
lights red in the event of a deployed alarm.
B
NIBE™ VVM 310Chapter 2 | The heating installation the heart of the house12
