Apollo 816 LA Linear Actuator
Installation Reference Manual
1010
1. Place gate in:
a) OPEN position for PULL-TO-OPEN conguration (Fig-4A).
b) CLOSED position for PUSH-TO-OPEN congurations (Fig-4B).
2. With actuator arm fully retracted, rotate entire actuator on the pivot arm around until the gate
bracket attached to the actuator is positioned on a supporting structure of gate.
3. Mark position of gate bracket on gate or clamp into position.
4

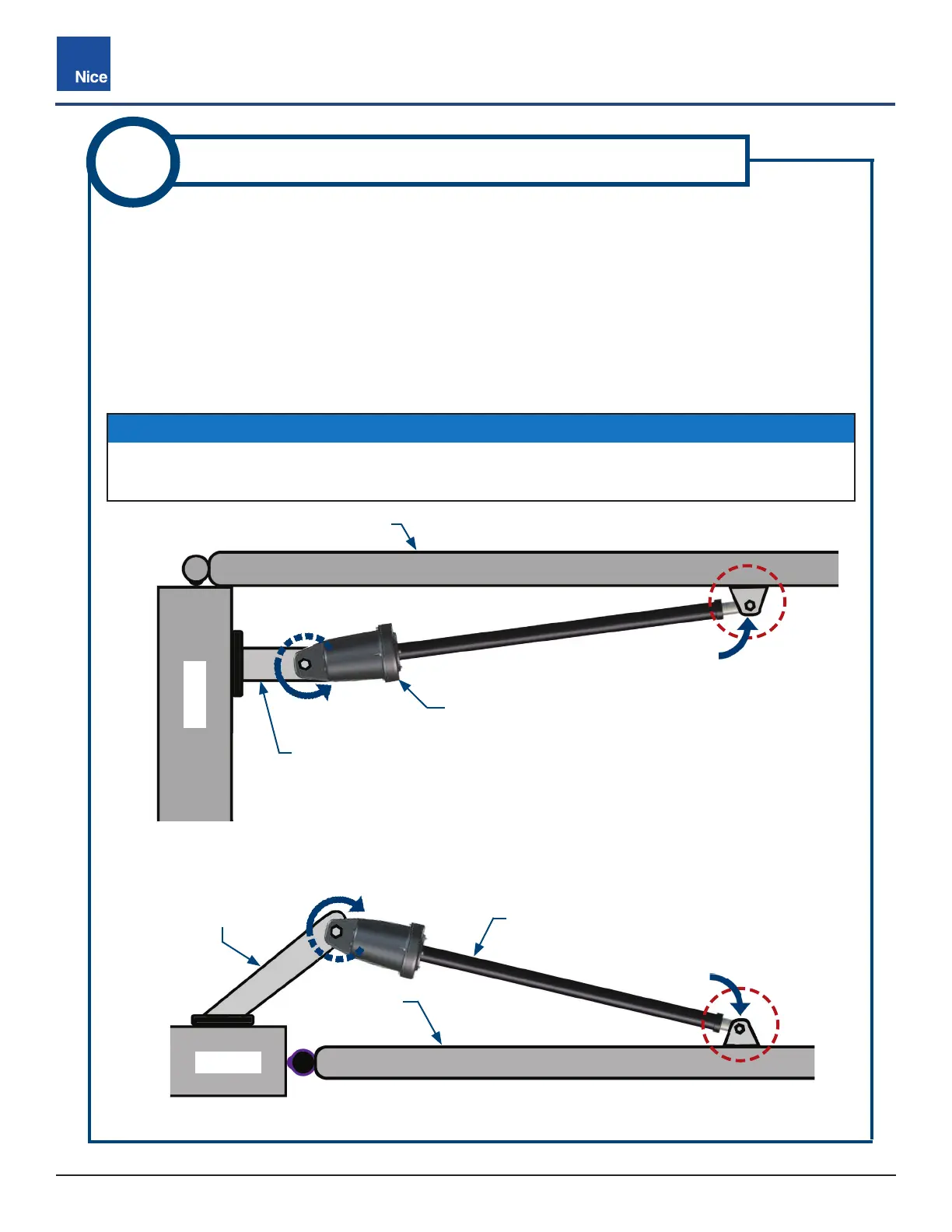

POSITION GATE BRACKET ON GATE
Fig-4B: Gate Bracket Location (Push-To-Open)
Fig-4A: Gate Bracket Location (Pull-To-Open)
ACTUATOR
(RETRACTED)
ACTUATOR
(RETRACTED)
PIVOT ARM
PIVOT ARM
WALL
WALL
GATE BRACKET
LOCATION
GATE BRACKET
LOCATION
GATE OPEN
GATE
CLOSED
NOTICE
Do not attach gate bracket to gate pickets. Attach only to structural supports. If unsure of exact
bracket location, tack weld or clamp until gate can be tested.
