Apollo 816 LA Linear Actuator
Installation Reference Manual
77

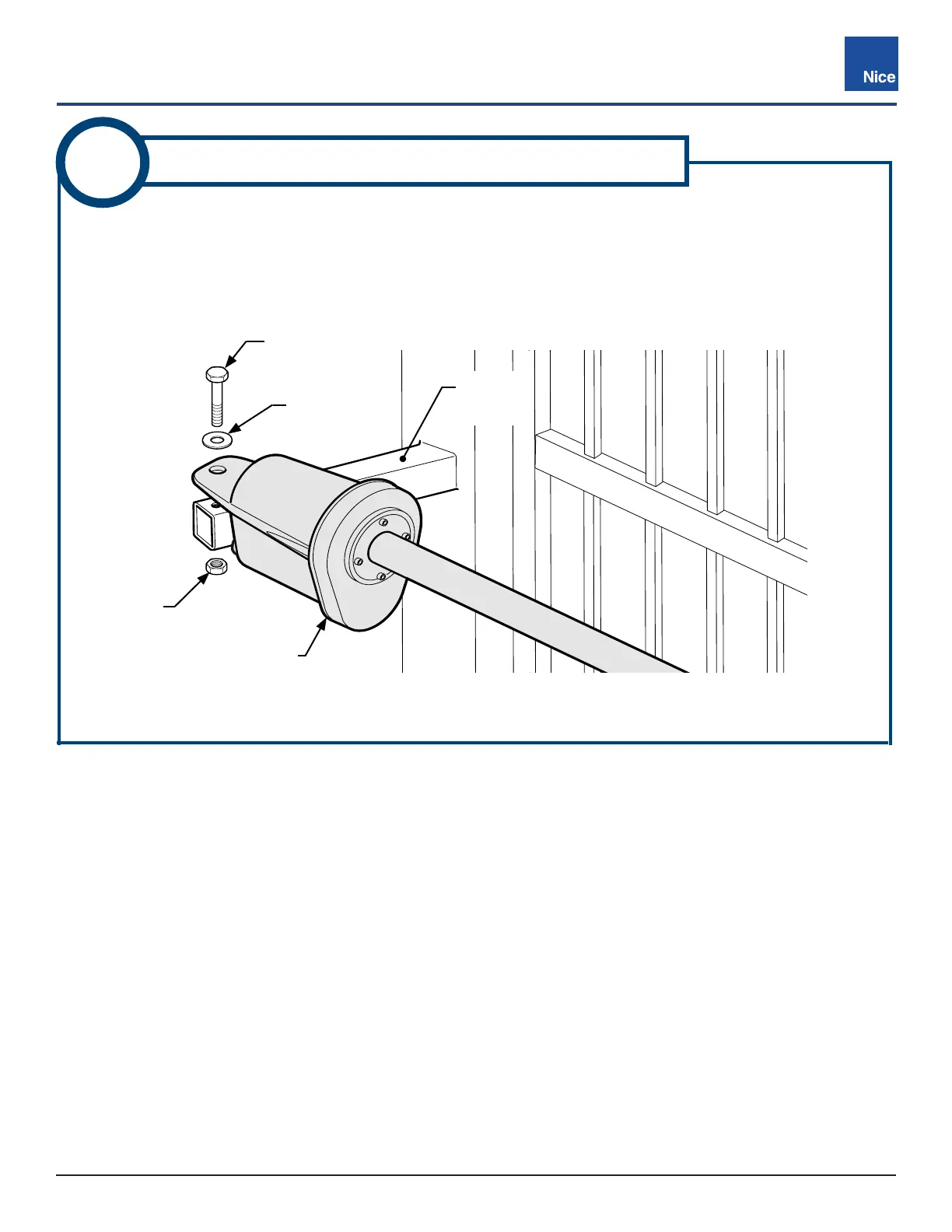

Fig-2: Actuator Installation
2
MOUNT ACTUATOR TO PIVOT ARM
LOCK
NUT
ACTUATOR
BOLT
PIVOT
ARM
WASHER
1. Mount the actuator to the pivot arm as shown (IMAGE 2-1). Note that the washer goes above the
actuator ange.
2. Tighten the lock nut to prevent movement or shifting when the actuator is running. This will also
prevent excessive “bounce” or “wobble” when the gate stops moving.
