Apollo 816 LA Linear Actuator
Installation Reference Manual
88

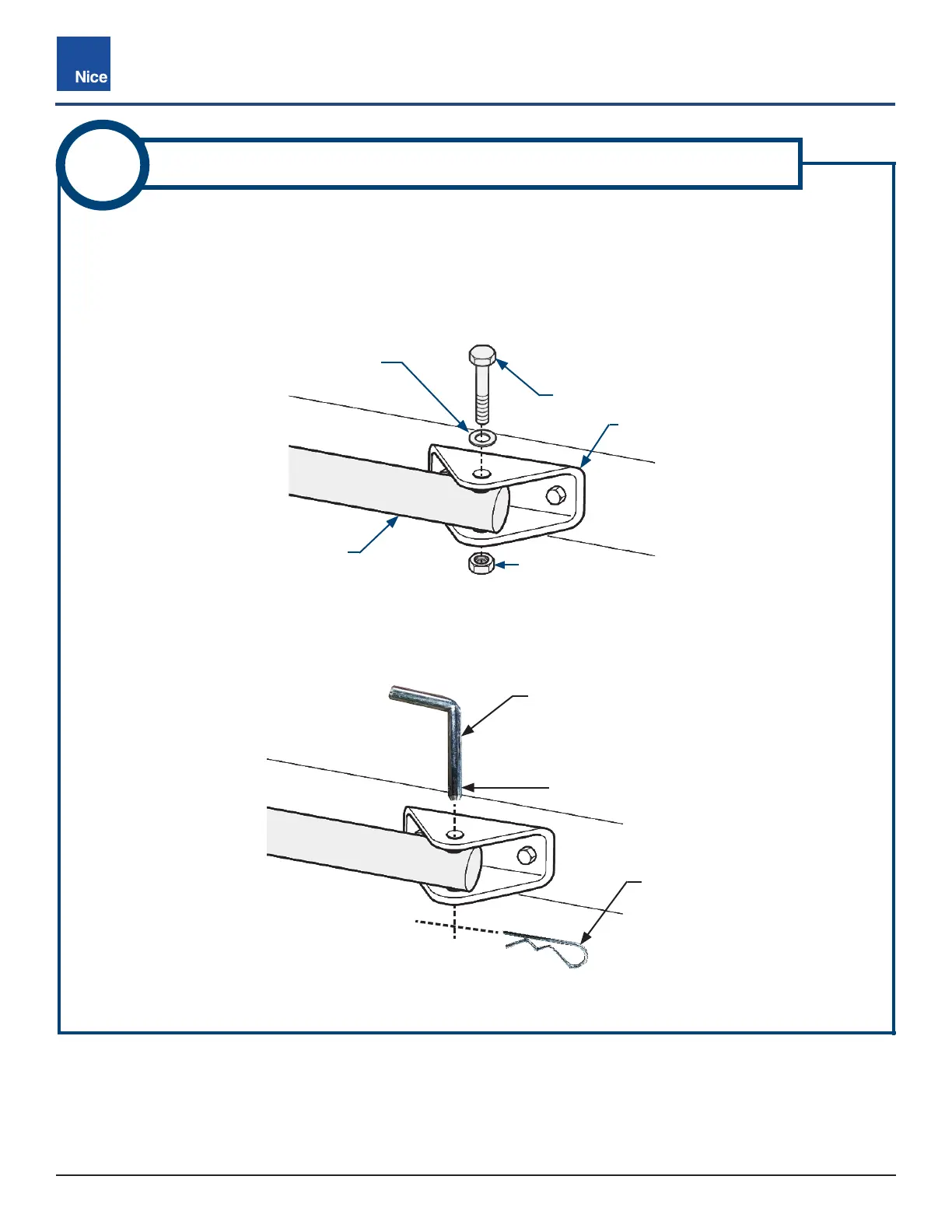

AFFIX GATE BRACKET TO ACTUATOR ARM
1/2”x 3” BOLT
GATE
BRACKET
ACTUATOR
ARM
1/2” WASHER
1/2” LOCK NUT
3
Fig-3A: Gate Bracket to Actuator Arm Using Bolt, Washer, & Nut
Fig-3B: Gate Bracket to Actuator Arm Using Hitch Pin and R-Clip
1. If security is of the utmost importance then the bracket may be connected to the actuator arm using
the 1/2” x 3” bolt, washer, and lock nut (Fig-3A).
2. However, to enable quick manual opening of the gate in case of power failure, it is recommended to
use the quick release hitch pin with R-clip (Fig-3B).
HITCH PIN
R-CLIP (INSERT INTO HITCH
PIN HOLE)
HOLE FOR R-CLIP
