CBOX1050
Installation and Programming Manual
1818
support.hysecurity.com
A
D
B C
F
G

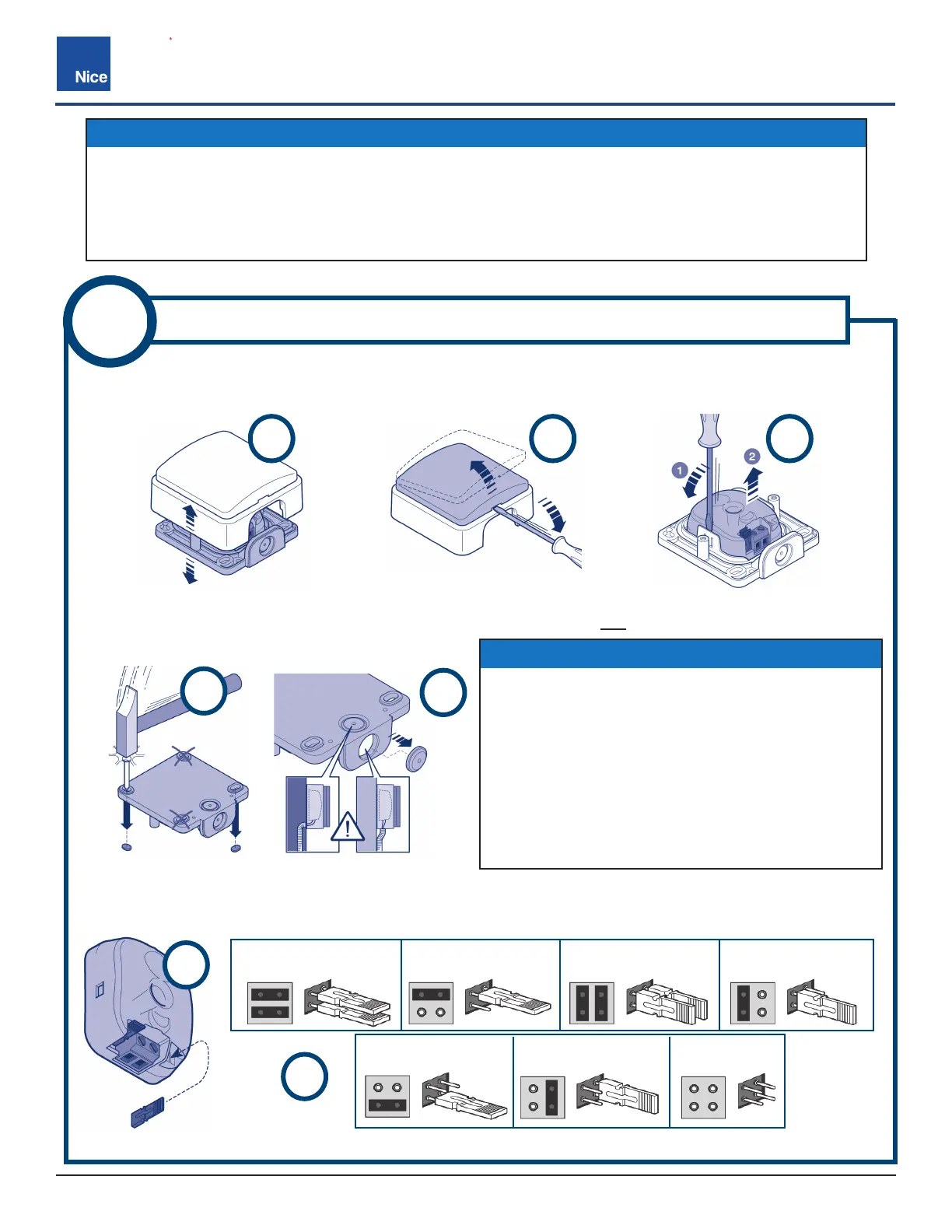

1. Remove top cover (A) and faceplate (B), then use screwdriver to remove inner assembly from bracket (C).
2. Knock out the four plastic tabs from mounting holes (D), then remove appropriate tab from wire entry hole
(E); knock out rear tab for running wire inside the mounting wall OR knock out bottom tab for running
wires out the bottom.
3. If more than one pair of photo eyes, configure jumpers so that each pair has a unique jumper setting (six
maximum). Stow unused jumpers in slots on photo eye rear (F). See note above.
4
PREPARE BLUEBUS PHOTO EYES FOR INSTALL
E
P1
Close Direction
P5
Open Direction
P6
Open Direction
P2
Close Direction
P3
Close Direction
P4
Close Direction
NOT USED
NOTICE
Each pair of photo eyes wired to the same gate operator
must use a dierent jumper configuration for each pair
(six maximum). Photo eye jumper settings perform as
follows (refer to IMAGE 3-1 and G, below):
’ P1/P2 = Hold gate open - reverse gate if closing.
’ P3/P4 = Hold gate open - stops gate if closing and
reverses back open when eye is cleared.
’ P5/P6 = Keep gate from opening - reverse gate back
closed.
IMPORTANT!
The 1050 control board will not operate without at least one monitored and functioning safety device
connected to the control board. Before power is connected to the control board, install either the
BlueBUS through-beam photo eyes per the instructions below or an alternative photo eye, such as
the reective EMX NIR-50-325 photo eye (per the instructions provided separately) before attempting
to apply power to the control board. Note that some kits include only the EMX NIR-50-325 photo eye.
