16

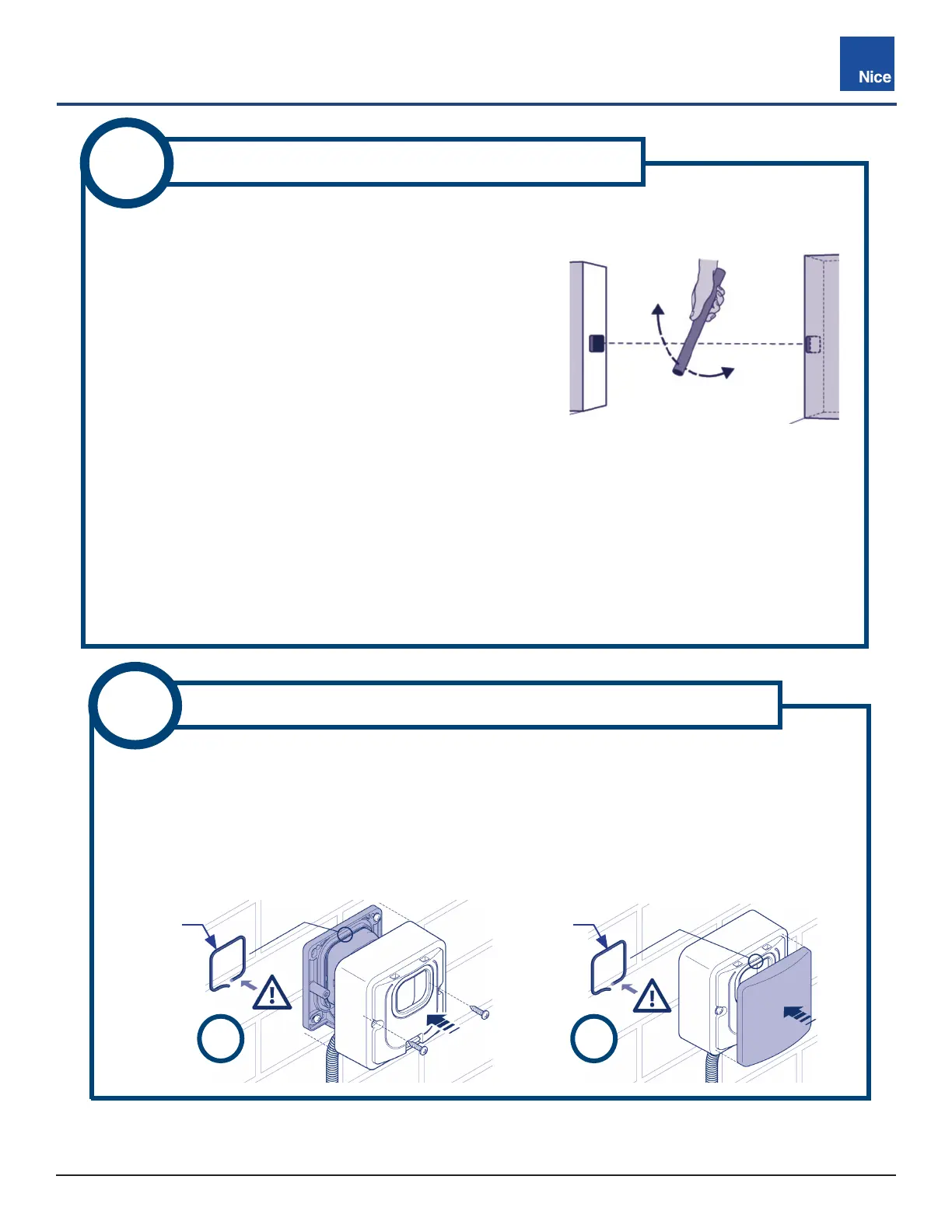

BLUEBUS PHOTO EYE TESTING
Photo eyes must be tested after power is applied to the control board to ensure proper operation:
1. Apply power to control board and ensure BlueBUS
devices are detected and functioning.
2. Press the gate OPEN or CLOSE button on the control
board to set gate in motion for each test.
3. Use a hand held cylinder of approx. 2” (5cm) diameter
and 12” (30cm) in length and pass between photo eye
line of sight as follows:
a) Pass cylinder through line of sight near transmitter.
b) Pass cylinder through line of sight near receiver.
c) Pass cylinder through line of sight halfway between transmitter and receiver.
4. Each time the line of sight between transmitter and receiver is obstructed, the gate motion should
immediately stop, then reverse direction.
5. If the gate does not react properly when photo eye line of sight is blocked, refer to INSTRUCTION
14 to determine the problem and applicable action.
A
B
If photo eyes have been tested and are working correctly, photo eye installation may be completed
as follows:
1. Ensure rubber rear gasket is in position, then a󰀩x photo eye cover to assembly with hardware (A).
2. Ensure rubber front gasket is in position, then snap in face plate (B).
17
BLUEBUS PHOTO EYE FINAL ASSEMBLY
IMAGE 17-1: CYLINDER TESTING
FRONT
GASKET
REAR
GASKET
