CBOX1050
Installation and Programming Manual
3232
support.hysecurity.com
18
INSTALLING THE AUDIO ALARM
19
OXIBD/A RECEIVER INSTALLATION AND USE
1. The alarm has short leads but may be located inside the
box without wiring in additional cable.
2. Locate the alarm output connector per IMAGE 18-1.
3. Connect red wire to Pin 14 (Alarm), and black wire to Pin
15 (GND).
4. In the event of a hard shutdown, be sure to determine
the problem before resetting the shutdown (pressing the
RESET Button on the control board).
ALARM OUTPUT
CONNECTOR

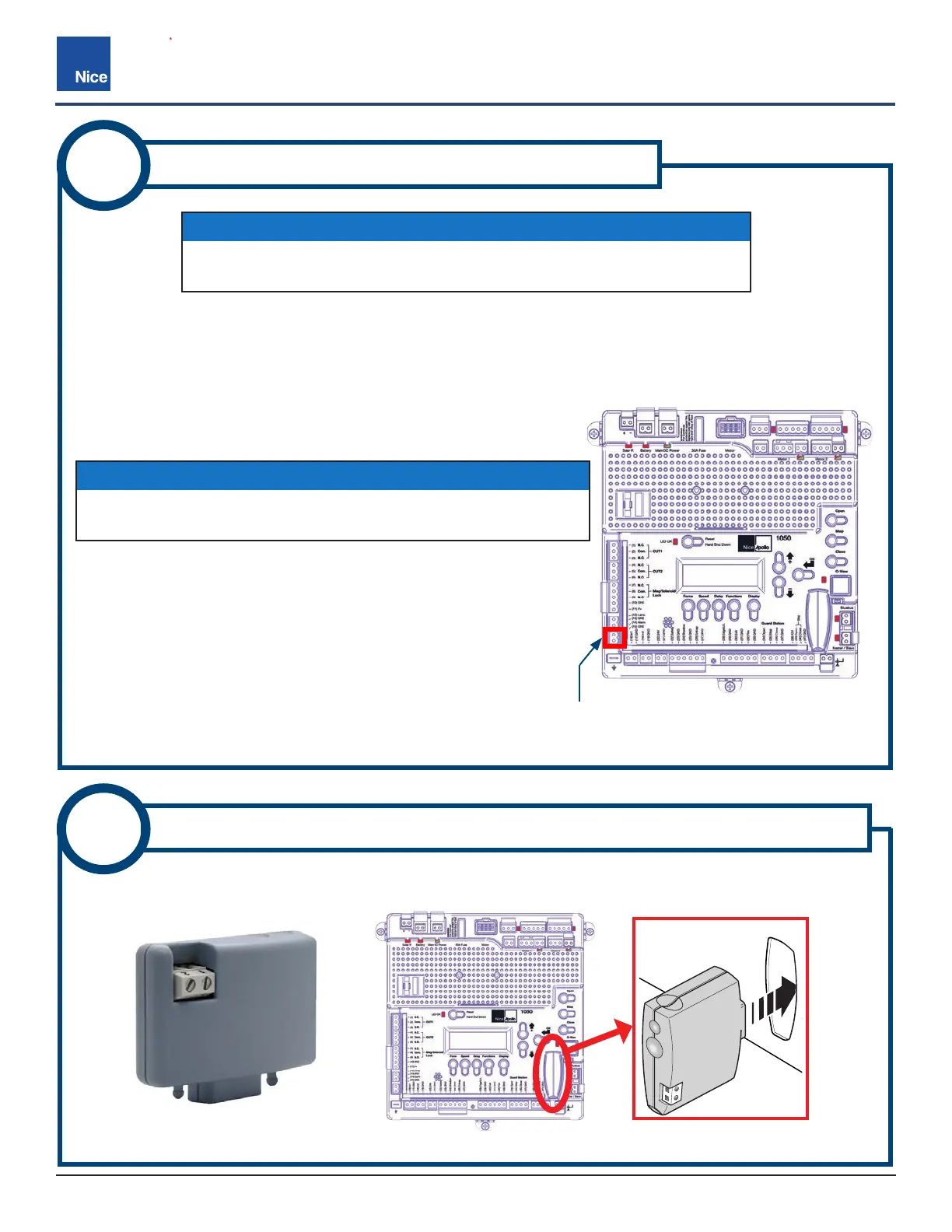

IMAGE 18-1: ALARM OUTPUT
ON CONTROL BOARD
IMAGE 19-1: OXIBD/A RECEIVER MODULE APPEARANCE AND LOCATION
DETAIL C
The audio alarm (siren) included in the kit must be connected to the 1050 control board to provide an
audible alarm to indicate a hard shutdown of the system, which is triggered by two consecutive entrapment
events. It is a piezoelectric device that can produce a minimum of 100 dB @ 1 foot from enclosure per UL
code of continuous sound and is powered by 3-12 VDC. Install as follows:
If the OXIBD/A receiver is not already installed, plug into the 1050 controller as shown below.
NOTICE
If using additional cable length for installation of alarm external to
the control box, maximum wire/cable length is 1000 feet (308.4m).
IMPORTANT!
The installer MUST connect the included audio alarm per these instructions.
Installing the audio alarm is REQUIRED for UL325 compliance.
To Next Page
