Receivers with terminals:

Receivers with terminals are universal in their use. The container, which can be fixed with screws or

using the adhesive on the bottom, provides the circuit with good protection.

Wire up following this sequence:

1-2: POWER: from 10 to 28 V direct or alternate.

3-4: 1st RELAYOUTPUT: free contact of a normally open relay.

5-6: 2nd RELAY OUTPUT: free contact of a normally open relay (only on 2-channel receivers).

1-2: AERIAL: aerial signal input.

12345612

FLOX1R

FLOX2R

FLOXB2R

AERIAL

RELAY OUTPUT

POWER

POWER SUPPLY

SELECTOR

15 - 28 V

10 - 18 V

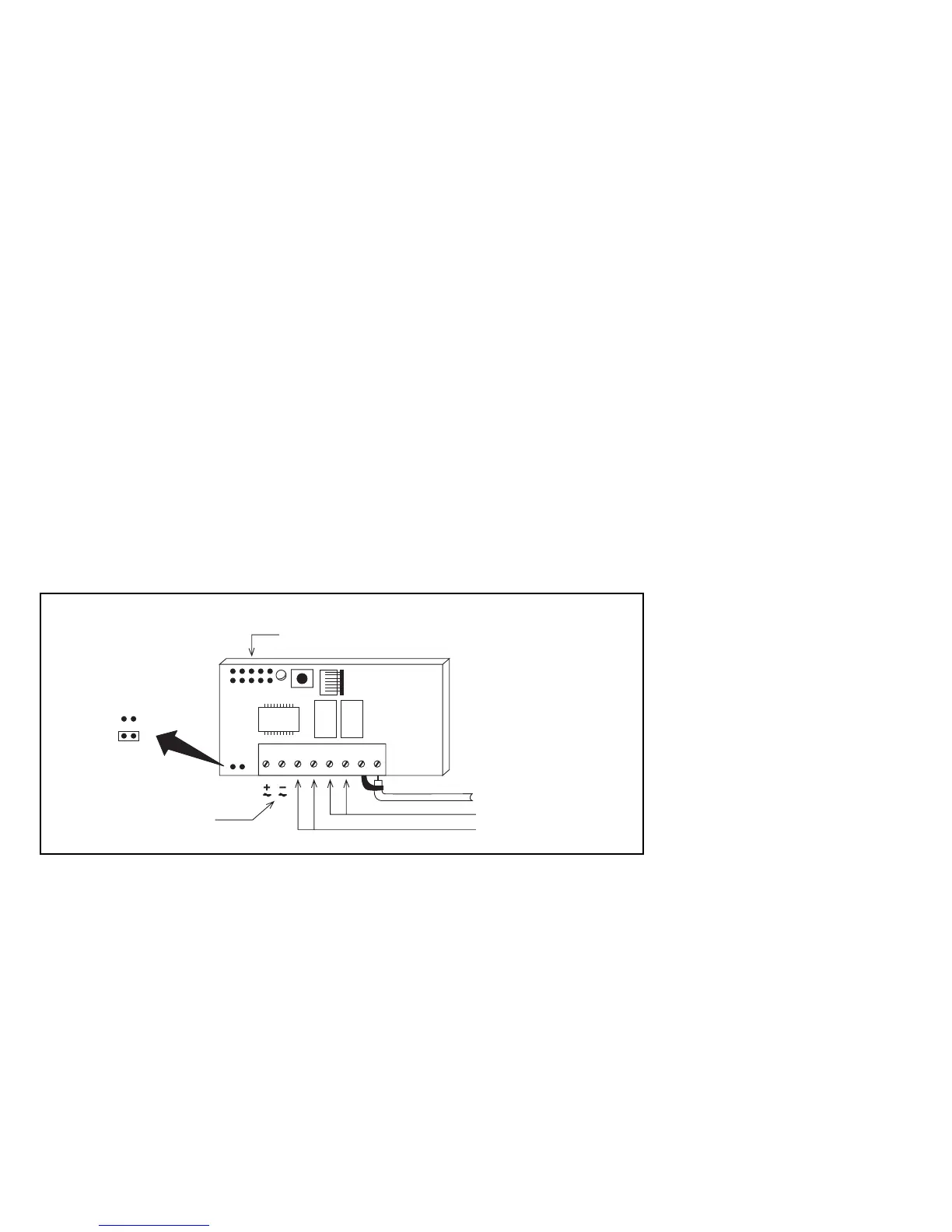

Fig. 2

CHANNEL SELECTION
