Nice UDL 2 - Page 12

12 – English
EN
Door enabling
Service LED
Signalling horn
Control button
Master module
Main switch
Main switch
ECC network input
Input protection
device
Loading ramp
lighting
Slot for Shelter module
External traffic lights
Internal traffic lights
Hydraulic valve 3
Hydraulic valve 2
Hydraulic valve 1
Hydraulic motor
Operation and fault indicator
Micro controller
Customisation module (PEEP)
Ramp enabling
Fuse 6,3 HV

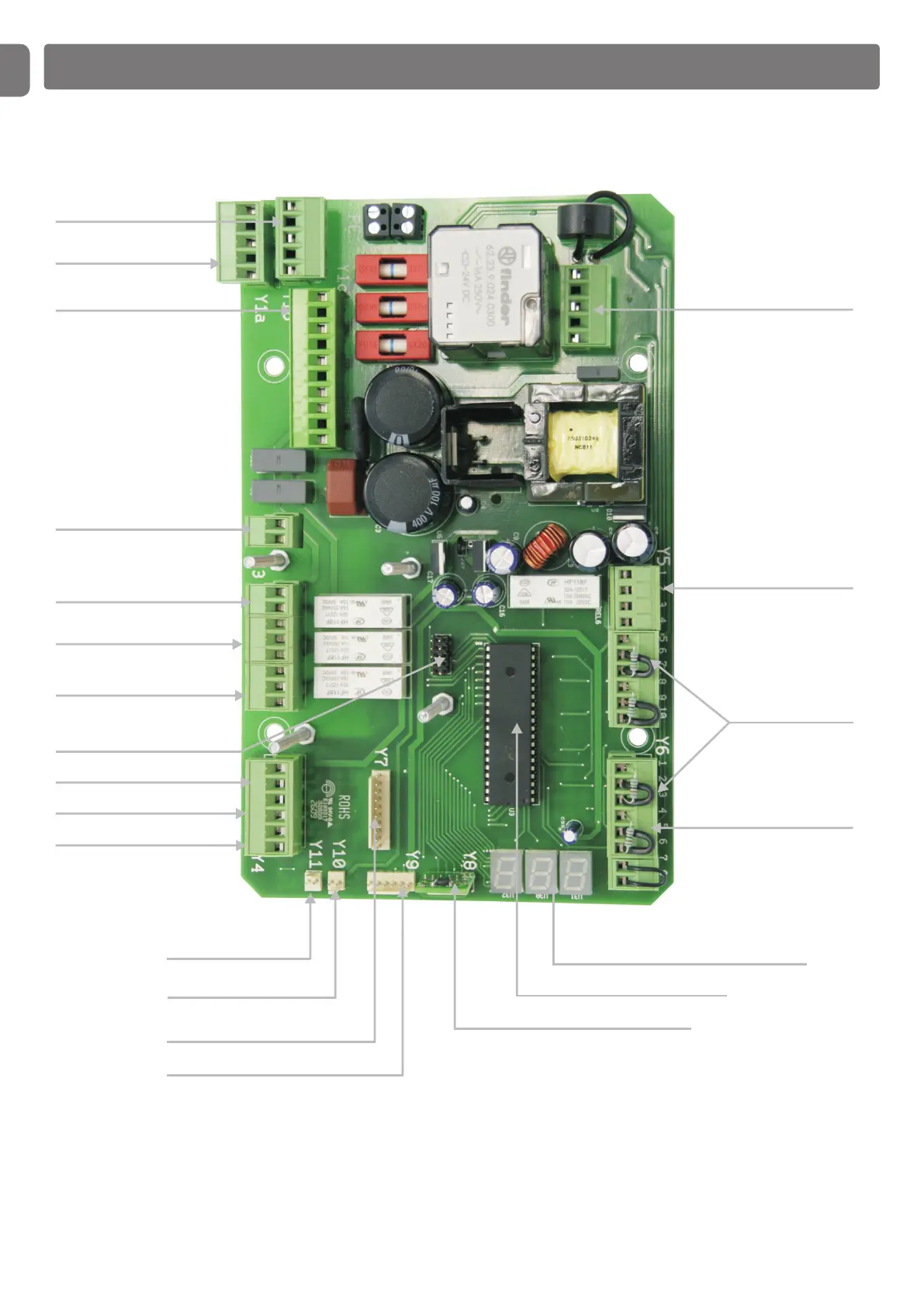

UDL 2 BOARD OVERVIEW
