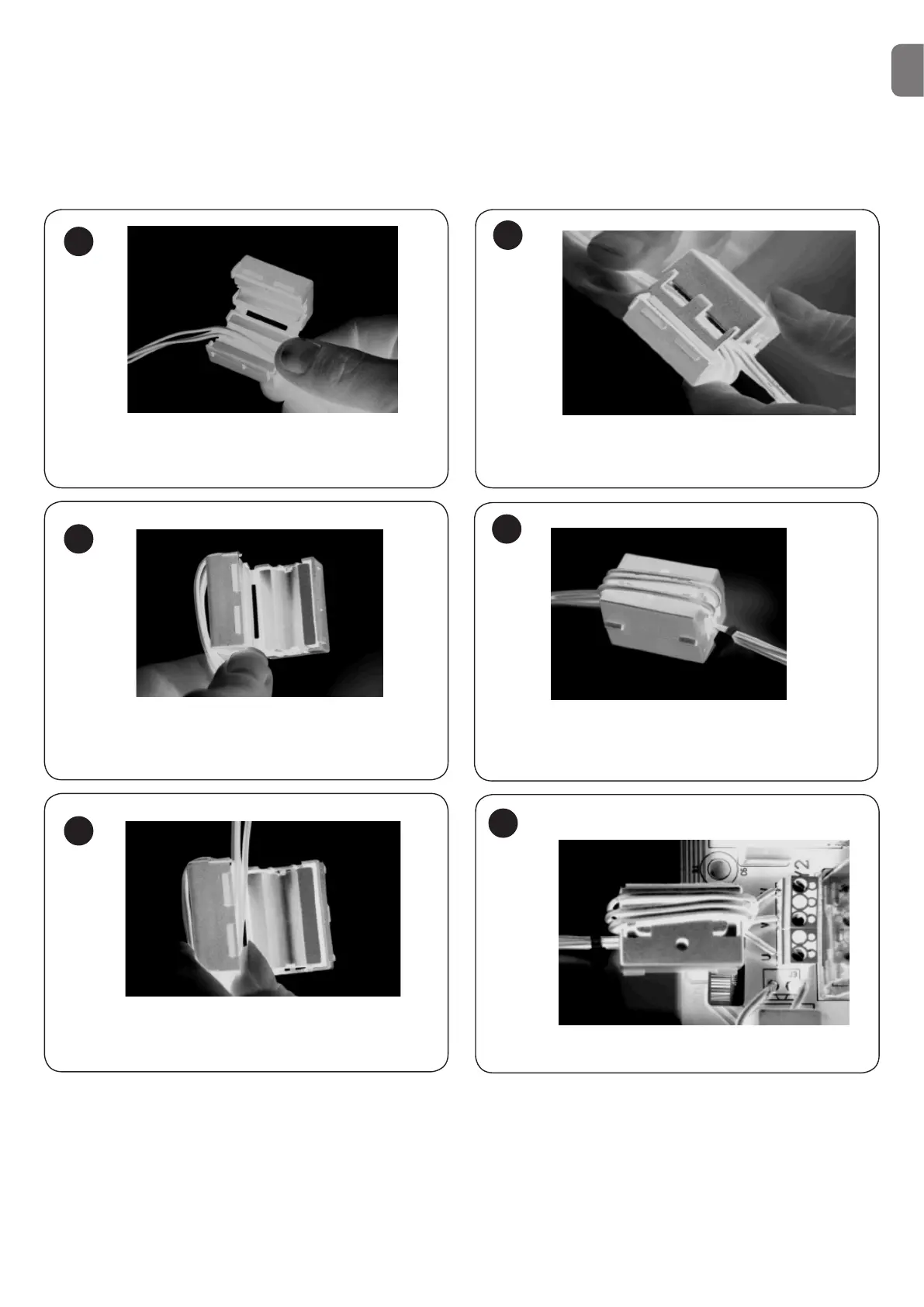

Ferrite connection to the motor connection cable (fig. 6-11)
It is necessary to connect a FERRITE to the motor connection cable.
To do this, insert three black wires in the ferrite as shown in figure, wrap them around the ferrite once and make the connection. (Now there
are 6 wires in the ferrite!)
Pass the PE cable next to the ferrite, WITHOUT crossing it!
Connect the wires to the U V W and PE motor terminals.
Fasten the wires with a wiring clip behind the ferrite.
