24 Digitax ST Installation Guide
Issue: 7

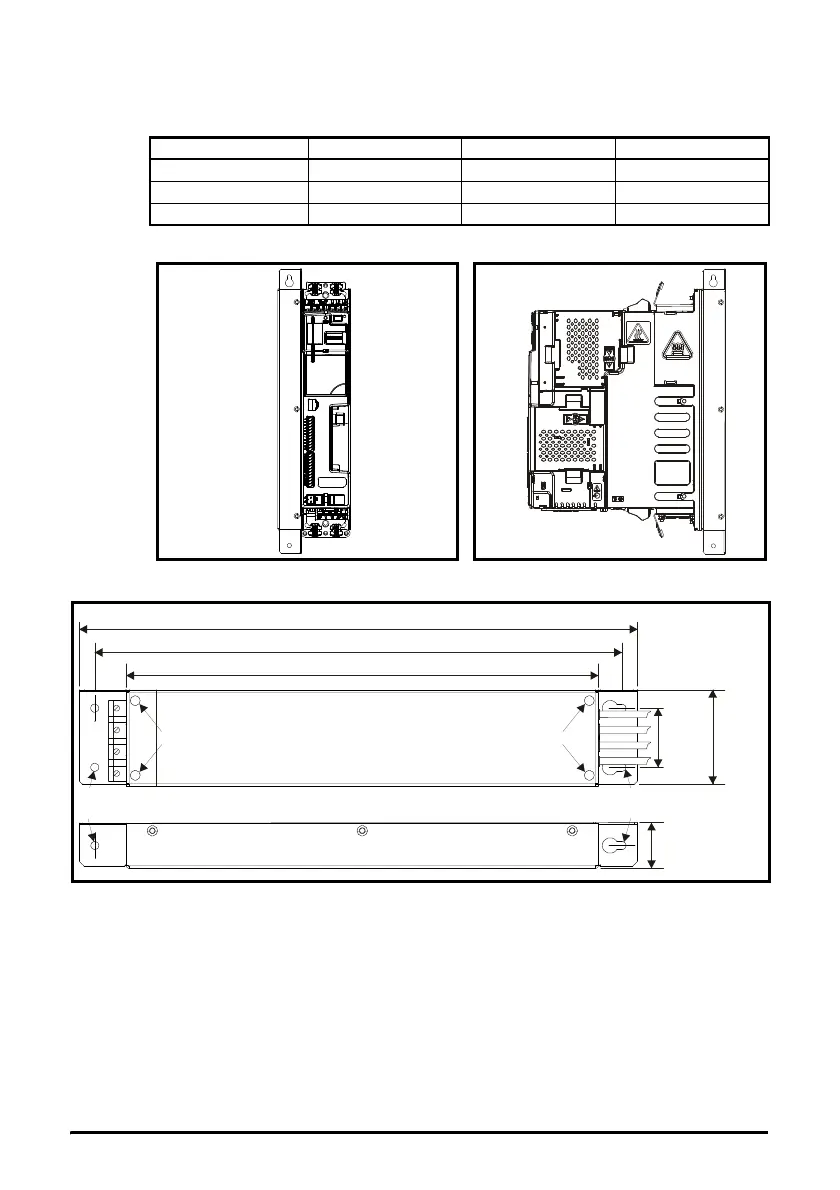

3.7 External EMC filter
There are three variants of external EMC filters available for the drive.
Table 3-3 Drive EMC filter details
Figure 3-12 Optional external EMC filter dimensions (all variants)
Figure 3-12 shows a 3 phase filter. For a single phase filter, there are only 3 input
terminals (L1, N, ground) and 3 output cables (L1, N, ground).
Drive No. of phases CT part no. Schaffner part no.
DST120X 1 4200-6000 FS23072-19-07
DST120X 3 4200-6001 FS23073-17-07
DST140X 3 4200-6002 FS23074-11-07
Figure 3-10 Bookcase mounting Figure 3-11 Footprint mounting
359mm (14.13in)
339mm (13.35in)
304mm (11.97in)
38mm
(1.50in)
61mm
(2.40in)
M5 M5
Torque settings of connector = 0.8 N m
∅
5.3mm (M5)
(0.21in)
