Nidec Digitax ST Series User Manual

14 Digitax ST Installation Guide
Issue: 7
2.4 Features of the drive

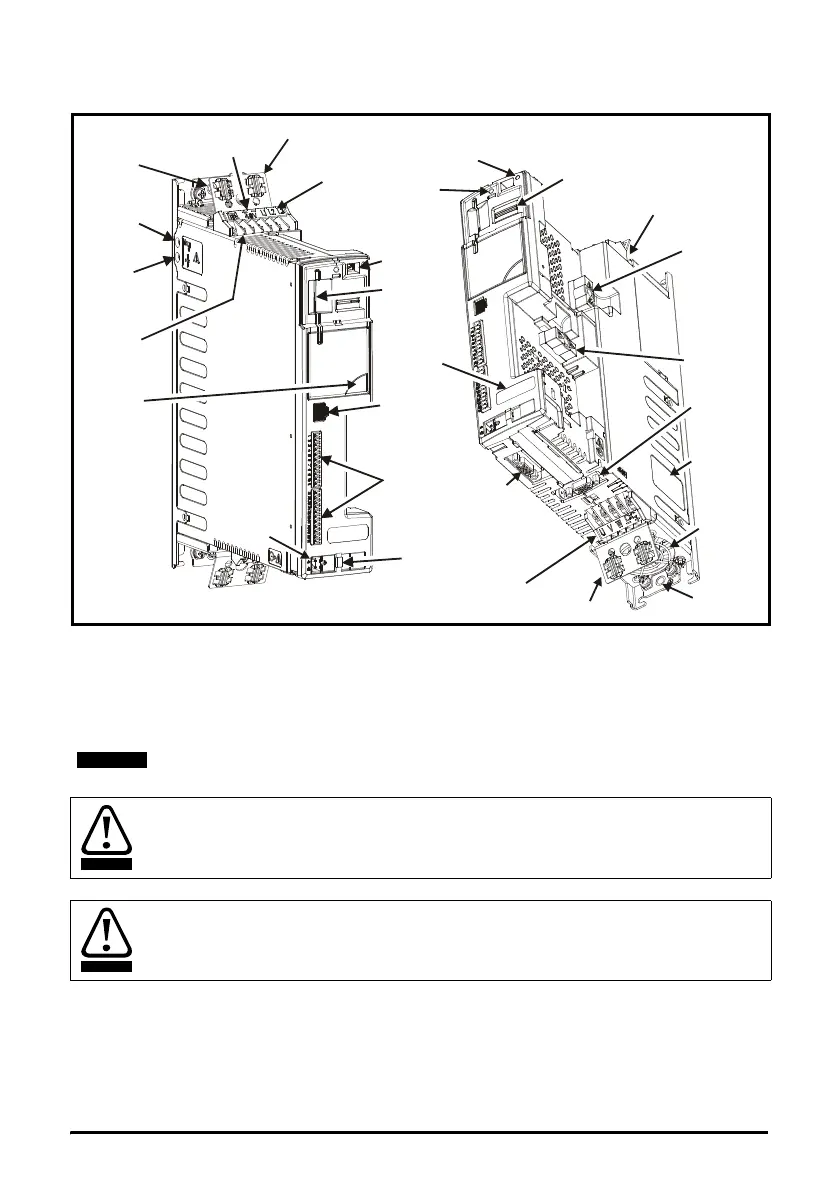

Figure 2-2 Features of the drive
*
The Marker Tag (as shown in Figure 2-2 above), is where markers can be placed to identify
a particular drive which can prove beneficial where several Digitax ST drives are located in
the same panel.
** A drive reset can be performed even when a keypad is not installed, by pressing the
recessed reset button.
Solutions
Module
slot 2
cover
Solutions
Module
slot 1
cover
Buffered
encoder output
Encoder In
connection
Motor
connections
Line to
ground
varistor
screw
AC supply
48V connection
(for low voltage
DC operation)
Braking
resistor
connections
SMARTCARD
slot
Serial port
connector
Control
terminals
Relay
terminal
Keypad
connection
EMC bracket
Ground
screw
EMC bracket
Ground
screw
Status LED
Marker tag
location
*
Internal
EMC
filter
screw
Rating
label
Approvals
label
Brake
resistor slot
Reset
button
**
Fan
Control cable
strain relief
Product
identifier
The drive is supplied with a SMARTCARD installed. Do not remove until after first power-
up, as defaults are stored on the SMARTCARD.
Be aware of possible live terminals when inserting the SMARTCARD.
NOTE
WARNING
Static precautions must be observed when removing the Solutions Module slot covers.
WARNING
