Parameters in mode 1 (Digital Tachometer Mode)
Parameters in mode 2 (Elapsed Timecounter Mode)
Parameters in mode 4 (Flowmeter Mode)
Parameters in mode 3 (Time width meter Mode)
No. Setting item Description Input range Default value
P1 Pulse count per revolution Enter the pulse count per revolution for the rotary encoder, etc. 1 - 9999 P/r 1P/r
P2
Setting revolution speed
(detection section)
Revolution speed in the detection section 1 - 99999rpm 1000rpm
P3
Value to be displayed
(with decimal point)
Actual value to be displayed on the panel in the above
revolution speed
0.00001 - 999999rpm 1000rpm
P4 Display cycle Sets the display update cycle 0.2/0.5/1.0/2.0/5.0/10/15/30/60 sec. 1.0
P5 Auto zero time
*1
Sets the time from when the input pulse is gone to when the
display becomes "0".
0.1 - 150 sec. 6.0 sec.
P6 Input lter
*2
Selects a minimum frequency that is larger than the maximum
frequency of the input signal. 0.02kHz for the contact input
10/30/100/0.02kHz 10kHz●
No. Setting item Description Input range Default value
P1 Pulse count per revolution Enter the pulse count per revolution for the rotary encoder, etc. 1 - 9999 P/r 1P/r
P2
Setting revolution speed
(detection section)
Revolution speed in the detection section 1 - 99999rpm 1000rpm
P3
Value to be displayed
(Hour:Minute:Second display
system)
Actual value to be displayed on the panel in the above
revolution speed
0:00:01 - 9:59:59
10:00
(second display
system)
Value to be displayed
(second display system)
0:01 - 999:99
P4 Display cycle Sets the display update cycle 0.2/0.5/1.0/2.0/5.0/10/15/30/60 sec. 1 sec.
P5 Auto zero time
*1
Sets the time from when the input pulse is gone to when the
display becomes "0".
0.1 - 150 sec. 6 sec.
P6 Input lter
*2
Selects a minimum frequency that is larger than the maximum
frequency of the input signal. 0.02kHz for the contact input
10/30/100/0.02kHz 10kHz●
No. Setting item Description Input range Default value
P1
Number of blades per
revolution
Sets the number of blades per revolution 1 - 99●(1 when the number is unknown) 1
P2
Capacity per sensor blade
(cc, ℓ, etc.)
Enter the capacity per blade that the sensor can read. 0.0001 - 99999 1.0
P3 Scaling Unit coecient value 0.00000 - 999999 1
P4 Decimal point display Designates the decimal point position 0.00000 - 00000.0 00000.0
P5 Display cycle Sets the display update cycle 0.2/0.5/1.0/2.0/5.0/10/15/30/60 sec. 1 sec.
P6 Auto zero time
*1
Sets the time from when the input pulse is gone to when the
display becomes "0".
0.1 - 150 sec. 6 sec.
P7 Input lter
*2
Selects a minimum frequency that is larger than the maximum
frequency of the input signal.
0.02kHz for the contact input
10/30/100/0.02kHz 10kHz●
No. Setting item Description Input range Default value
P1
Hour/minute/second and 1/100
second display systems
Selects the time display method.
0:00:00
(hour:minute:second display system)
/ 0:00(1/100 second display system)
1/100
second display
system
P2 Measurement section
Selects the measurement time, i.e. during input signal ON or OFF. 0(when OFF)/1(when ON) 1 ●ON●
P3 Auto zero time
*1
Sets the time from when the input pulse is gone to when the
display becomes "0".
0.1 - 3600 sec. 3600 sec.
P4 Input lter
*2
Selects a minimum frequency that is larger than the maximum
frequency of the input signal.
10/0.02kHz 10kHz●
*1 About the auto zero time
*2 Input lter
When the input pulse becomes 0Hz during the measurement, and the auto zero time is elapsed, the display is reset to zero.
Set the input lter with the larger value than the input signal frequency.
Note) When the duty of the input signal (proportion of the ON time in one cycle) is low, the signal may be attenuated and the pulse may not be received
normally even if you set the lter with a larger value than the input frequency. When this occurs, set the lter with an even larger value.
Example) When the 15kHz signal is input, set the 30kHz lter.
*In mode 2 and mode 3, the zero reset display is “-.-.:-.-.:-.-.”.
*When a smaller value than the input pulse cycle is set as the auto zero
time, the auto zero function is activated for every pulse, which disables
the normal measurement.
表表表
表表表表表
0
表表表表表表 表
表表表表表表
表表表表表 0
22.

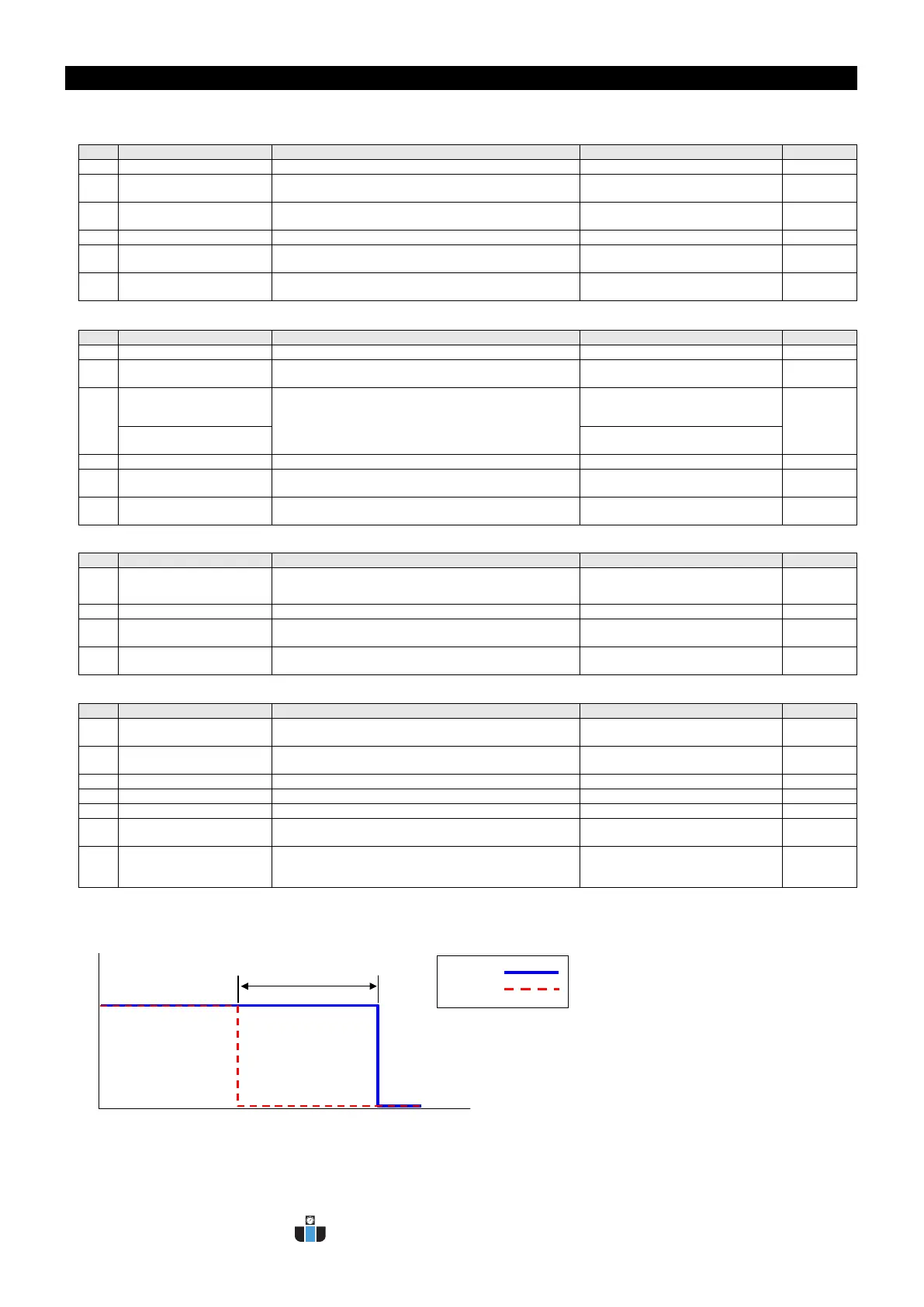

Parameter List
The following parameters can be set in each mode.
Auto zero time
Input pulse 0
Input pulse
Display value
Zero reset
