10
Normal display
Mode setting
Finish setting
The main display shows “0”.
Note) If you change the mode settings, each parameter, function, and high and low set point 1 setting value will return to the factory default setting value.
* For the description about the parameter functions, refer to page 20.
No. Setting item Setting range
Default setting value
Numerical value to be set according to the above example
Display Description
P1 Pulse count per revolution 1 - 9999p/r _ _ 0001 1p/r 60p/r Enter the pulse count of the rotary encoder.
P2
Revolution speed in the detection
section
1000 - 99999rpm _01000 1000rpm 1200rpm Enter the revolution speed of the rotary encoder.
P3
Value to be
displayed
Hour:Minute:
Second
display system
0:00:01 - 9:59:59
_010:00 10:00 sec.
Hour:Minute:Second
display system
0:01:47
Refer to the above "Setting example".
Second display system
0:01 - 999:99
P4 Display cycle
0.2/0.5/1.0/2.0/
5.0/10/15/30/60 sec.
_ 1.0 _ 1 sec. 1 sec.
Measure using the default setting value as no special
instruction is provided.
P5 Auto zero time 0.1 - 150 sec. _ _ 006.0 6.0 sec. 6 sec.
Measure using the default setting value as no special
instruction is provided.
P6 Input lter 10/30/100/0.02kHz _ 10_ 10kHz 30kHz As the rotary encoder is used as a sensor, select "30".
1●2●3●4
99
Select "2".
0
-
0 1
-
-
0 2
-
0: 0 0
Every time you press the key, the
display switches to the next mode No.

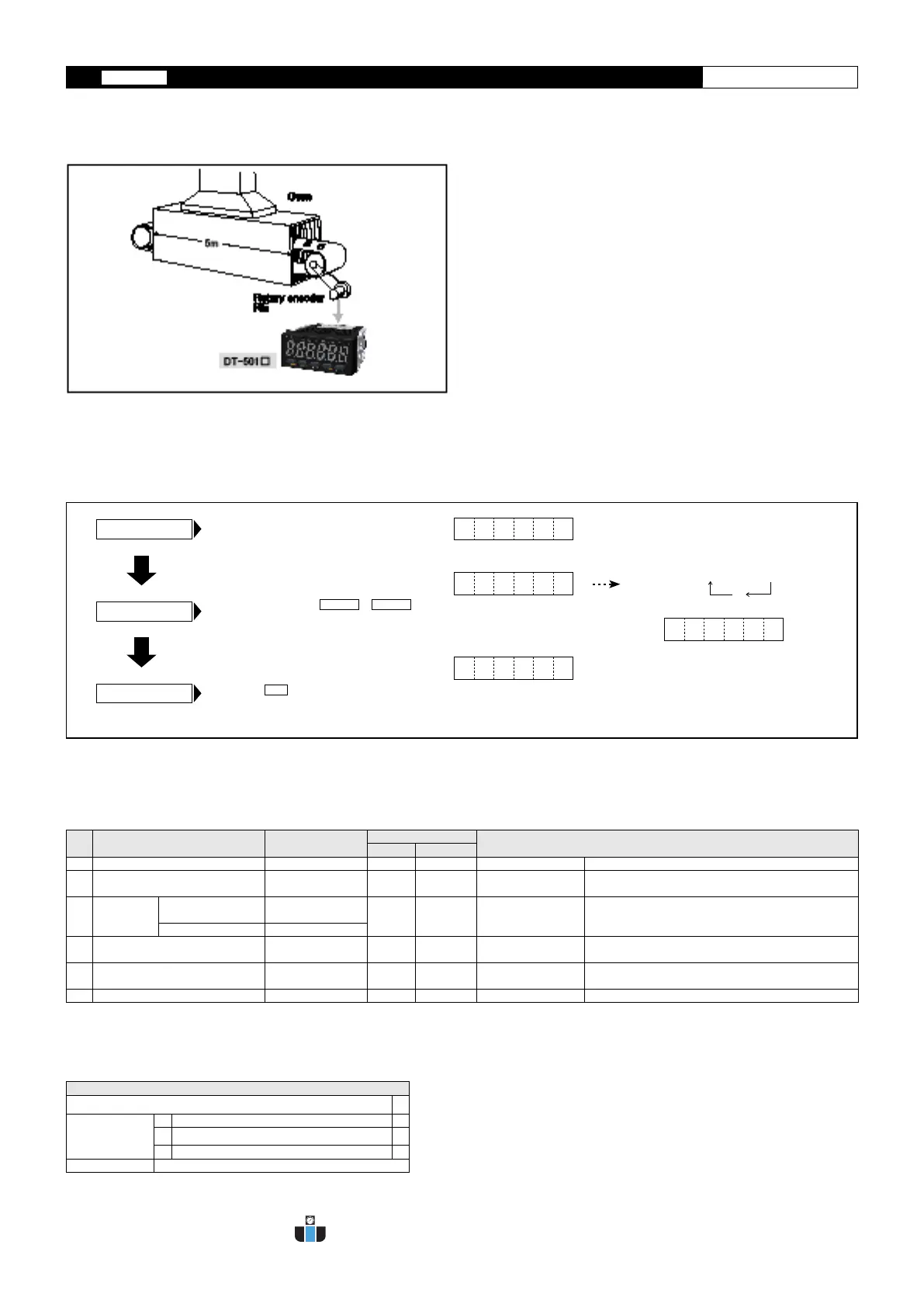

● Setting example (for the elapsed time display of oven)
Set each setting item for mode and parameter according to the following procedures.
(For the setting method of functions, refer to pages 16 and 17.)
As in the gure on the left, bread passes through the oven in a bread fac-
tory. The rotary encoder is attached to the motor of the conveyor belt. To
display the time at which the bread passes through the oven in DT-501, do
so under the following conditions:
[Conditions]
● Revolution speed of the rotary encoder
●
1200rpm(
rotary encoder
60p/r●
● Speed of the conveyor belt
● 2.8m/min
● Length of the oven
● 5m
● Passing time through the oven
●
5m÷2.8m/min ● 1.786 minutes ●Approx. 1 minute 47 seconds
• Set the mode 2 (elapsed timecounter mode).
• Parameter setting items in mode 2 (elapsed timecounter mode) and numerical values to be set according to the above example.
• Setting method
(1) Mode
(2) Parameter
Press and hold the SHIFT + MODE keys
for 5 seconds or more.
The main display shows the current set
mode No. after blinking.
* When you are setting for the rst time after the
purchase of this unit, mode 1(digital tachometer
mode) in the factory default setting is displayed.
Press the SET key.
The display goes to mode 2 (elapsed timecounter
mode
).
14.
When You Select Mode 2 (Elapsed Timecounter Mode) for Measurement
Setting Method
Elapsed timecounter mode
● Mode 2 (elapsed timecounter mode) Display value calculation equation
Mode 2 Display value calculation
External input pulse (Hz) A
Parameter setting
P1 Pulse count per revolution B
P2
Revolution speed in the detection section(rpm)
C
P3 Value to be displayed D
Equation ●1/(((A/B)
*
60)/C))
*
D
s
