Nidec Embraco CF01F - Connectors

2.3.3. Inverters with internal PFC inductor on the bottom side

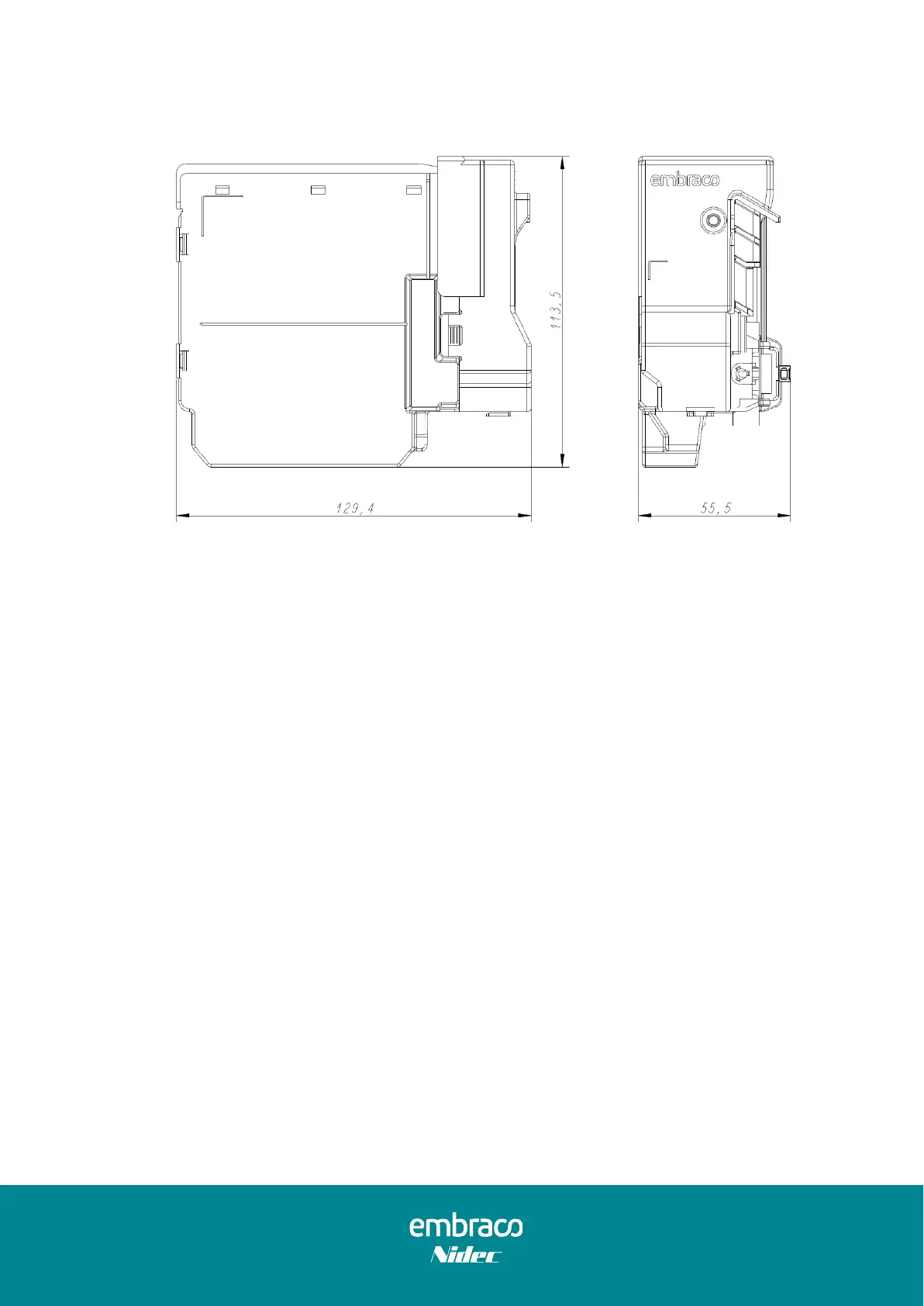

Figure 4 – CF01F2x and CF02F2x Inverters dimensions (mm)
2.4. Connectors
Figure 5 shows the connections available in this Inverter configuration. Figure 6 shows the
convention of terminal number on VH connectors. Connections specifications are presented
in Table 4.
