2.5. Cable path
The CF01F and CF02F Inverters have four cable paths, as shown in Figure 9. The maximum
recommended diameter for rigid insulation cables (H05V2V2-F type) is presented in Table 6.
In the case of flexible insulation type, larger diameters may be applied. Compliance with
clause 25.15 of IEC 60335-1 shall be observed with the final arrangement of cables.
Maximum cable
diameter [mm]
Table 6 – CF01F and CF02F cable paths specifications

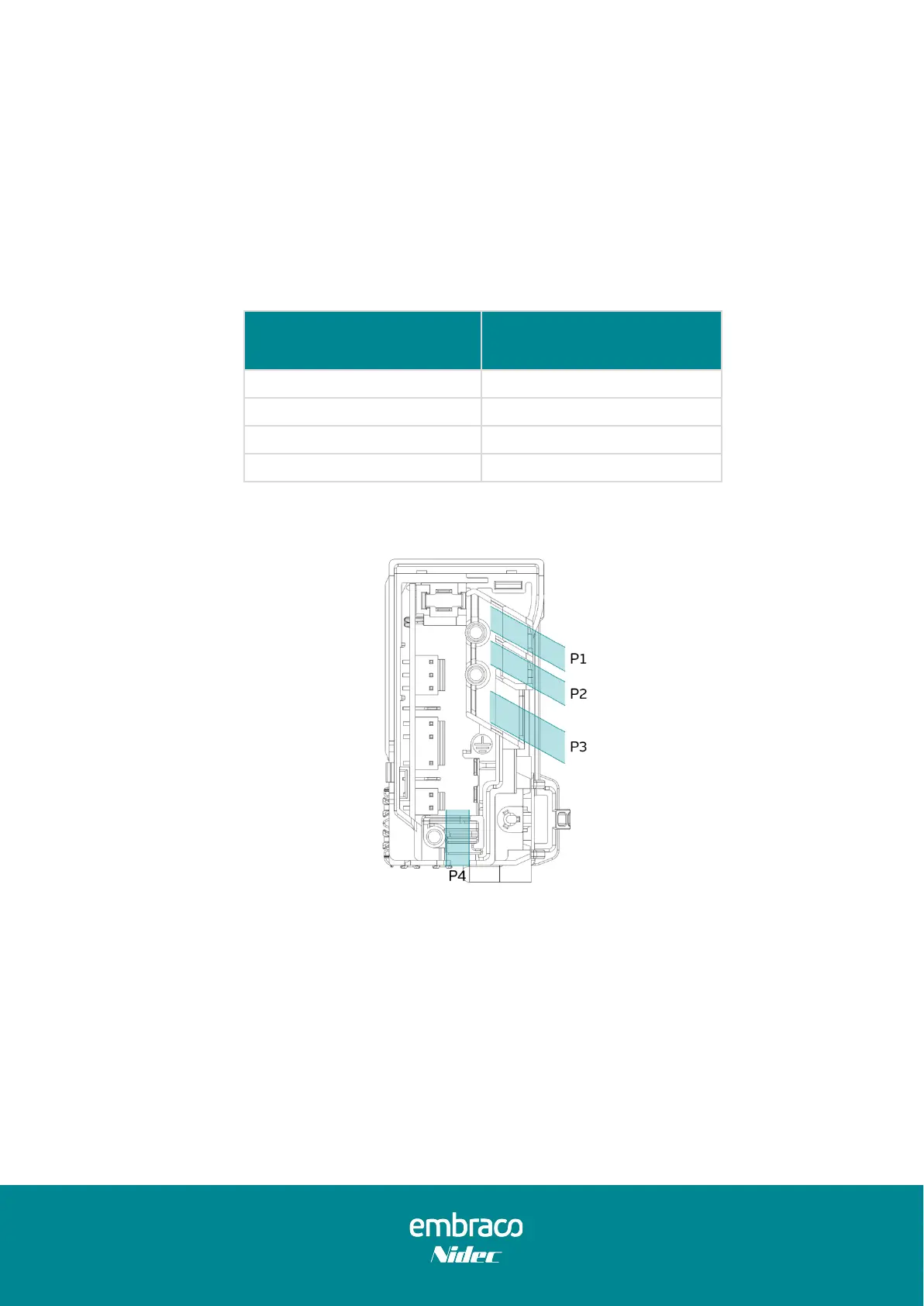

Figure 9 – CF01F and CF02F cable paths
If the system supply cord is connected directly to the CF01F or CF02F Inverters and this
cable has the 3 wires (line, neutral, and earth) with the same length, it is recommended to
use cable path P4 for this supply cord.
